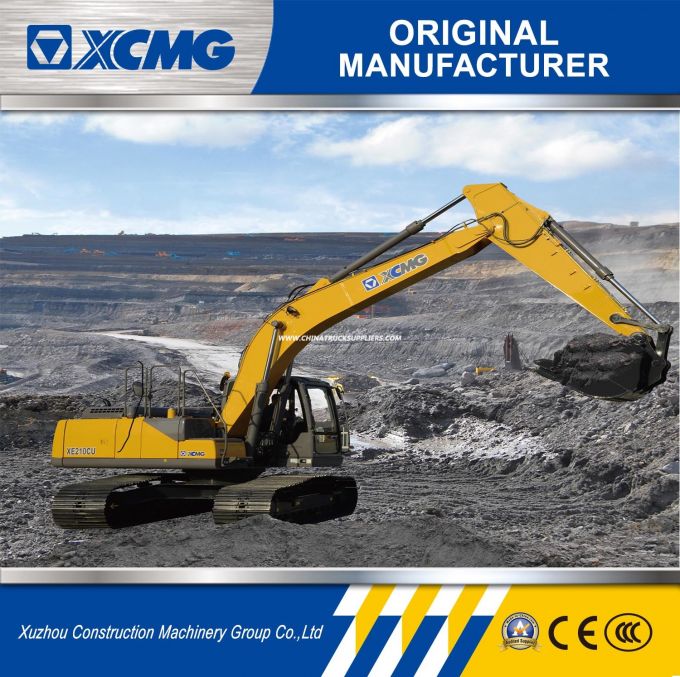

XCMG 21 Ton Crawler Excavator for Sale

Our company will offer you the high quality products with alow price, quick delivery,and professional after-sale service.
XCMG 21ton Crawler Excavatorfor sale
1. XCMG20ton crawler excavator
Rated Power:
106.5kW 143HP @1,950rpm
Operating Weight:
20,600kg 45,414lb
Bucket Capacity:
0.86m3 1.09yd3
2. XCMG20ton crawler excavator
Rated Power:
106.5kW 143HP @1,950rpm
Operating Weight:
21,500kg 47,399lb
Bucket Capacity:
0.93m3 1.22yd3
3. XCMG20ton crawler excavator
Rated Power:
116kW 155.6HP @2,000rpm
Operating Weight:
21,500kg 47,399lb

Advanced hydraulic system
Strong configuration
CE,ISO certification
In stock

Model	Unit	Parameter
Operation weight	kg	21140
Bucket capacity	m³	0.86
Engine
Model	/	QSB6.7
Rated power	kw/rpm	129/2200
Max.torque	N.m	799
Displacement	L	6.7
Fuel tank	L	305
Main performance
Rated flow	L/min	220
Working pressure	Mpa	32
Hydraulic tank	L	202
Rotating speed	r/min	13
Bucket digging force	kN	115
Arm crowd force	kN	91
Min.swing radius	mm	6500
Travel speed	km/h	9.5/31
Grade ability	°	35°
Hydraulic system
/Pump/Pilot pump	/	Tow ram pumps
Apperance size
AOverall length	mm	9135
BOverall width	mm	2552
COverall height	mm	3370
DGround clearance of counterweight	mm	1250
EMin.ground clearance	mm	340
FTail swing radius	mm	2820
GWheel base of crawler	mm	2850
HTumbler distance	mm	1890
Iwidth of chassis	mm	2495
JDistance bttween the front axle and center rotation	mm	1550
KHeight of engine hood	mm	2542
LMax.dozer cutting depth	mm	145
MMax.dozer lifting height	mm	479
(/)Dozer(width/height)	mm	2467/566
Working scope
AMax.digging radius	mm	9613
BMax.ground digging distance	mm	9380
CMax.digging height	mm	10528
DMax.dumping height	mm	7530
EMax.digging depth	mm	5755
F8Digging depth at the range of level 8feets	mm	5580
Standard configuration
Length of bucket arm	mm	2910
Bucket capacity	m³	0.86

Company profile
XCMG is aconstruction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world's most comprehensive construction machinery manufacturer and influential multinational company. In 2015, we rank No.1 in China and No. 5in global heavy equipment industry.XCMG's construction machinery covers an astonishing range of equipment, including cranes, earth-movingmachinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment.Our other businesses include finance, leasing, and remanufacturing.

At present, the power of my company's straight-arm crane is entirely from the hydraulic oil pressure, that is, through the high-pressure hydraulic oil to promote the cylinder piston reciprocating motion, or drive the hydraulic motor rotation makes the hydraulic winch and rotary mechanism rotation.

So, how do high-pressure hydraulic oil get? Each truck crane is equipped with ahydraulic pump when the vehicle chassis is matched, and the engine provides power for it. The chemical energy of the fuel can be converted into the crankshaft of the engine to rotate the mechanical energy, and then the gearbox gear is rotated, and then the power is transmitted to the hydraulic pump through the power transmission of the gearbox. Therefore, the hydraulic pump can continuously pressurize the hydraulic oil For the high-pressure hydraulic oil, so as to provide power for the crane to achieve the lifting of the goods.

Competitive Advantage
My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet avariety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.
My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of alarge deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.
The application of the sub-arm, sub-winch and vice-hook provides abasis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.
Our company will offer you the high quality products with alow price, quick delivery,and professional after-sale service.
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1pcs
