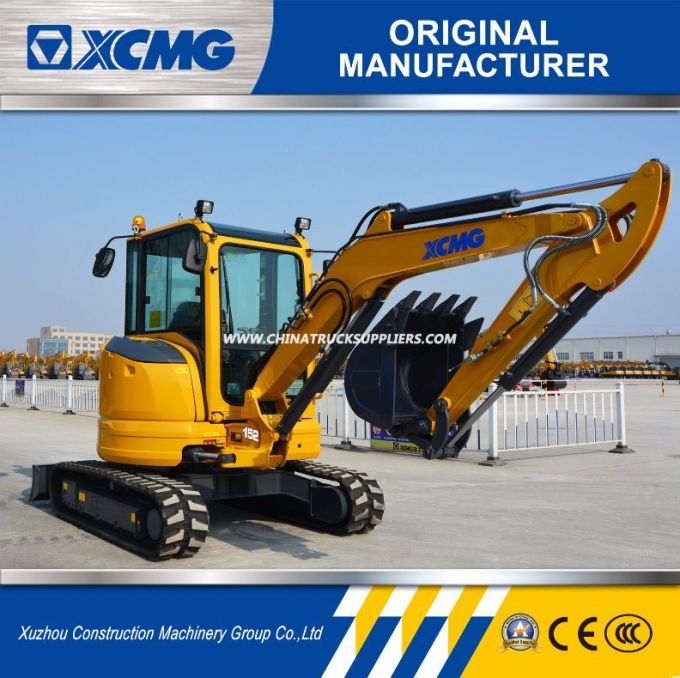

XCMG Link Belt Excavator Xe35u 4ton Crawler Excavator for Sale

Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.
XCMG link belt excavator Xe35u 4ton Crawler Excavator for sale
Rated Power:
18.2kW 24HP @2,200rpm
Operating Weight:
4,200kg 9,259lb
Bucket Capacity:
0.11m3 0.144yd3


XCMGwasbornin1943asanarsenalworkshopduringtheWarAgainstJapaneseAggressionandhasahistoryof72years.Thegroupwasincorporatedin1989,andhaskeptitsleadingpositioninChineseconstructionmachineryindustryfor26years.Ifyouwantknowmoreaboutus,youcanalsovisitourwebsite:http://www.xcmg.com/en-mena/.

AccordingtoKHL'sYellowTable,XCMGranksNo.8intheworldconstructionmachineryindustryin2014.AccordingtotherankofTop50SummitofWorldConstructionMachineryIndustry,XCMGranksNo.5intheworld.

Atpresent,XCMGisalargestate-ownedinternationalcorporationwiththemostcompleterangeofproductsandover30,000employeesoperatinginChina,America,Germany,Netherlands,Poland,India,BrazilandUzbekistan.

ThegoalofXCMGistobecomealeadingworld-classenterprisewithgreatvaluecreativity.

XCMG XE135B 13ton crawler excavator
Advanced hydraulic system
Strong configuration
CE,ISO certification
In stock

		Unit	Parameters
Model	Operating weight	Kg	13000
	Bucket capacity	M³	0.4~0.52
Engine	Engine model	/	ISUZU BB-4BG1TRP
	Direct injection	/	√
	4x strokes	/	√
	Water cooling	/	√
	Turbocharging	/	√
	Cylinders	/	4
	Output power of engine	KW/rpm	72.7/2200
	Max torque/speed	N.m/rpm	337.6/1600
	Displacement	L	4.329
Main performance	Travel speed	Km/h	5.16/3.03
	Slewing speed	r/min	12.3
	Gradient capability	°	≤35°
	Ground pressure	KPa	40
	Digging capacity of bucket	KN	85
	Digging capacity of bucket rod	KN	65
	Max traction force	KN	134
Hydraulic system	Main pump	/	Two plunger pumps
	Rated flow of main pump	L/min	2x123
	Pressure of main sadety valve	MPa	31.4/34.3
	Pressure of traveling system	MPa	34.3
	Pressure of swing system	MPa	25
	Pressure of pilot system	MPa	3.9
Oil volume	Fuel tank capacity	L	250
	Hydraulic tank capacity	L	130
	Engine oil volume	L	14

		Unit	Parameters
Overall Dimension	A Total length	mm	7770
	B Total width	mm	2512
	C Total height	mm	2880
	D Width of rotary table	mm	2512
	E Length of track	mm	3660
	F Total width of chassis	mm	2490
	G Width of track	mm	500
	H Wheelbase of track	mm	2910
	I Track gauge	mm	1990
	J Counterweight ground clearance	mm	964
	K Min ground clearance	mm	478
	L Min tail swing radius	mm	2294
Working Radius	A Max.digging height	mm	8641
	B Max unloading height	mm	6181
	C Max digging depth	mm	5538
	D 8-feet digging bepth under ground	mm	5287
	E Max vertical digging bepth	mm	4727
	F Max digging radius	mm	8296
	G Max swing radius	mm	2335
Stabdard Configuration	Boom length	mm	4600
	Length of bucket rod	mm	2510
	Bucket capacity	M³	0.52
Optional	Bucket capacity	M³	0.4

For more information on XCMG products, dealer services,
and industry solutions, visit us on the web at www.xcmg.com
Company profile
XCMG is aconstruction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world's most comprehensive construction machinery manufacturer and influential multinational company. In 2015, we rank No.1 in China and No. 5in global heavy equipment industry.XCMG's construction machinery covers an astonishing range of equipment, including cranes, earth-movingmachinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment.Our other businesses include finance, leasing, and remanufacturing.

At present, the power of my company's straight-arm crane is entirely from the hydraulic oil pressure, that is, through the high-pressure hydraulic oil to promote the cylinder piston reciprocating motion, or drive the hydraulic motor rotation makes the hydraulic winch and rotary mechanism rotation.

So, how do high-pressure hydraulic oil get? Each truck crane is equipped with ahydraulic pump when the vehicle chassis is matched, and the engine provides power for it. The chemical energy of the fuel can be converted into the crankshaft of the engine to rotate the mechanical energy, and then the gearbox gear is rotated, and then the power is transmitted to the hydraulic pump through the power transmission of the gearbox. Therefore, the hydraulic pump can continuously pressurize the hydraulic oil For the high-pressure hydraulic oil, so as to provide power for the crane to achieve the lifting of the goods.

Competitive Advantage
My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet avariety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.
My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of alarge deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.
The application of the sub-arm, sub-winch and vice-hook provides abasis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.
Ourcompanywillofferyouthehighqualityproductswithalowprice,quickdelivery,andprofessionalafter-saleservice.
FAQ
1: What kind terms ofpaymentcan be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: Whatcertificatesare available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about thedelivery time?
A: 30 days after receiving the deposit.
4: What about thewarranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about theMinimum Order Quantity?
A: The MOQ is 1 pcs
