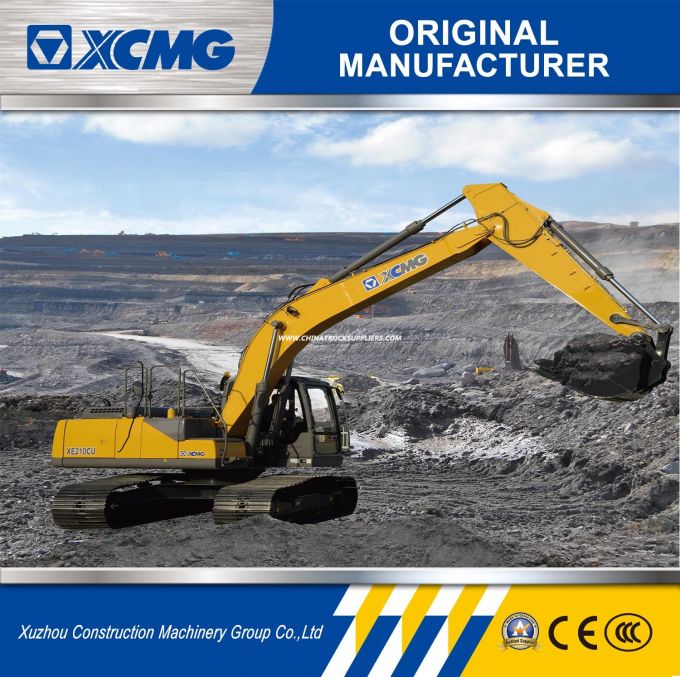

XCMG 21 Ton Crawler Excavator for Sale

Our company will offer you the high quality products with alow price, quick delivery,and professional after-sale service.
production
XCMG hydraulic excavator with CE cerfication

			XE210CU
Model		Metric unit
Operating weight		Kg	21650
Bucket capacity		m³	0.8~1.2
Engine	Model	/	Cummins QSB6.7
	Direct injection	/	√
	4 Four strokes	/	√
	Water cooling	/	√
	Turbo-charging	/	√
	Air cooled	/	√
	No.of cylinders	/	6
	Rated power/swing speed	kw/rpm	116/2000
	/Torque/swing speed	N.m	618/(1500r/min)
	Displacement	L	----
Main performance	Travel speed(H/L)	km/h	5.2/3.0
	Rotary speed	r/min	13.3
	Gradeability	°	≤35
	Ground pressure	kPa	45.5
		kN	149
	Bucket digging force
		kN	111
	Arm digging force
	Max. tractive force	kN	184
Hydraulic system	Main pump	/	2
	Rated flow	L/min	2×211
	Main safety valve pressure	MPa	34.3/37
	Pressure of traveling system	MPa	34.3
	Pressure of swing system	MPa	28
	Pressure of pilot system	MPa	3.9
Oil Capacity	Fuel tank capacity	L	380
	Hydraulic tank capacity	L	245
	Engine oil capacity	L	25
Appearance size	A Total length	mm	9550
	B Total width	mm	3190
	C Total height	mm	2985
	D Width of platform	mm	2710
	E Length of crawler	mm	4445
	F Total width of chassis	mm	3190
	G Width of crawler	mm	800
	H Wheel base of crawler	mm	3462
	I Track gauge	mm	2390
	J Ground clearance of counterweight	mm	1050
	K Min. ground clearance	mm	470
	L Min. rear-end swing radius	mm	2800
	M Height of crawler	mm
Working scope	A Max. digging height	mm	9640
	B Max. dumping height	mm	6800
	C Max. digging depth	mm	6655
	D 8Max. digging depth at the range of level 8feet	mm	6470
	E Max. vertical digging depth	mm	5690
	FMax. digging radius	mm	9925
	G Min. swing radius	mm	3530
Standard Congratulation	Boom Length	mm	5680
	Arm Length	mm	2910
	Bucket Capacity	m³	1.2
Optional congratulation	Boom Length	mm
	Arm Length	mm	2500
	Bucket Capacity	m³	0.93/0.9

Company profile
XCMG is aconstruction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world's most comprehensive construction machinery manufacturer and influential multinational company. In 2015, we rank No.1 in China and No. 5in global heavy equipment industry.XCMG's construction machinery covers an astonishing range of equipment, including cranes, earth-movingmachinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment.Our other businesses include finance, leasing, and remanufacturing.

At present, the power of my company's straight-arm crane is entirely from the hydraulic oil pressure, that is, through the high-pressure hydraulic oil to promote the cylinder piston reciprocating motion, or drive the hydraulic motor rotation makes the hydraulic winch and rotary mechanism rotation.

So, how do high-pressure hydraulic oil get? Each truck crane is equipped with ahydraulic pump when the vehicle chassis is matched, and the engine provides power for it. The chemical energy of the fuel can be converted into the crankshaft of the engine to rotate the mechanical energy, and then the gearbox gear is rotated, and then the power is transmitted to the hydraulic pump through the power transmission of the gearbox. Therefore, the hydraulic pump can continuously pressurize the hydraulic oil For the high-pressure hydraulic oil, so as to provide power for the crane to achieve the lifting of the goods.

Competitive Advantage
My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet avariety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.
My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of alarge deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.
The application of the sub-arm, sub-winch and vice-hook provides abasis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.
Our company will offer you the high quality products with alow price, quick delivery,and professional after-sale service.
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1pcs
