XCMG Official Xe215c 21ton Hydraulic Crawler Excavator for Sale

Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.

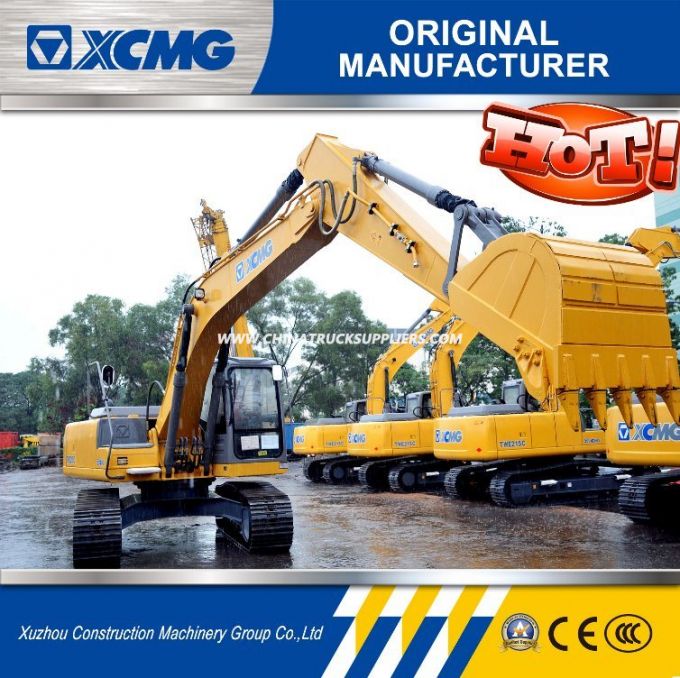

XCMG Official XE215C 21ton Hydraulic Crawler Excavator for sale


[Product Description]
XE215C Product Information
Compared with the previous generation of excavators, the complete XE215CA hydraulic excavator can have its fuel consumption reduced by about 10% and its working efficiency increased by more than 5%, with its earthwork working efficiency highest among its peers. Its reinforced chassis system can have the complete excavator achieve stronger adaptability to mining conditions and alonger service life; Its larger fuel tank volume increased by 15% compared with the previous generation can enable the machine to work much longer at one time, the brand-new cab subject to injection molding is configured with standard laminated glass featuring lower noise, its new air-conditioning system can have its air output increased by 23% to achieve abetter warming and cooling effect as well as more comfortable operation. This machine is mainly applicable to municipal construction, highway bridges, housing construction, road engineering, construction of water conservancy works, port construction, mines, and other earthwork construction at the advantage of sufficient flexibility, good controllability, low fuel consumption, high construction efficiency, powerful digging strength, comfortable driving environment, wide range of application and other outstanding characteristics.

1. Engine, an imported isuzu engine that provides powerful performance and low fuel consumption. The overall system is optimised to provide acomprehensive performance upgrader.
2. Quality driving expensive
3. Sturdy, efficient and durable

[Product Parameter]

		Unit	Parameters
Model	Operating weight	Kg	21450
	Bucket capacity	M³	0.8-10
Engine	Engine model	/	ISUZU BB-68G1TRP
	Direct injection	/	√
	4×Strokes	/	√
	Water cooling	/	√
	Turbocharging	/	√
	Cylinders	/	6
	Output power of engine	Kw/rpm	106.5/1950
	Max. Torque/engine	N. M/rpm	551/1600
	Displacement	L	6.494
Mian pertormance	Travel speed	Km/h	5.5/3.3
	Slewing speed	R/min	13.3
	Gradient capability	°	≤35°
	Ground pressure	KPa	45.5
	Digging capacity of tcuket	KN	138
	Digging capacity of tcuket rod	KN	103
	Max. Traction	KN	184
Hydraulic system	Main pump	/	Tow plunger pumps
	Rated flow of main pump	L/min	2×206
	Pressure of main safety valve	MPa	31.5/34.3
	Pressure of traveling system	MPa	34.3
	Pressure of swing system	MPa	28
	Pressure of pilot system	MPa	3.9
Oil volume	Fuel tank capacity	L	360
	Hydraulic tank capacity	L	220
	Engine oil volum	L	25
Apperance size	A Total length	mm	9525
	B Total width	mm	2990
	C Total heigth	mm	3000
	D Width of rotary table	mm	2710
	E Length of track	mm	4270
	F Total width of chassis	mm	2990
	G Width of track	mm	600
	H Wheelbase of track	mm	3462
	I Track gauge	mm	2390
	J Counterweight ground clearance	mm	4050
	K Min. Ground clearance	mm	470
	L Min. Tail swing radius	mm	2750
Working scope	A Max. Digging height	mm	9640
	B Max. Unloading height	mm	6800
	C Max. Digging depth	mm	6655
	D Digging depth at the range of 8feets horizontally	mm	6470
	E Max. Vertical digging depth	mm	5695
	F Max. Digging radius	mm	9925
	G Max. Swing height	mm	3530
Standard configuration	Boom length	mm	5680
	Length of bucket rod	mm	2910
	Bucket capacity	M³	0.93
Optional counfiguration	Length of bucket rod	mm	2530
	Bucket capacity	M³	1.0Earthmoving bucket
			0.8Rock bucket

Company profile
XCMG is aconstruction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world's most comprehensive construction machinery manufacturer and influential multinational company. In 2015, we rank No.1 in China and No. 5in global heavy equipment industry.XCMG's construction machinery covers an astonishing range of equipment, including cranes, earth-movingmachinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment.Our other businesses include finance, leasing, and remanufacturing.

At present, the power of my company's straight-arm crane is entirely from the hydraulic oil pressure, that is, through the high-pressure hydraulic oil to promote the cylinder piston reciprocating motion, or drive the hydraulic motor rotation makes the hydraulic winch and rotary mechanism rotation.

So, how do high-pressure hydraulic oil get? Each truck crane is equipped with ahydraulic pump when the vehicle chassis is matched, and the engine provides power for it. The chemical energy of the fuel can be converted into the crankshaft of the engine to rotate the mechanical energy, and then the gearbox gear is rotated, and then the power is transmitted to the hydraulic pump through the power transmission of the gearbox. Therefore, the hydraulic pump can continuously pressurize the hydraulic oil For the high-pressure hydraulic oil, so as to provide power for the crane to achieve the lifting of the goods.

Competitive Advantage
My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet avariety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.
My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of alarge deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.
The application of the sub-arm, sub-winch and vice-hook provides abasis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.
Ourcompanywillofferyouthehighqualityproductswithalowprice,quickdelivery,andprofessionalafter-saleservice.
FAQ
1: What kind terms ofpaymentcan be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: Whatcertificatesare available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about thedelivery time?
A: 30 days after receiving the deposit.
4: What about thewarranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about theMinimum Order Quantity?
A: The MOQ is 1 pcs
