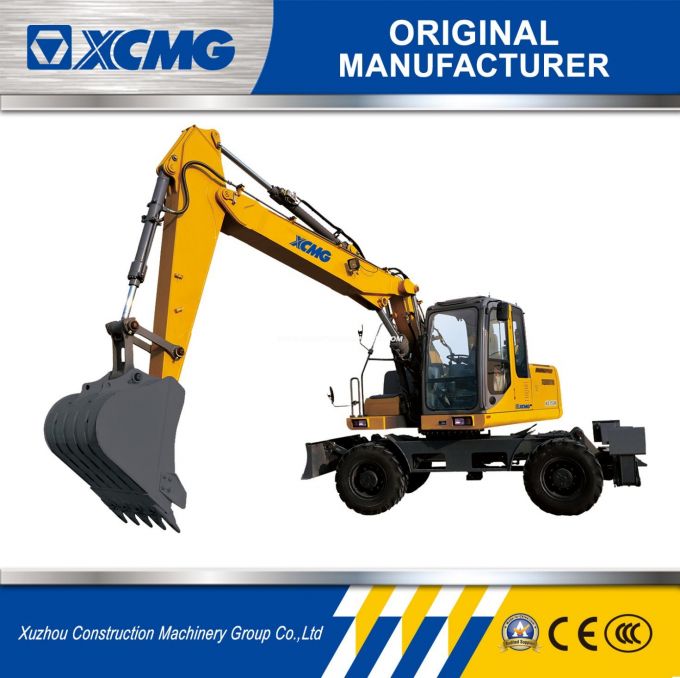

XCMG 15ton Wheel Excavator Xe150W with Low Price for Sale

production
XCMG XE150W 15ton hydraulic wheelexcavator with good price

		Unit	Parameters
Operating weight		Kg	15318
Bucket capacity		M³	0.58
	Engine model	/	QSB4.5
Engine	Output power of engine	Kw/r/min	104/2000
	Max.torque/engine	N.m	586
	Displacement	L	4.5
	Fuel tank capacity	L	250
	Rated flow of main pump	L/min	2x160
	Pressure of main safety valve	Mpa	31.4/34.3
performance parameter	Hydraulic tank capacity	L	135
	Slewing speed	r/min	13.7
	Digging capacity of tcuket	KN	60
	Digging capacity of tcuket rod	KN	65
	Min.turning radius	mm	6500
	Travel speed	Km/h
	Gradient capability	%	70
	A Total length	mm	6482
	B Total width	mm	2552
	C Total heigth	mm	3158
Working scope	Counterweight ground clearance	mm	1230
	Min.ground clearance	mm	359
	Min.tail swing radius	mm	2300
	Wheelbase	mm	2800
	Track gauge	mm	1920
	Total width of chassis	mm	2495
	Distance between front axle and turning center	mm	1700
	Hood height	mm	2430
	The maximum digging depth of dozer	mm	112
	Dozer (width /height)	mm	2495x564
	A Max.digging height	mm	8296
Working scope	B Max.unloading height	mm	8085
	C Max.digging depth	mm	9150
	D Digging depth at the range of 8feets horizontally	mm	6684
	E Max.vertical digging depth	mm	5040
	F Max.digging radius	mm	4825
	G Max.swing height	mm	515

Company profile
XCMG is aconstruction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world's most comprehensive construction machinery manufacturer and influential multinational company. In 2015, we rank No.1 in China and No. 5in global heavy equipment industry.
XCMG's construction machinery covers an astonishing range of equipment, including cranes, earth-movingmachinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment.Our other businesses include finance, leasing, and remanufacturing.

At present, the power of my company's straight-arm crane is entirely from the hydraulic oil pressure, that is, through the high-pressure hydraulic oil to promote the cylinder piston reciprocating motion, or drive the hydraulic motor rotation makes the hydraulic winch and rotary mechanism rotation.

So, how do high-pressure hydraulic oil get? Each truck crane is equipped with ahydraulic pump when the vehicle chassis is matched, and the engine provides power for it. The chemical energy of the fuel can be converted into the crankshaft of the engine to rotate the mechanical energy, and then the gearbox gear is rotated, and then the power is transmitted to the hydraulic pump through the power transmission of the gearbox. Therefore, the hydraulic pump can continuously pressurize the hydraulic oil For the high-pressure hydraulic oil, so as to provide power for the crane to achieve the lifting of the goods.

Competitive Advantage
My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet avariety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.
My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of alarge deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.
The application of the sub-arm, sub-winch and vice-hook provides abasis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.
