XCMG 25.5 Ton Crawler Excavator with Good Price for Sale

production

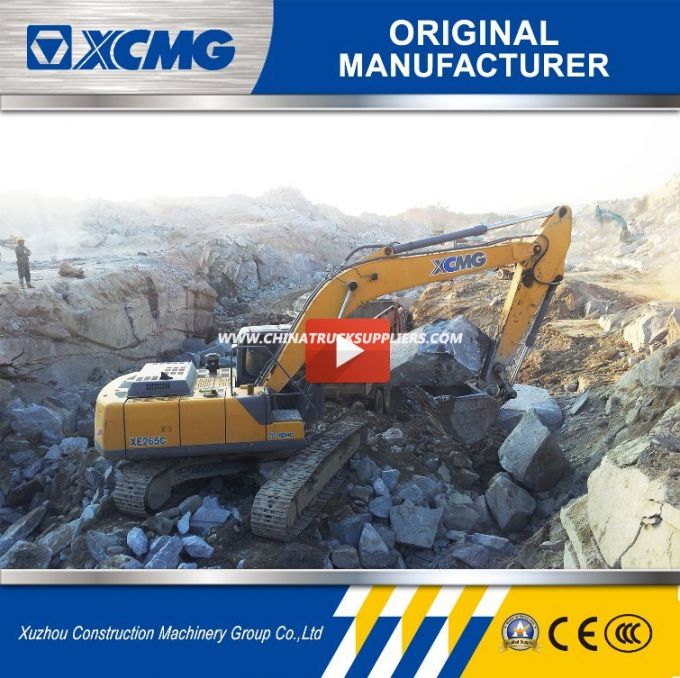

XCMG XE265C 25.5ton hydraulic excavator with CE cerfication

		Unit	Parameters
Model	Operating weight	kg	25500
	Bucket capacity	m³	1.05-1.25
Engine	Engine model	/	ISUZU CC-68G1TRP-05
	Direct injection	/	√
	4×strokes	/	√
	Water cooling	/	√
	Turbocharging	/	√
	A/A Air-air intercool	/	√
	Cylinders	/	6
	Output power of engine	Kw/rpm	135.2/2150
	Max.torque/engine	N.m/rpm	637/1800
	Displacement	L	6.494
Mian pertormance	Travel speed	km/h	5.9/4.0
	Slewing speed	r/min	11.3
	Gradient capability	°	≤35°
	Ground pressure	kPa	50.1
	Digging capacity of tcuket	kN	179
	Digging capacity of tcuket rod	kN	125
	Max.traction	kN	194
Hydraulic system	Main pump	/	Tow plunger pumps
	Rated flow of main pump	L/min	2×256
	Pressure of main safety valve	Mpa	34.3/37
	Pressure of traveling system	Mpa	34.3
	Pressure of swing system	Mpa	28
	Pressure of pilot system	Mpa	3.9
Oil volume	Fuel tank capacity	L	400
	Hydraulic tank capacity	L	240
	Engine oil volum	L	25
Apperance size	A Total length	mm	10160
	B Total width	mm	3190
	C Total heigth	mm	3000
	D Width of rotary table	mm	2830
	E Length of track	mm	4640
	F Total width of chassis	mm	3190
	G Width of track	mm	600
	H Wheelbase of track	mm	3742
	I Track gauge	mm	2590
	J Counterweight ground clearance	mm	1100
	K Min.ground clearance	mm	485(Track teeth not including)
	L Min.tail swing radius	mm	2985
Working scope	A Max.digging height	mm	9662
	B Max.unloading height	mm	6810
	C Max.digging depth	mm	6895
	D Digging depth at the range of 8feets horizontally	mm	6750
	E Max.vertical digging depth	mm	5480
	F Max.digging radius	mm	10240
	G Max.swing height	mm	3850
Standard configuration	Boom length	mm	6000
	Length of bucket rod	mm	2960
	Bucket capacity	m³	1.2
Optional counfiguration	Length of bucket rod	mm	2500
	Bucket capacity	m³	1.25Rock bucket
			1.05Earthmovingbucket

Company profile
XCMG is aconstruction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world's most comprehensive construction machinery manufacturer and influential multinational company. In 2015, we rank No.1 in China and No. 5in global heavy equipment industry.
XCMG's construction machinery covers an astonishing range of equipment, including cranes, earth-movingmachinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment.Our other businesses include finance, leasing, and remanufacturing.

At present, the power of my company's straight-arm crane is entirely from the hydraulic oil pressure, that is, through the high-pressure hydraulic oil to promote the cylinder piston reciprocating motion, or drive the hydraulic motor rotation makes the hydraulic winch and rotary mechanism rotation.

So, how do high-pressure hydraulic oil get? Each truck crane is equipped with ahydraulic pump when the vehicle chassis is matched, and the engine provides power for it. The chemical energy of the fuel can be converted into the crankshaft of the engine to rotate the mechanical energy, and then the gearbox gear is rotated, and then the power is transmitted to the hydraulic pump through the power transmission of the gearbox. Therefore, the hydraulic pump can continuously pressurize the hydraulic oil For the high-pressure hydraulic oil, so as to provide power for the crane to achieve the lifting of the goods.

Competitive Advantage
My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet avariety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.
My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of alarge deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.
The application of the sub-arm, sub-winch and vice-hook provides abasis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.
