XCMG 46 Ton Carwler Excavator for Sale

Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.

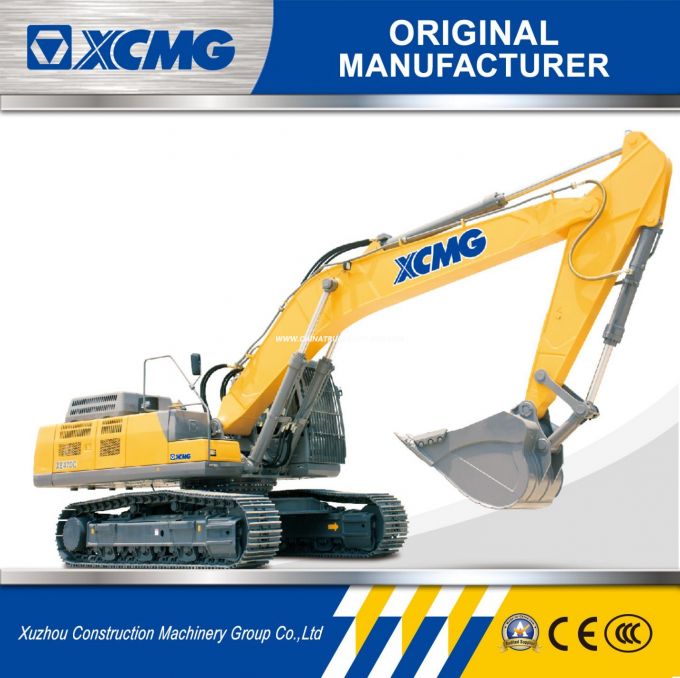

XCMG XE470C 46ton hydraulic excavator with CE cerfication

		Unit	Parameters
Model	Operating weight	kg	46100
	Bucket capacity	m³	2.1-2.5
Engine	Engine model	/	Cummins QSM11
	Direct injection	/	√
	4×Strokes	/	√
	Water cooling	/	√
	Turbocharging	/	√
	A/A Air-air intercool	/	√
	Cylinders	/	6
	Output power of engine	Kw/rpm	250/2000
	Max.torque/engine	N.m/rpm	1790/1400
	Displacement	L	11
Mian pertormance	Travel speed	km/h	5.4/3.2
	Slewing speed	r/min	9
	Gradient capability	°	≤30°
	Ground pressure	kPa	82.7
	Digging capacity of tcuket	kN	284
	Digging capacity of tcuket rod	kN	236
	Max.traction	kN	338
Hydraulic system	Main pump	/	Tow plunger pumps
	Rated flow of main pump	L/min	2×360
	Pressure of main safety valve	Mpa	31.4/34.3
	Pressure of traveling system	Mpa	34.3
	Pressure of swing system	Mpa	28.4
	Pressure of pilot system	Mpa	3.9
Oil volume	Fuel tank capacity	L	650
	Hydraulic tank capacity	L	360
	Engine oil volum	L	38
Apperance size	A Total length	mm	12032
	B Total width	mm	3580
	C Total heigth	mm	3842
	D Width of rotary table	mm	2950
	E Length of track	mm	5220
	F Total width of chassis	mm	3580
	G Width of track	mm	600
	H Wheelbase of track	mm	4180
	I Track gauge	mm	2392/2890
	J Counterweight ground clearance	mm	1360
	K Min.ground clearance	mm	703(Tooth height not included)
	L Min.tail swing radius	mm	3665
Working scope	A Max.digging height	mm	10675
	B Max.unloading height	mm	7409
	C Max.digging depth	mm	7337
	D Digging depth at the range of 8feets horizontally	mm	7177
	E Max.vertical digging depth	mm	5225
	F Max.digging radius	mm	11631
	G Max.swing height	mm	4909
Standard configuration	Boom length	mm	7060
	Length of bucket rod	mm	2900
	Bucket capacity	m³	2.2Rock bucket
Optional counfiguration	Boom length	mm	7060
	Length of bucket rod	mm	3380/2500
	Bucket capacity	m³	2.1
			2.3Rock bucket
			2.5Earthmoving bucket

Company profile
XCMG is aconstruction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world's most comprehensive construction machinery manufacturer and influential multinational company. In 2015, we rank No.1 in China and No. 5in global heavy equipment industry.XCMG's construction machinery covers an astonishing range of equipment, including cranes, earth-movingmachinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment.Our other businesses include finance, leasing, and remanufacturing.

At present, the power of my company's straight-arm crane is entirely from the hydraulic oil pressure, that is, through the high-pressure hydraulic oil to promote the cylinder piston reciprocating motion, or drive the hydraulic motor rotation makes the hydraulic winch and rotary mechanism rotation.

So, how do high-pressure hydraulic oil get? Each truck crane is equipped with ahydraulic pump when the vehicle chassis is matched, and the engine provides power for it. The chemical energy of the fuel can be converted into the crankshaft of the engine to rotate the mechanical energy, and then the gearbox gear is rotated, and then the power is transmitted to the hydraulic pump through the power transmission of the gearbox. Therefore, the hydraulic pump can continuously pressurize the hydraulic oil For the high-pressure hydraulic oil, so as to provide power for the crane to achieve the lifting of the goods.

Competitive Advantage
My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet avariety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.
My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of alarge deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.
The application of the sub-arm, sub-winch and vice-hook provides abasis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.
Ourcompanywillofferyouthehighqualityproductswithalowprice,quickdelivery,andprofessionalafter-saleservice.
FAQ
1: What kind terms ofpaymentcan be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: Whatcertificatesare available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about thedelivery time?
A: 30 days after receiving the deposit.
4: What about thewarranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about theMinimum Order Quantity?
A: The MOQ is 1 pcs
