XCMG Xe1300c 130ton Hydraulic Crawler Excavator

Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.
XCMG XE1300C 130ton hydraulic excavator (more models for sale)

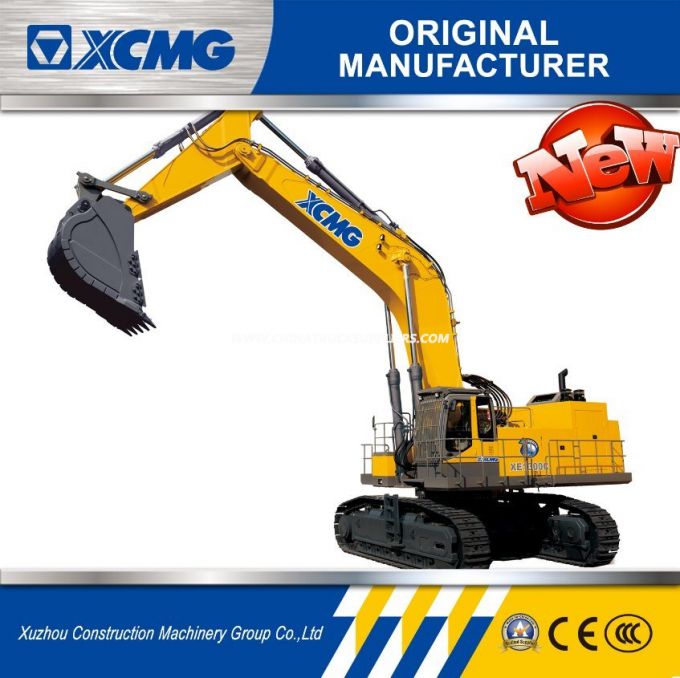

[Product Picture]
Overall Dimensions & Working Range
Parameters

Model Unit Technical parameters Operating weight kg 125000 Standard bucket capacity m3 5 Engine Engine model / QSK23-C760 Direct injection / ü Four-stroke / ü Water cooling / ü Turbocharged / ü Air to air intercooler / ü No. of cylinders / 6 Engine output power kW/rpm 567/1800 Max. torque/speed N.m/rpm 3468/1350 Displacement L 23.15 Main performance Travel speed km/h 2.7/1.6 Slewing speed r/min 4.8 Gradeability ° 35° Ground pressure kPa 156 Bucket digging force kN 477 Stick digging force kN 426 Max. traction force kN 960 Hydraulic system Main pump / 3 Rated flow of main pump L/min 504 Pressure of primary relief valve MPa 31.4 Pressure of traveling system MPa 35.3 Pressure of slewing system MPa 28.5 Pressure of pilot system MPa 3.9 Oil capacity Fuel tank capacity L 1485 Hydraulic tank capacity L 1150 Engine oil capacity L 75

Model Unit Technical parameters Overall dimensions A Overall length mm 15950 B Crawler length mm 6500 C Crawler wheelbase mm 5050 D Ground clearance of counterweight mm 1885 E Min. tail slewing radius mm 4740 F Overall height mm 6120 G Overall width mm 5585 H Track gauge mm 4000 I Crawler width mm 700 J Min. ground clearance mm 740 K Crawler height mm 1670 Working range A Max. digging height mm 13400 B Max. dumping height mm 8790 C Max. digging depth mm 8680 D 8-inch horizontal digging depth mm 8560 E Max. vertical digging depth mm 7230 F Max. digging radius mm 15340 G Max. digging radius (on the ground) mm 15000 Standard Boom length mm 9100 Stick length mm 3400 Bucket capacity m3 5

Company profile
XCMG is aconstruction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world's most comprehensive construction machinery manufacturer and influential multinational company. In 2015, we rank No.1 in China and No. 5in global heavy equipment industry.XCMG's construction machinery covers an astonishing range of equipment, including cranes, earth-movingmachinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment.Our other businesses include finance, leasing, and remanufacturing.

At present, the power of my company's straight-arm crane is entirely from the hydraulic oil pressure, that is, through the high-pressure hydraulic oil to promote the cylinder piston reciprocating motion, or drive the hydraulic motor rotation makes the hydraulic winch and rotary mechanism rotation.

So, how do high-pressure hydraulic oil get? Each truck crane is equipped with ahydraulic pump when the vehicle chassis is matched, and the engine provides power for it. The chemical energy of the fuel can be converted into the crankshaft of the engine to rotate the mechanical energy, and then the gearbox gear is rotated, and then the power is transmitted to the hydraulic pump through the power transmission of the gearbox. Therefore, the hydraulic pump can continuously pressurize the hydraulic oil For the high-pressure hydraulic oil, so as to provide power for the crane to achieve the lifting of the goods.

Competitive Advantage
My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet avariety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.
My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of alarge deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.
The application of the sub-arm, sub-winch and vice-hook provides abasis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.
