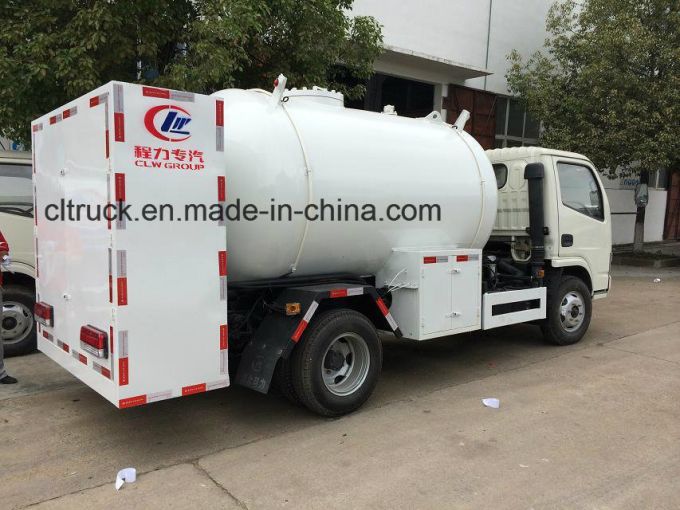

LPG Dispenser Truck with LPG Refilling System Filling Vehicle

LPG Dispenser Truck with LPG Refilling System filling vehicle
Thelpg gas tank truckis also calledlpg road Tanker truck,lpg transportation truck,lpg tanker truck,bulk LPG Truck, etc.

1. LPG Tanker Truck with Refilling System, including refilling gun, refilling counter.
2. Professional LPG Tanker manufacturer with more 10 years manufacturing experience
3. High Quality LPG Tanker with Competitive Factory Price.
4.with front disc brake,speed limiting device,ABS,high safety
5.11mm Q345R tank

Technical Parameters

	Parameters
Overall Dimension	5900x2045x2600 mm
Gross Vehicle Weight	7495 kg
Curb Weight	4990 kg
Loading Weight	2310 Kg
Wheel base	3300 mm
Front/rear Overhang	1115/1485 mm
Front/rear Tread	1586/1530 mm
Approach/Departure Angle	18/12 degree
Engine	Dongfeng Chaoyang Engine CY4102-C3F Diesel Engine, Four Stroke, 4 Cylinder in line.
Engine horsepower	95 HP Euro III
Displacement	3.856 L(Diesel)
Full loading Fuel Consumption Rate	210 g/kW.h
Max Driving Speed	90 km/h
Gear Box	Dongfeng Brand Manual Transmission
Cabin	Left Hand Driving, 3 Passengers Allowed
Tire	7.00-16 (7 pieces)
Tank Capacity	5,500 Liters (DN3059×1620mm)
Filling Content	Liquefied Petroleum Gas (Propane)
Tank Material	Q345R high tension steel, 8mm Thick Tank Body.
Standard Equipment	Safety Valve, Level Gauge, Pressure Gauge, Thermometer, Emergency Shut-off Valve, Tool Boxes, Anti-static Grounding Tape. 1 Filling Machine, 1 Filling Gun with Black Rubber Tube.
Specification	Designed Pressure: 1.66Mpa Filling Ratio: 0.42 kg/L Working Temperature: under 50 centi-degree Corrosion Allowance: 1mm

about US
Chengli special automobile Co., Ltd is anautomobile manufacturer, the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade. Besides, the company has established a good relationship with domestic and overseascustomersfromAfrica, South America, theMiddle Eastand South Asia, winning a universal recognition and trust from the oversea customers and contributing to China trucks' entrance to the international market.
1.Quality control: our company truck pass ISO,CCC,BVcertification.
2.Design capacity :Our factory have over200technicians and designers.
3. Exhibition: our factoryattendCanton Fairevery year.
4.Export market: Africa, Southeast Asia, Central Asia, South America , Oceania and so on.
5.Our company cooperate with famous chassis manufacturers, such asDONGFENG,FAW, SHINOTRUK,IVECO, FOTON,and etc.

ChengliSpecialautomobileCo.,Ltdalsoprovideproductsasfollows:

1.LPGTankTruckTrailer/FuelTankerTruck
2.Watertruck/WaterTankTruck/WaterSprinklerTruck/WaterTanker
3.Truckwithcrane/Truckmountedcrane
4.DumpTruck/TipperTruck/SideTipper/EndTipper
5.FireFightingTruck/FireTruck/FireVehicle
6.ConcreteMixerTruck
7.Vantruck/Blastingequipmenttransporter/Refrigeratedtruck
8.Fecalsuctiontruck/Sewagesuctiontruck,
9.CementPowderTanktruck/Bulkcementtruck
10.High-altitudeoperationtruck

Ourclients


Payment andPackaging &Shipping
1.30% deposit after order /confirm/iation, 70% balance should be paid before delivery.All byT/T, L/C.
2.Delivery time:30 working daysafter payment is received.
3. By RORO or Bulk ship.
