XCMG 75t Construction Mobile Truck Crane with Ce (Xct75L5)

  • XCMG 75t Construction Mobile Truck Crane with Ce (Xct75L5)
  • USD 160000.40 /Unit
  • 1 Unit
  • 35 Unit
  • 8 days
Product Description
Our company will offer you the high quality products with alow price, quick delivery, and professional after-sale service.
XCMG 75t Construction Mobile Truck Crane with CE(Xct75L5)
XCMG 75t Co<em></em>nstruction Mobile Truck Crane with Ce (Xct75L5)
Technical Specifications
Main Technical Data Table of XCT75L5 in Travel configuration Company profile
XCMG is aconstruction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world's most comprehensive construction machinery manufacturer and influential multinational company. In 2015, we rank No. 1in China and No. 5in global heavy equipment industry. XCMG's construction machinery covers an astonishing range of equipment, including cranes, earth-moving machinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment. Our other businesses include finance, leasing, and remanufacturing.
At present, the power of my company's straight-arm crane is entirely from the hydraulic oil pressure, that is, through the high-pressure hydraulic oil to promote the cylinder piston reciprocating motion, or drive the hydraulic motor rotation makes the hydraulic winch and rotary mechanism rotation.
So, how do high-pressure hydraulic oil get? Each truck crane is equipped with ahydraulic pump when the vehicle chassis is matched, and the engine provides power for it. The chemical energy of the fuel can be converted into the crankshaft of the engine to rotate the mechanical energy, and then the gearbox gear is rotated, and then the power is transmitted to the hydraulic pump through the power transmission of the gearbox. Therefore, the hydraulic pump can continuously pressurize the hydraulic oil For the high-pressure hydraulic oil, so as to provide power for the crane to achieve the lifting of the goods.
CategoryItemUnitParameter





Dimensions
Overall lengthmm14700
Overall widthmm2750
Overall heightmm3910
Wheel basemm1470+3950+1350
Trackmm2314/2049
Front overhangmm3140
Rear overhangmm2880

Weight
Total weight in travelkg46000

Axle load
1st and 2nd axlemm10000
3rd and 4th axlemm13000

Power
Engine modelMC11.35-30
Engine max.net powerkw/(r/min)260/1900
Engine max. torqueN.m/(r/min)1750/1100-1400









Travel
Travel speedMax. travel speedkm/h90
Min. travel speedkm/h2.5~3

Turning diameter
Min. turning diameterm24
Min. turning diameter at boom tipm29.9
Min. ground clearancemm305
Approach angle°16
Departure angle°13.5
Braking distance(at 30 km/h )m≤10
Max. grade ability%45
Oil consumption per 100 kmL40
Exterior noise leveldB(A)≤88
Noise level at seateddB(A)≤90
XCMG 75t Co<em></em>nstruction Mobile Truck Crane with Ce (Xct75L5)
XCMG 75t Co<em></em>nstruction Mobile Truck Crane with Ce (Xct75L5)
XCMG 75t Co<em></em>nstruction Mobile Truck Crane with Ce (Xct75L5)
XCMG 75t Co<em></em>nstruction Mobile Truck Crane with Ce (Xct75L5)
XCMG 75t Co<em></em>nstruction Mobile Truck Crane with Ce (Xct75L5)
Competitive Advantage
My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet avariety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.
My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of alarge deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.
The application of the sub-arm, sub-winch and vice-hook provides abasis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.


Contact us

Mr Fang +86 187 9621 1467
Mr Ding +86 138 5200 7271
Mr zou +86 152 6202 3988
Product Images

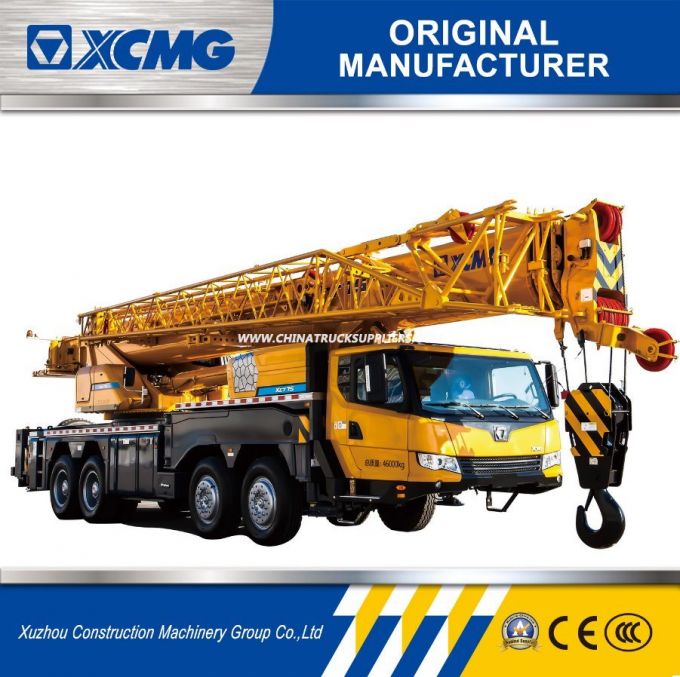

XCMG 75t Construction Mobile Truck Crane with Ce (Xct75L5) Images 1
