XCMG New Mobile Lifting Equipment Xgc75 Jib Crane for Sale

Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.

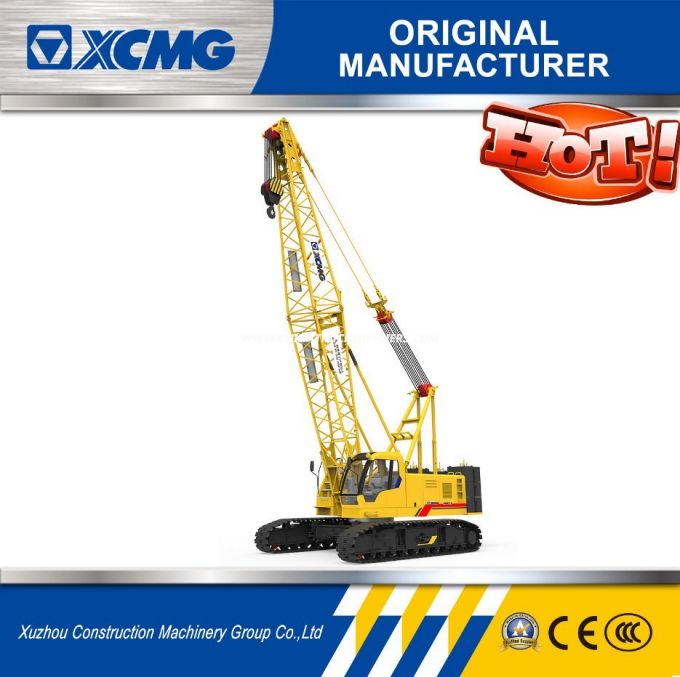

XCMG New mobile lifting equipment XGC75 jib crane for sale

Category	Item		Parameters
Dimension parameters	Overall length	mm	14463
	Overall width (extension/retraction)	mm	5060/3400
	Overall height	mm	3500
	Center-to-center distance of drive wheel and driven wheel	mm	5525
	Width of track shoe	mm	760
Weight parameters	Total mass in traveling state	kg	79888
Travel parameters	No-load traveling speed	km/h	2.5
	Full-load traveling speed	km/h	1.5
	Minimum ground clearance	mm	480
	Maximum gradeability	%	40
	Ground pressure	MPa	0.096
	Car noise	dB(A)	80
Power parameters	Engine model	-	WP7.270 Weichai WP7.270
	Rated power of engine	kW	199
	Rated speed of engine	r/min	2000
	Engine displacement standard	-	National off-road Tier 3
Capacity parameters	Capacity of hydraulic tank	L	1000
	Capacity of fuel tank	L	550
Main performance parameters	Rated maximum total lifting capacity	t	75
	Rated minimum range	m	3
	Turning radius on the tail of rotary table	mm	4436
	Maximum lifting moment	base boom	2764kN·m
		The longest main boom	1443kN·m
	Lifting height	base boom	11.6m
		The longest main boom	46m
		The longest main boom + auxiliary boom	62.1m
	Length of boom	base boom	12.2m
		The longest main boom	47m
		The longest main boom + auxiliary boom	64.5m
	Setting angle of auxiliary boom	°	0°,15°,30°
Working speed	Main boom elevating time	s	60
	Full-extension time of main boom	s	110
	Maximum slewing speed	r/min	2.0
	Lifting speed (No-load four layer)	Main hoisting mechanism	140m/min
		Auxiliary hoisting mechanism	90m/min

Company profile
XCMG is aconstruction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world's most comprehensive construction machinery manufacturer and influential multinational company. In 2015, we rank No.1 in China and No. 5in global heavy equipment industry.XCMG's construction machinery covers an astonishing range of equipment, including cranes, earth-movingmachinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment.Our other businesses include finance, leasing, and remanufacturing.

At present, the power of my company's straight-arm crane is entirely from the hydraulic oil pressure, that is, through the high-pressure hydraulic oil to promote the cylinder piston reciprocating motion, or drive the hydraulic motor rotation makes the hydraulic winch and rotary mechanism rotation.

So, how do high-pressure hydraulic oil get? Each truck crane is equipped with ahydraulic pump when the vehicle chassis is matched, and the engine provides power for it. The chemical energy of the fuel can be converted into the crankshaft of the engine to rotate the mechanical energy, and then the gearbox gear is rotated, and then the power is transmitted to the hydraulic pump through the power transmission of the gearbox. Therefore, the hydraulic pump can continuously pressurize the hydraulic oil For the high-pressure hydraulic oil, so as to provide power for the crane to achieve the lifting of the goods.

Competitive Advantage
My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet avariety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.
My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of alarge deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.
The application of the sub-arm, sub-winch and vice-hook provides abasis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.
Ourcompanywillofferyouthehighqualityproductswithalowprice,quickdelivery,andprofessionalafter-saleservice.
FAQ
1: What kind terms ofpaymentcan be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: Whatcertificatesare available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about thedelivery time?
A: 30 days after receiving the deposit.
4: What about thewarranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about theMinimum Order Quantity?
A: The MOQ is 1 pcs
