XCMG Official Manufacturer 25 Ton New Mobile Truck Crane

Our company will offer you the high quality products
with a low price, quick delivery,and professional
after-sale service.

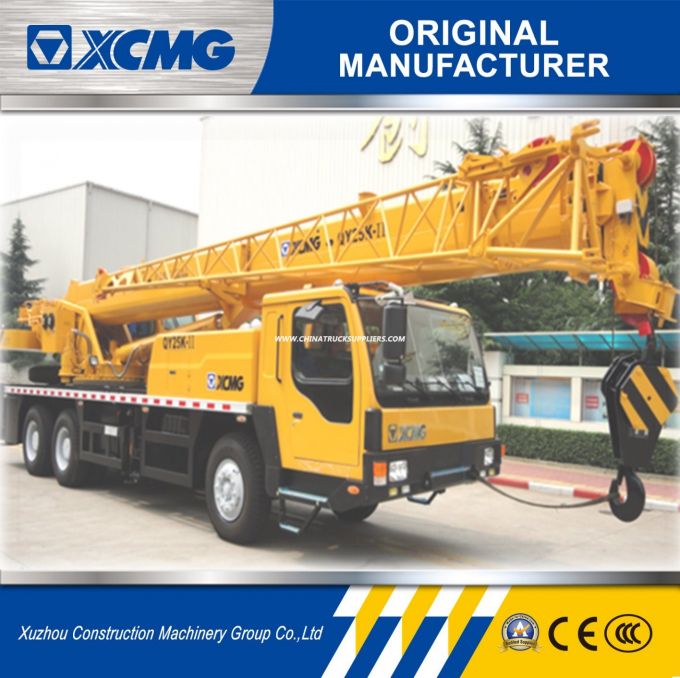

XCMG 25ton Qy25K5-II New Mobile Truck Crane
Production descriptions
Enhanced performance, better quality, eases of use, easy maintenance, with greater energy efficiency and environmental protection.
The optimized machine layout reduces stress on major bearing components, resulting in alifting performance that surpasses other similar products in the industry.
A telescopic mechanism is used to smoothly integrate the boom head to an embedded block, making the telescopic boom much more stable and reliable.
The boom length surpasses other options with the same tonnage, increasing the amount of work covered by up to 6%.
Employing new box legs, the design is optimized to withstand stress, cover larger distances, and offers greater rigidity and stability. Operation efficiency is improved by 6%.

The classic K-series telescopic boom technology is used to ensure safe and reliable operations.
The lifting operation is made more reliable with the industry's more complete safety device system.
A comprehensive upgraded braking system, dual-loop pneumatic design, and improvements across all systems ensure operational safety while the vehicle is in use.
The new power steering mechanism and hydraulic design guarantees the safety of the vehicle at all times, making it more lightweight, agile, and precise.
The highly rigid turret and vehicle frame provides abalance between strength and rigidity.
The integration of design and structural elements have automated the welding process and enhanced reliability.

The energy efficient load-sensing hydraulic system offers ergonomic and intuitive controls and delivers high precision with good micro-motion resistance.
Operation has been simplified with an optimized rod control mechanism.
The cab uses alarge arc-shaped windscreen, which enables wider vision for better control.
The multi-stage centrifugal rotary gear ensures that operation of the rotary system is stable and reliable, with greater operational efficiency.

The layout and design of the pipelines have been optimized based on scientific research, greatly reducing its dismantling time and maintenance costs.
The electrical system has been comprehensively upgraded and now includes leak-proof electrical connectors, significantly extending the service life of components.
Use of the K-series technology prevents rope disruptions and enhances efficiency, reduces labor intensity and extends the service life of the rope.
The retractable steel wire rope and its protective devices prevents it from dropping and breaking.
Full aluminum-covered platforms are provided for car repairs, effectively protecting vehicle components.

It uses dual control engines that are powerful and economically friendly.
In its economical mode, it can meet the engine power demanded for atypical lifting operation, while its high power mode satisfies the requirements needed for highly challenging and efficient operations.
The powerful cooling device eliminates the problem of overheated oil, and extends the service time of hydraulic oil.
Scientifically-supported advanced machine matching technology reduces losses and extends the machine's service life and equipment salvage rate.

parameters

Item	QY25K-II	Unit
Total length	12650	mm
Total width	2500	mm
Total height	3380	mm
Operating Weight	29400	kg
Front axle load	6200	kg
Rear axle load	23200	kg
Engine model	SC8DK280Q3 /WD615.329
Engine power ratings	206/2200 213/2200	kW/(r/min)
Engine torque ratings	1112/1400 1160/1400	N.m/(r/min)
Max. travel speed	75	km/h
Min. turning diameter	21.5	m
Min. ground clearance	275	mm
Approach angle	16	°
Departure angle	13	°
Max. gradeability	30	%
Fuel consumption of 100km	37	L
Max. lifting capacity	25	t
Min. working radius	3000	mm
Turning radius at swing table tail	3.065	m
Max. lifting torque	1010	kN.m
Basic boom lifting height	10.7	m
Longest boom lifting height	34.19	m
Longest boom lifting height with secondary arm	42.15	m
Outrigger longitudinal distance span	5.14	m
Outrigger lateral distance span	6	m
Elevation duration for secondary boom	75	s
Elevation duration for fully extended boom	100	s
Max. rotation speed	≥2.5	r/min
Max. speed for main winch	≥120	m/min
Max. speed for auxiliary winch	≥120	m/min

Company profile
XCMG is aconstruction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world's most comprehensive construction machinery manufacturer and influential multinational company. In 2015, we rank No.1 in China and No. 5in global heavy equipment industry.XCMG's construction machinery covers an astonishing range of equipment, including cranes, earth-movingmachinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment.Our other businesses include finance, leasing, and remanufacturing.

At present, the power of my company's straight-arm crane is entirely from the hydraulic oil pressure, that is, through the high-pressure hydraulic oil to promote the cylinder piston reciprocating motion, or drive the hydraulic motor rotation makes the hydraulic winch and rotary mechanism rotation.

So, how do high-pressure hydraulic oil get? Each truck crane is equipped with ahydraulic pump when the vehicle chassis is matched, and the engine provides power for it. The chemical energy of the fuel can be converted into the crankshaft of the engine to rotate the mechanical energy, and then the gearbox gear is rotated, and then the power is transmitted to the hydraulic pump through the power transmission of the gearbox. Therefore, the hydraulic pump can continuously pressurize the hydraulic oil For the high-pressure hydraulic oil, so as to provide power for the crane to achieve the lifting of the goods.

Competitive Advantage
My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet avariety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.
My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of alarge deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.
The application of the sub-arm, sub-winch and vice-hook provides abasis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.
Ourcompanywillofferyouthehighqualityproductswithalowprice,quickdelivery,andprofessionalafter-saleservice.
FAQ
1: What kind terms ofpaymentcan be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: Whatcertificatesare available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about thedelivery time?
A: 30 days after receiving the deposit.
4: What about thewarranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about theMinimum Order Quantity?
A: The MOQ is 1 pcs
