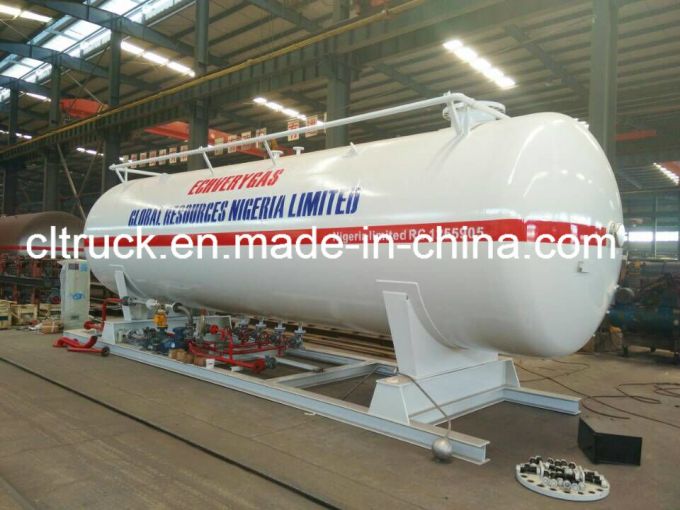

Factory 12.5 Tons 25 Cbm Standard LPG Retail Skids Station for LPG Gas
- USD 20500.32 /Unit
- 1 Unit
- 31 Unit
- 24 days
Product Description
LPG Electronic Filling Scaleswith wholesale gas cylinder tank
Volume:Factory 5000 liters -200000 liters standard LPG storage tank.
Certificate: ISO, CCC, , BV, SGS etc.
Loading weight: from 2.5 tons to 100 tons .
Specifications
LPG skid station list:All the accessories an equipment can be chosen as customers' requirement.
This scale adopts big bore resistant to pollution automatic cutting valve, which solves the problem of being blocked inelectric
1) Automatic tare weighing platform (a scale becomes heavy, lighten automatically cleared barrel replacement can be automatically cleared)
2) Set the weight automatically cut off, beep alarm;
3) Automatically record the save the filling data information of each cylinder;
4) Can be selected according to the user filling adifferent mode of filling;
5) Can visualize every cylinder charge weight before filling volume and charge after weight;
6) Filling the interface can be selected, anormal filling interface and another does not display the empty bottle weight, and the filling to be 10% of the filling volume, the total weight of the zone displayed weight, both modes via the long "bottle weight -0.5" button for 3seconds to switch.
7) Batch query function: You can query the most recent batch of each batch of the cumulative number of bottles and the total gas consumption in the filling interface.
8) Anti-cheat function: filling process due to human intervention so that the weight of the weighing platform becomes lighter,refillable suspend automatic alarm-LOC-.
9) Anti excessive filling: Each bottle has amaximum filling volume limit, the user can according to their needs.
10) Can enter the customer code and cylinders own number, which can be achieved customer sales management, as well as gas cylinder tracking management (with wireless data communications module)
11) Wireless communication function (optional): the filling information real-time wireless transmission to the computer software and real-time monitoring of the filling process, query cylinder filling detail and summary information.
Characterisatics:
Capacity xAccuracy: 150kg x50g -standard
Wireless communication to PC
Precision /Accuracy: Class III
Quantitative Filling
Automatically cut off
Intrinsically-safe Explosive-proof approved
Safe and reliable
One key set /preset weights
Simple and convenient
Automatic tare of the filling gun and bottle weight, filling operation convenient
Platform dimensions: 45cm x50cm -spring loaded to absorb shocks with 6mm rubber matt
Weight of scale: 70kg
Pressure:0 -1.6MPa
Valve life: +/- 2years
Battery operation: 45 hours minimum.
1. LPG pressure vessel
2. For gas, oil, petroleum use
3. Anti-corrosion, anti-acid
Features:
1. Our LPG product: LPG tanker (5cbm to 120cbm); LPG container tank (20ft, 40ft); LPG semitrailer
2. New design: Attractive appearance and safety in usage
3. Certificate ISO9001 and 3CWe're expecting friends from all over the world to come to visit our factory.
4. High quality& resonable price
Chengli Special Automobile Co., Ltd
1. We are agroup company with one years quality guarantee.
2. We have advanced technology and equipments, mature experience.
3. We are leading manufacturer in China, the price of our trucks are competitive.
4. We have modern management system, the delivery time are on time.
5. We exports many trucks over the world. We have professional sales team.
LPG tank container brief detail:
1)Designing pressure:0.7~2.16MpaDesigning temperature:500C
2)The various types LPG tanker is researched and manufactured by stress analysis design and has obvious advantage of large capacity.light weight and high efficiency.
3)We inspect the quality of product strictly,ensure that Aand Btype of welding seam pass the examination of level two radiographic test,C and Dtype of welding seam pass the examination of level one radiographic test.
4)There are domestic or imported safety accessories with high quality ,its matching is complete.
5)The anticorrosion coating of LPG tanker adopt the following process, sandblast, spray painting ,purging and so on
Our main products:
1. Dump Truck /Tipper Truck
2. Fire Fighting Truck /Fire Truck /Fire Vehicle /Fire Engine
3. Truck with crane /Truck Mounted Crane
4. Oil Tank Truck /Fuel Tanker Truck
5. Water Truck /Water Tank Truck /Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck /Insulated truck/ Refrigeration truck
8. Fecal suction truck /Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer (flat bed trailer /skeleton trailer /dump semi trailer /side wall trailer /low bed trailer /van container trailer /warehouse trailer, etc. )
13. Pressure Vessel
If you are interested in our trucks, pls contact me, Iwill send our best quotation to you.
FAQ
1.Payment:
30% deposit after order /confirm/iation, 70% balance should be paid before delivery.All by T/T, L/C.
2.Delivery time:
25 working days after payment is received.
Packaging &Shipping:
1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.
Our warranty:
1. One year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.
Below specification is just for your reference. More information of our LPG Storage Tank. please feel free to contact with Mr Albert Du. We will customize the truck according to your requirement.
Sales Manager:Albert Du
Mob.: 0086-18660874450
Manufacturer Of Tanks Service Stations Gas Station, petrol fuel station
The tank station can be equipped as acomplete gas station |service station for cars, trucks and diesel locomotives or as tank container for yachts and boats.
The tank station can also be applied as airfield gas station (gas station/service station for helicopters).
International transportation permission for ship, rail and road. (CSC)
General construction supervision approval as storage tank.
Extremely robust and high static firmness.
Double walled structure with vacuum leakage indicator.
Protective arrangement of the equipment inside the tank body.
Standard Specifications
2x fuel 75liters/min dispenser
1x fuel transfer pump, approximately 300Liter/min.
2x Fire extinguisher
Single wall plated carbon steel tank.
3" Fuel fill point (Cam Lock) /Overfill protection valve.
Tank level and temperature gage indicator.
light in the dispensing room
Safety:
Air breath valve /emergency relief valve
High level alarm.
Emergency shut off system point and leak detection.
Sealed area around the Valve to give Product Binding in All Areas.
System grounding point to hearth and resistance point and capability for testing
Exporting
Chengli special automobile Co., Ltd is an automobile manufacturer ,the company is amarketing enterprise of various heavy automobile brands, integrating international and domestic trade. Besides, the company has established agood relationship with domestic and overseas customers from Africa, South America, the Middle East and South Asia, winning auniversal recognition and trust from the oversea customers and contributing to China trucks' entrance to the international market.
1.58 sets of military water trucks for national defense
2. Dump trucks in support of the United Nations
3. Fuel tank trucks exported to Sudan
4.78 sets of water truck exported to Nigeria
5. Dump trucks exported to the Ivory Coast, Kazakhstan
6.108sets of trucks exported to Libya
7.36 sets of dump trucks exported to North America
8.218 sets of garbage trucks exported to West Africa
9.60sets of water trucks exported to Congo
10. Garbage trucks exported to Vietnam
11.98 sets of dump trucks exported to Ghana
We are confident and committed to providing our customers with the best qualityand service all the time
If you are interested in our trucks, pls contact me, Iwill send our best quotation to you!
Contact information
Sale Manager:Albert Du
Tel/Fax :00862783796298
Cell:0086-13872880263
0086-18660874450
Website:www.clwvehicle.com
we sincerely welcome you to visit our factory and provide your precious suggestion for us!
Volume:Factory 5000 liters -200000 liters standard LPG storage tank.
Certificate: ISO, CCC, , BV, SGS etc.
Loading weight: from 2.5 tons to 100 tons .
Specifications
| Technical specification | parameters | Subject | Parameters | |||
| Tank | Item Number | 25cbm LPG tank | Liquid Indictor | Model | UHZ-518C14 | |
| Overall size(mm) | 7008*2224*2814 | Version | Magnetic | |||
| Net weight(Kg) | 6020 | Normal pressure | 2.5Mpa | |||
| Vessel type | III | Scope of testing | 50-2300mm | |||
| Designing pressure | 1.77Mpa | Precision | 2.5 | |||
| Working pressure | 1.61Mpa | Safety Valve | Model | A42F | ||
| Designing temperature | -19~50°C | Version | Built-in | |||
| Filling Medium | Propane | Normal pressure | 2.5 Mpa | |||
| Corrosion margin | 1.0mm | Normal diameter | DN50 | |||
| Volume | 25CBM(25000L) | Opening pressure | 1.68-1.76 Mpa | |||
| Heat treatment | bulk | Re-seating pressure | ≥80% of opening pressure | |||
| Filling factor | 420-590kg/m3 | Handling System | Normal Diameter | Feed pip | DN50 | |
| Material | Q345R | Drain pip | DN50 | |||
| Hydraulic test pressure | 2.22 Mpa | Admission port | DN50 | |||
| Gas tight test pressure | 1.77 Mpa | Sewage outfall port | DN50 | |||
| Cylinder thickness | 12mm | Vent nozzle port | DN50 | |||
| Head thickness | 14mm | Standard | GB150-1998<steel pressure vessels> | |||
| Service time | 15 years | Safety regulation of pressure vessels | ||||
Accessory | Safety valve, magnetic flap liquid level gauge, pressure gauge, thermometer, cut-off valves, etc. | |||||
| Specification | Designed Pressure: 1.66Mpa Filling Ratio: 0.42 -0.59kg/L Working Temperature:-50ºC Corrosion Allowance: 1mm | |||||
LPG skid station list:All the accessories an equipment can be chosen as customers' requirement.
| 25 cbm LPG station Part list (Any volume or loading weight are available) | |||||
| Item | Model Number | Quantity | |||
| LPG Tanker | 25 cbm | 1 piece | |||
| Filling Pump | 2" inlet &2" outlet | 1 Piece | |||
| Germany ABB Motor | 380V with 220V adapter | 1 Piece | |||
| Cylinder Filling Machine | Can fill 3kg to 150kg LPG cylinder | 1 Piece | |||
| Cut-off Valve | J41N-40 DN50 | 25 Pieces | |||
| J41N-40 DN15 | 10 Pieces | ||||
| Safety Valve | A42F-25 DN50 | 1 Piece | |||
| Pipe Safety Valve | A21F-25 DN15 | 1 Piece | |||
| Ball floating level gauge | UQZ-2.5P | 1 Piece | |||
| Discharging pipe | L=4M DN50/DN25 | 1 Piece | |||
| Shock-absorbing Tube | L=500mm DN50 | 2 Pieces | |||
| Flange | 2.5MPaDN15 | 20 Pieces | |||
| LPG Pump &Motor Specification | |||||
| Pump Brand | Can be Chosen from | ||||
| Model | Z2000EGAEE | ||||
| Medium | Liquid petroleum gas | ||||
| Material | Nodular Cast Iron | ||||
| Liquid Delivery Value | 5.2m³/h~18m³/h | ||||
| Maximum Differential Pressure | 1034KPa | ||||
| Inlet &Outlet Flange | 2"NPT /2" NPT | ||||
| Motor Brand | ABB (Germany) | ||||
| Specification | 7.5-10HP(5.5KW), Explosive Proof, Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable | ||||
| LPG Cylinder Filling Machine Specification | |||||
| Brand | Kaiyuan | ||||
| Model | BCS-150 | ||||
| Electricity Voltage | AC220V | ||||
| Power | 40W | ||||
| Maximum Weighing | 150kg | ||||
| Measurement Precision | ±0.5% | ||||
| Rated Working Pressure | 1.6Mpa | ||||
| Working Temperature | -40ºC~+40ºC | ||||
| Anti-explosion Mark | Exdeib II BT4 | ||||
This scale adopts big bore resistant to pollution automatic cutting valve, which solves the problem of being blocked inelectric
1) Automatic tare weighing platform (a scale becomes heavy, lighten automatically cleared barrel replacement can be automatically cleared)
2) Set the weight automatically cut off, beep alarm;
3) Automatically record the save the filling data information of each cylinder;
4) Can be selected according to the user filling adifferent mode of filling;
5) Can visualize every cylinder charge weight before filling volume and charge after weight;
6) Filling the interface can be selected, anormal filling interface and another does not display the empty bottle weight, and the filling to be 10% of the filling volume, the total weight of the zone displayed weight, both modes via the long "bottle weight -0.5" button for 3seconds to switch.
7) Batch query function: You can query the most recent batch of each batch of the cumulative number of bottles and the total gas consumption in the filling interface.
8) Anti-cheat function: filling process due to human intervention so that the weight of the weighing platform becomes lighter,refillable suspend automatic alarm-LOC-.
9) Anti excessive filling: Each bottle has amaximum filling volume limit, the user can according to their needs.
10) Can enter the customer code and cylinders own number, which can be achieved customer sales management, as well as gas cylinder tracking management (with wireless data communications module)
11) Wireless communication function (optional): the filling information real-time wireless transmission to the computer software and real-time monitoring of the filling process, query cylinder filling detail and summary information.
Characterisatics:
Capacity xAccuracy: 150kg x50g -standard
Wireless communication to PC
Precision /Accuracy: Class III
Quantitative Filling
Automatically cut off
Intrinsically-safe Explosive-proof approved
Safe and reliable
One key set /preset weights
Simple and convenient
Automatic tare of the filling gun and bottle weight, filling operation convenient
Platform dimensions: 45cm x50cm -spring loaded to absorb shocks with 6mm rubber matt
Weight of scale: 70kg
Pressure:0 -1.6MPa
Valve life: +/- 2years
Battery operation: 45 hours minimum.
1. LPG pressure vessel
2. For gas, oil, petroleum use
3. Anti-corrosion, anti-acid
Features:
1. Our LPG product: LPG tanker (5cbm to 120cbm); LPG container tank (20ft, 40ft); LPG semitrailer
2. New design: Attractive appearance and safety in usage
3. Certificate ISO9001 and 3CWe're expecting friends from all over the world to come to visit our factory.
4. High quality& resonable price
Chengli Special Automobile Co., Ltd
1. We are agroup company with one years quality guarantee.
2. We have advanced technology and equipments, mature experience.
3. We are leading manufacturer in China, the price of our trucks are competitive.
4. We have modern management system, the delivery time are on time.
5. We exports many trucks over the world. We have professional sales team.
LPG tank container brief detail:
1)Designing pressure:0.7~2.16MpaDesigning temperature:500C
2)The various types LPG tanker is researched and manufactured by stress analysis design and has obvious advantage of large capacity.light weight and high efficiency.
3)We inspect the quality of product strictly,ensure that Aand Btype of welding seam pass the examination of level two radiographic test,C and Dtype of welding seam pass the examination of level one radiographic test.
4)There are domestic or imported safety accessories with high quality ,its matching is complete.
5)The anticorrosion coating of LPG tanker adopt the following process, sandblast, spray painting ,purging and so on
Our main products:
1. Dump Truck /Tipper Truck
2. Fire Fighting Truck /Fire Truck /Fire Vehicle /Fire Engine
3. Truck with crane /Truck Mounted Crane
4. Oil Tank Truck /Fuel Tanker Truck
5. Water Truck /Water Tank Truck /Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck /Insulated truck/ Refrigeration truck
8. Fecal suction truck /Sewage Suction Truck,
9. Cement Powder Tank truck/ Bulk Cement Truck
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer (flat bed trailer /skeleton trailer /dump semi trailer /side wall trailer /low bed trailer /van container trailer /warehouse trailer, etc. )
13. Pressure Vessel
If you are interested in our trucks, pls contact me, Iwill send our best quotation to you.
FAQ
1.Payment:
30% deposit after order /confirm/iation, 70% balance should be paid before delivery.All by T/T, L/C.
2.Delivery time:
25 working days after payment is received.
Packaging &Shipping:
1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.
Our warranty:
1. One year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.
Below specification is just for your reference. More information of our LPG Storage Tank. please feel free to contact with Mr Albert Du. We will customize the truck according to your requirement.
Sales Manager:Albert Du
Mob.: 0086-18660874450
Manufacturer Of Tanks Service Stations Gas Station, petrol fuel station
The tank station can be equipped as acomplete gas station |service station for cars, trucks and diesel locomotives or as tank container for yachts and boats.
The tank station can also be applied as airfield gas station (gas station/service station for helicopters).
International transportation permission for ship, rail and road. (CSC)
General construction supervision approval as storage tank.
Extremely robust and high static firmness.
Double walled structure with vacuum leakage indicator.
Protective arrangement of the equipment inside the tank body.
Standard Specifications
2x fuel 75liters/min dispenser
1x fuel transfer pump, approximately 300Liter/min.
2x Fire extinguisher
Single wall plated carbon steel tank.
3" Fuel fill point (Cam Lock) /Overfill protection valve.
Tank level and temperature gage indicator.
light in the dispensing room
Safety:
Air breath valve /emergency relief valve
High level alarm.
Emergency shut off system point and leak detection.
Sealed area around the Valve to give Product Binding in All Areas.
System grounding point to hearth and resistance point and capability for testing
NO. | ConTAINER DIMENTIONS | OIL TANK CAPACITY | OIL TANK DIMENSIONS(mm) | OIL TANK LAYERS | chamber/oil type | THICKNESS |
| 1· | 20feet | 15000L | φ2200*4200 | single wall | single chamber | 5mm |
| double chambers | 5mm | |||||
| φ2270*4270 | double wall | single chamber | inside6,outside5 | |||
| double chambers | inside6,outside5 | |||||
| 2· | 40feet | 30000L | φ2200*8300 | single wall | single chamber | 5mm |
| double chambers | 5mm | |||||
| φ2270*8370 | double wall | single chamber | inside6,outside5 | |||
| double chambers | inside6,outside5 |
Chengli special automobile Co., Ltd is an automobile manufacturer ,the company is amarketing enterprise of various heavy automobile brands, integrating international and domestic trade. Besides, the company has established agood relationship with domestic and overseas customers from Africa, South America, the Middle East and South Asia, winning auniversal recognition and trust from the oversea customers and contributing to China trucks' entrance to the international market.
1.58 sets of military water trucks for national defense
2. Dump trucks in support of the United Nations
3. Fuel tank trucks exported to Sudan
4.78 sets of water truck exported to Nigeria
5. Dump trucks exported to the Ivory Coast, Kazakhstan
6.108sets of trucks exported to Libya
7.36 sets of dump trucks exported to North America
8.218 sets of garbage trucks exported to West Africa
9.60sets of water trucks exported to Congo
10. Garbage trucks exported to Vietnam
11.98 sets of dump trucks exported to Ghana
We are confident and committed to providing our customers with the best qualityand service all the time
If you are interested in our trucks, pls contact me, Iwill send our best quotation to you!
Contact information
Sale Manager:Albert Du
Tel/Fax :00862783796298
Cell:0086-13872880263
0086-18660874450
Website:www.clwvehicle.com
we sincerely welcome you to visit our factory and provide your precious suggestion for us!
Product Images
-
Low Price Good QualiUS $25500.00 /Unit -
China Brand New 8.4mUS $25500.00 /Unit -
20cbm 9t Mobile LPGUS $24000.00 /Unit -
LPG Gas Filling PlanUS $14000.00 /Unit
