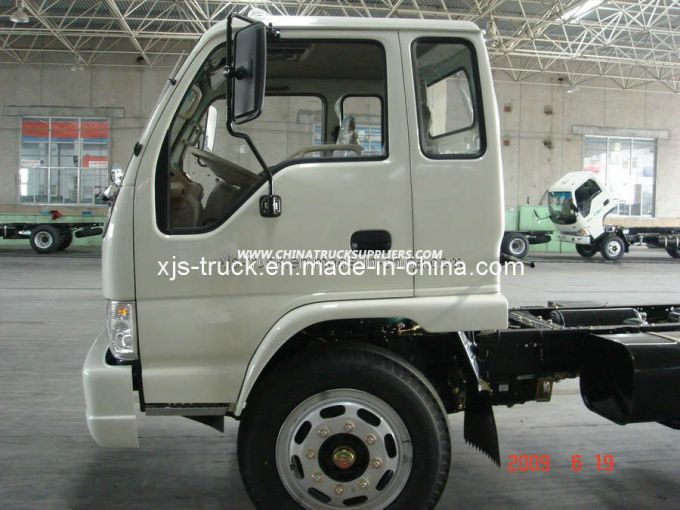

JAC Light Truck (HFC1042KT)

1. Original parts
2. Quick quotation
3. Good quality
4. Reasonable price

JAC TRUCK TIPPER DUMP DUMPER SEMI-DUMP SEMI-TIPPER ConSTRUCTION TRUCK
15CBM 18CBM 20CBM 32CBM 42CBM

JAC
Truck part, light truck, Cargo truck, tipper truck, CBU truck, Van truck, Refrigerator truck, Freezer truck, Dump Truck, JAC truck, JAC, truck. Lorry.

Model	HFC1042K3T	Curb Weight (kg)	2150
Cabin	Single	Max Load Capacity(kg)	1250
Engine	HFC4DA1-2B	Gross Vehicle Weight(kg)	3490
Type	in line-4, ind-cooler turbocharged, diesel	Min Turing Radius(m)	6
Displacement (cc)	2771	Min Ground Clearance(mm)	198
Compression Ratio	17	Max Speed(km/h)	110
Max Power (HP/rpm)	68KW/3600	Seating Capacity	2
Max Torque (N. m/rpm)	202/2100-2300	Max Gradeability(%)	35
Transmission	JAC MSB-5M	frame Section Size(mm)	170× 70× 5
Speed Ratio	5.529, 2.782, 1.641, 1, 0.785, R, 5.271	Configuration
Gear Position	1 3 5 2 4 R	Air Conditioner	ο
Final gear ratio	5.375	Power Steering	ο
Brake system	hydraulic brake	Sidebumper	ο
Tyre	7.00R16 Rear single	Rear bumper	√
Overall Size(mm)(L*W*H)	4850*1730*2240	Wind deflector	ο
Rear body size(mm)(L*W*H)	3120*1620*400	Digital Radio	√
Tread (front / rear)(mm)	1385/1395	Exhaust Braking	√
Wheelbase(mm)	2490	New model cabin	√
