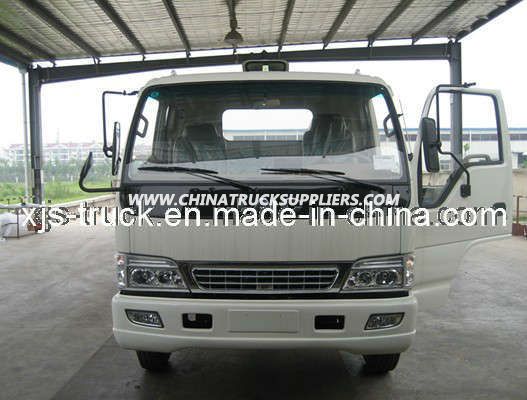

JAC Light Truck HFC1040K/KR (D803/D804)

1. Original parts
2. Good quality
3. Quick quotation
4. Reasonable price

JAC
Truck part, light truck, Cargo truck, tipper truck, CBU truck, Van truck, Refrigerator truck, Freezer truck, Dump Truck, JAC truck, JAC, truck. Lorry.

Model	HFC1040K/KR1	Curb Weight (kg)	2300
Serious Number for produce	D803/D804	Max Load Capacity(kg)	2500
Cabin	Single/King Cab	Gross Vehicle Weight(kg)	4930
Engine	HFC4DA1	Min Turing Radius(m)	7
Type	in line-4, diesel	Min Ground Clearance(mm)	185
Displacement (cc)	2771	Max Speed(m/h)	90
Compression Ratio	17	Seating Capacity	2
Max Power (HP/rpm)	57kw/3600	Max Gradeability(%)	30
Max Torque (N. m/rpm)	174/2100-2300	frame Section Size(mm)	170*70*5
Transmission	JAC MSB-5M	Configuration
Speed Ratio	5.529, 2.782, 1.641, 1, 0.785, R, 5.271	Air Conditioner	ο
Gear Position	1 3 5 2 4 R	Power Steering	ο
Final gear ratio	D803-6.142	Pre-heater	√
Brake system	hydraulic brake	Sidebumper	ο
Tyre	6.50-16	Rear bumper	√
Overall Size(mm)(L*W*H)	5745*1866*2213	Wind deflector	ο
Rear body size(mm)(L*W*H)	3930/3600*1770*400	Digital Radio	√
Tread (front / rear)(mm)	1420, 1440/1395	New model cabin	√
Wheelbase(mm)	3000
