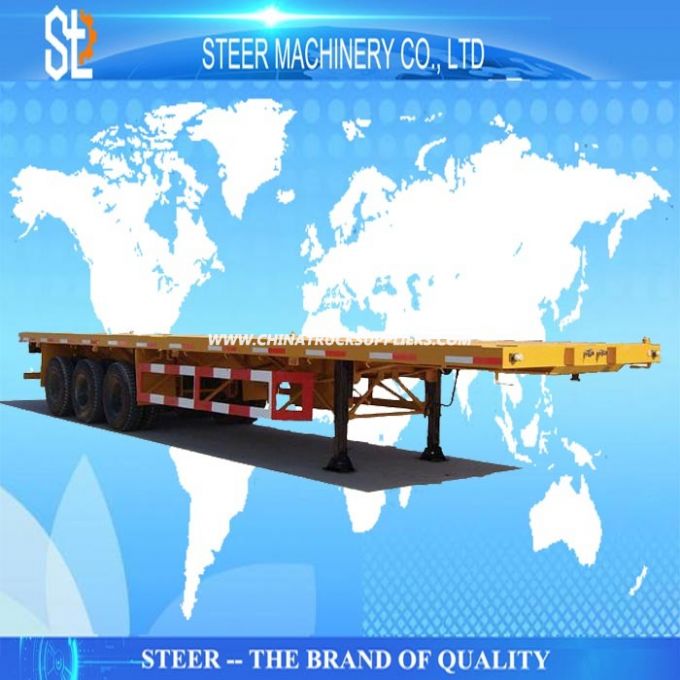

3 Axle Container Transporting Container Truck Trailer for Sale

3 axle container transporting container truck trailer for sale


Basic info

payload	40000 kg
Size	12500mm*2500mm*1500mm
Payload	80T
Main beam	automatic welding with Q235 Bsteel ,thickness of 14/16/8 mm for the main beam
Side beam	#16 channel steel
Cross member	Q235 Bchannel steel
Floor	3mm checked steel
Side wall	optional
Front board	optional
Axle	Fuwa or BPW optional. 13 ton *3 pcs
Suspension	Mechanical suspension
Leaf spring	ten pcs heavy duty suspension
Tire	12R22.5 or optional 12 pcs
Kingpin	2.0 or 3.5 optional
Landing gear	28 ton landing gear or JOST brand
Braking system	WABCO braking valve and 40 Lair tanker
ABS	Optional
Painting	anticorrosive prime 1time ,final paint 2times
Accessories	tool box, side fence ,rear fence ,tire rack etc
Date of delivery	15-30 days after the deposit

Description

Breaking valve is made by webco or other famous companies to ensure the breaking performance .
Breaking pads with good quality to enlarge the working length in order to reduce the cost of changing , is able to enlarge hundreds of kilometers .
The leaf spring of the semi trailer is usually ten pieces which is much stronger than the normal type. And for the special type of the semi trailers, the bogie suspension is available too.
Twist lock of the container transport trailer will be adopted with 12 sets which will be able to charge 1 40 ft container, 2 20 ft container or 1 container 20 ft in the middle. The design will be useful for the customers for the overweight checking .

Reference drawing





Our service

(1) The trailer must striectly tested before the shippment to guarantee the customer's profit

(2) 1year warranty without man-made broken

(3) 24 online solving all the questions about the technical or othere

(4) English, French, Spainsh support with special servers .

(5) Spare parts are available all the time

(6) Regular follow-up to guarantee the trailer in good condition .
