/Flatbed 40 FT Transport Container Trailer with 3 Axles
- USD 9000.13 /Unit
- 1 Unit
- 83 Unit
- 7 days
Product Description

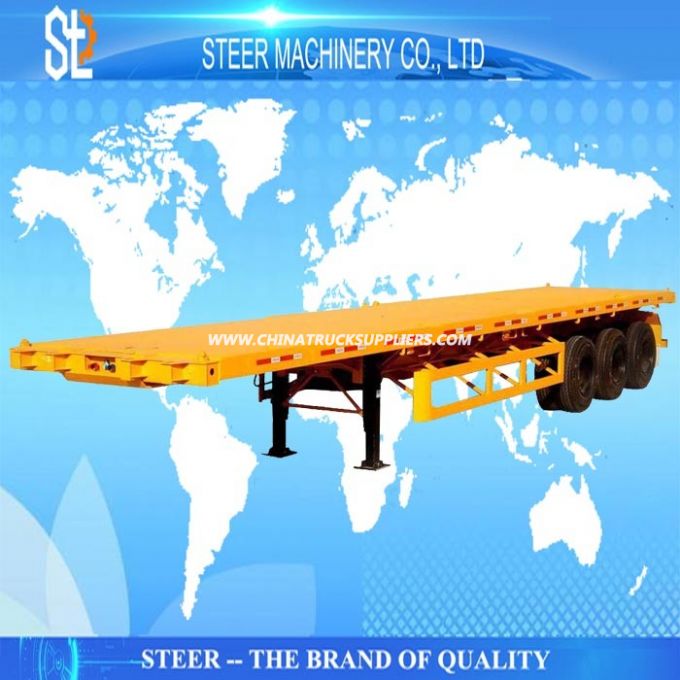

Flatbed 40 ft transport container trailer with 3 axles
Basic info
Description
12R22.5 trailer tires comes from the good brand like linglong, chengshan, double corn etc. Is able to work in hard conditions like the high temperature, cold conditions, or the dessert .
The steel of the cargo box adopt the high strength ones strictly controlled by the purchasing manger. And highly controlled by the producing manger while produced .
Main beam of the trailer is various according to the payload of the semi trailers that the customers required. The standard type that we usually use is the 14/16/8 mm for the 40 ton payload . The main beam adopt the Q345 steel and automatic welding to make the main beam strong enough to suit the payload .
Reference drawing
Our service
Basic info
| payload | 40000 kg |
| Size | 12500mm*2500mm*1500mm |
| Main beam | automatic welding with Q235 Bsteel ,thickness of 14/16/8 mm for the main beam |
| Side beam | #16 channel steel |
| Cross member | Q235 Bchannel steel |
| Floor | 3mm checked steel |
| Side wall | available |
| Front board | optional |
| Axle | Fuwa or BPW optional. 13 ton *3 pcs |
| Suspension | Mechanical suspension |
| Leaf spring | ten pcs heavy duty suspension |
| Tire | 12.00R20 or optional 12 pcs |
| Kingpin | 2.0 |
| Landing gear | 28 ton landing gear or JOST brand |
| Braking system | WABCO braking valve and 40 Lair tanker |
| ABS | Optional |
| Painting | anticorrosive prime 1time ,final paint 2times |
| Accessories | tool box, side fence ,rear fence ,tire rack etc |
| Date of delivery | 15-30 days after the deposit |
Description
12R22.5 trailer tires comes from the good brand like linglong, chengshan, double corn etc. Is able to work in hard conditions like the high temperature, cold conditions, or the dessert .
The steel of the cargo box adopt the high strength ones strictly controlled by the purchasing manger. And highly controlled by the producing manger while produced .
Main beam of the trailer is various according to the payload of the semi trailers that the customers required. The standard type that we usually use is the 14/16/8 mm for the 40 ton payload . The main beam adopt the Q345 steel and automatic welding to make the main beam strong enough to suit the payload .
Reference drawing
Our service
(1) The trailer must striectly tested before the shippment to guarantee the customer's profit
(2) 1year warranty without man-made broken
(3) 24 online solving all the questions about the technical or othere
(4) English, French, Spainsh support with special servers .
(5) Spare parts are available all the time
(6) Regular follow-up to guarantee the trailer in good condition .
