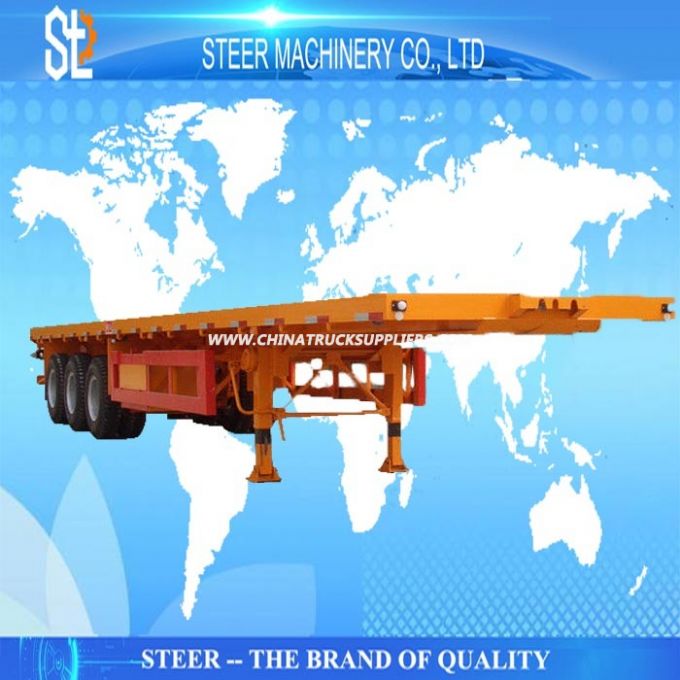

/Bulk Cargo Transport Use Flatbed Container Semitrailer
- USD 9000.13 /Unit
- 1 Unit
- 55 Unit
- 15 days
Product Description
bulk cargo transport use flatbed container semitrailer
Basic info
Description
Breaking valve is made by webco or other famous companies to ensure the breaking performance .
Breaking pads with good quality to enlarge the working length in order to reduce the cost of changing , is able to enlarge hundreds of kilometers .
The leaf spring of the semi trailer is usually ten pieces which is much stronger than the normal type. And for the special type of the semi trailers, the bogie suspension is available too.
Twist lock of the container transport trailer will be adopted with 12 sets which will be able to charge 1 40 ft container, 2 20 ft container or 1 container 20 ft in the middle. The design will be useful for the customers for the overweight checking .
Reference drawing
Our service
Basic info
| payload | 50 T |
| Size | 12500mm*2500mm*1500mm |
| Main beam | automatic welding with Q235 Bsteel ,thickness of 14/16/8 mm for the main beam |
| Side beam | channel steel #16 |
| Cross member | Q235 B steel |
| Floor | 3 mm checked steel |
| Side wall | available |
| Front board | flaxible |
| Axle | Fuwa or BPW optional. 13 ton *3 pcs |
| Suspension | Mechanical suspension |
| Leaf spring | ten pcs heavy duty suspension |
| Tire | 12R22.5 or optional 12 pcs |
| Kingpin | 3.5 |
| Landing gear | JOST C200 |
| Braking system | WABCO braking valve |
| ABS | Optional |
| Painting | anticorrosive prime 1time ,final paint 2times |
| Accessories | tool box, side fence ,rear fence ,tire rack etc |
| Date of delivery | 15-30 days after the deposit |
Description
Breaking valve is made by webco or other famous companies to ensure the breaking performance .
Breaking pads with good quality to enlarge the working length in order to reduce the cost of changing , is able to enlarge hundreds of kilometers .
The leaf spring of the semi trailer is usually ten pieces which is much stronger than the normal type. And for the special type of the semi trailers, the bogie suspension is available too.
Twist lock of the container transport trailer will be adopted with 12 sets which will be able to charge 1 40 ft container, 2 20 ft container or 1 container 20 ft in the middle. The design will be useful for the customers for the overweight checking .
Reference drawing
Our service
(1) The trailer must striectly tested before the shippment to guarantee the customer's profit
(2) 1year warranty without man-made broken
(3) 24 online solving all the questions about the technical or othere
(4) English, French, Spainsh support with special servers .
(5) Spare parts are available all the time
(6) Regular follow-up to guarantee the trailer in good condition .
