/4 Axles 100 Ton Payload Rowbed Trailer for Road Transporting
- USD 12000.19 /Unit
- 1 Unit
- 71 Unit
- 25 days
Product Description

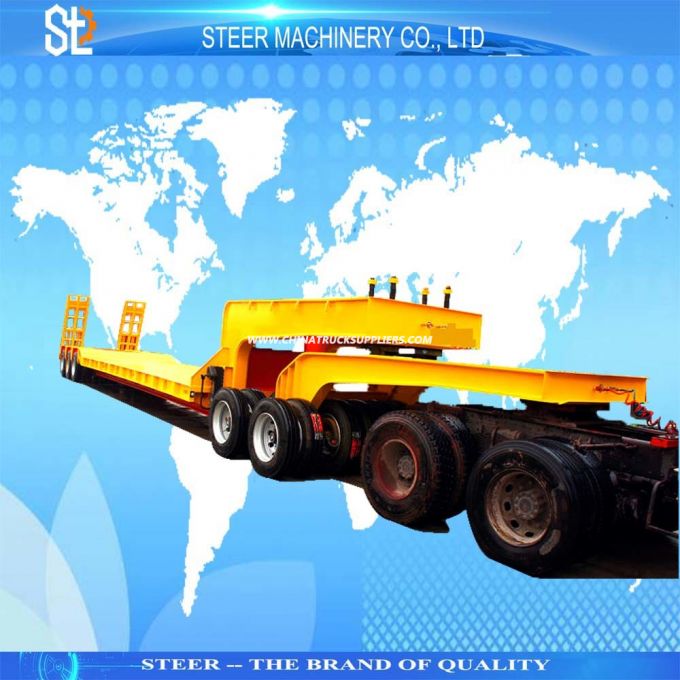

4 axles 100 ton payload rowbed trailer for road transporting
Basic info
Description
Main beam of the trailer is various according to the payload of the semi trailers that the customers required. The standard type that we usually use is the 14/16/8 mm for the 40 ton payload . The main beam adopt the Q345 steel and automatic welding to make the main beam strong enough to suit the payload .
Lock stitch of the side door and the rear door is different according to the customers requirement , there are container type, the normal type, embedded type the save the sea cost. Whichever is strong enough for the transportation safety .
Rear fence is made by strong carbon steel for the trailer safety.
Two types of landing gear are optional , double speed and single speed. Loading capacity of the landing gear are 28 ton, static load of 80 per sets. The advantage of the double speed is more convenient for the users to rise the trailers with just ones rising. The single speed is designed for the parking which is not flat .
Reference drawing
Our service
Basic info
| payload | 100 T |
| Size | 15000mm*3000mm*1400mm |
| Main beam | automatic welding with Q235 Bsteel ,thickness of 16/18/10 mm for the main beam |
| Side beam | automatic whelding I shape side beam |
| Cross member | Q235 B steel |
| Floor | 5 mm checked steel |
| Side wall | without |
| Front board | without |
| Axle | Fuwa or optional. 16 ton axles |
| Suspension | Mechanical suspension |
| ladder | spring or hydralic ladder |
| Tire | 12.00R20 or optional 12 pcs |
| Kingpin | 3.5 or 2.0 |
| Landing gear | JOST C200 |
| Braking system | WABCO braking valve |
| ABS | Optional |
| Painting | anticorrosive prime 1time ,final paint 2times |
| Accessories | tool box, side fence ,rear fence ,tire rack etc |
| Date of delivery | 15-30 days after the deposit |
Description
Main beam of the trailer is various according to the payload of the semi trailers that the customers required. The standard type that we usually use is the 14/16/8 mm for the 40 ton payload . The main beam adopt the Q345 steel and automatic welding to make the main beam strong enough to suit the payload .
Lock stitch of the side door and the rear door is different according to the customers requirement , there are container type, the normal type, embedded type the save the sea cost. Whichever is strong enough for the transportation safety .
Rear fence is made by strong carbon steel for the trailer safety.
Two types of landing gear are optional , double speed and single speed. Loading capacity of the landing gear are 28 ton, static load of 80 per sets. The advantage of the double speed is more convenient for the users to rise the trailers with just ones rising. The single speed is designed for the parking which is not flat .
Reference drawing
Our service
(1) The trailer must striectly tested before the shippment to guarantee the customer's profit
(2) 1year warranty without man-made broken
(3) 24 online solving all the questions about the technical or othere
(4) English, French, Spainsh support with special servers .
(5) Spare parts are available all the time
(6) Regular follow-up to guarantee the trailer in good condition .
