Product Description
Heavy duty low bed semi trailer for machines transporting
Heavy Duty Low Bed Semi Trailer for Machines Transporting







Basic info
payload60 T
Size13000mm*3000mm*1400mm
Main beamautomatic welding with Q235 Bsteel ,thickness of 16/18/10 mm for the main beam
Side beamautomatic whelding I shape side beam
Cross memberQ235 B steel
Floor5 mm checked steel
Side wallwithout
Front boardwithout
AxleFuwa or optional. 16 ton axles
SuspensionMechanical suspension
ladderspring or hydralic ladder
Tire12.00R20 or optional 12 pcs
Kingpin3.5 or 2.0
Landing gearJOST C200
Braking systemWABCO braking valve
ABSOptional
Paintinganticorrosive prime 1time ,final paint 2times
Accessoriestool box, side fence ,rear fence ,tire rack etc
Date of delivery15-30 days after the deposit

Description


Breaking pads with good quality to enlarge the working length in order to reduce the cost of changing , is able to enlarge hundreds of kilometers .

The leaf spring of the semi trailer is usually ten pieces which is much stronger than the normal type. And for the special type of the semi trailers, the bogie suspension is available too.

The tire will be optional by the clients. And for the heavy duty type of the semi trailers, we will make the suitable ones. And in order to meet the different requirements of the marketing area, the special type will be used too such as in Gabon , Africa we will chose the 13R22.5 instead of 12R22.5 ones 'cause of local requirements .




Reference drawing

Heavy Duty Low Bed Semi Trailer for Machines Transporting




Our service

(1) The trailer must striectly tested before the shippment to guarantee the customer's profit

(2) 1year warranty without man-made broken

(3) 24 online solving all the questions about the technical or othere

(4) English, French, Spainsh support with special servers .

(5) Spare parts are available all the time

(6) Regular follow-up to guarantee the trailer in good condition .

Related products

fence cargo trailer .tipping flatbed trailer ,van box trailer ,

Contact person :

Manger office :


Tel :+86-536-899-8506

Sales :


Tel: +86-177-5369-7139

Product Images

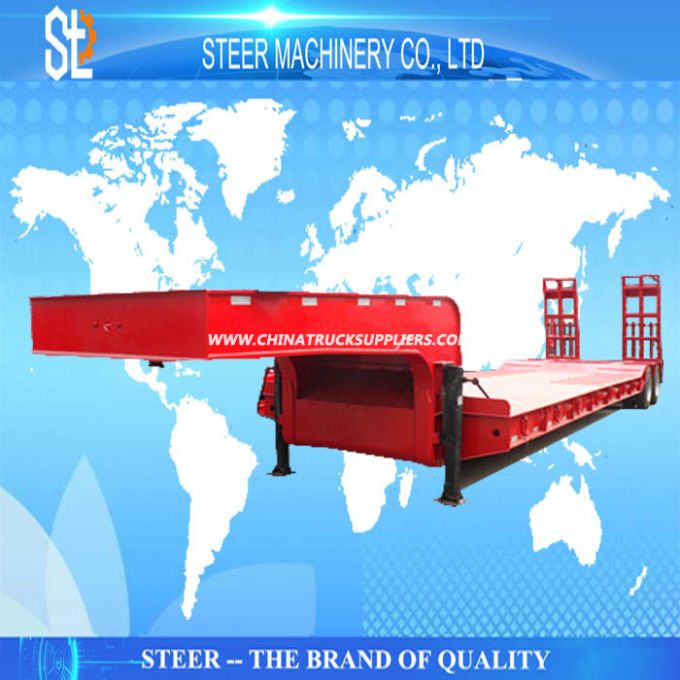

Heavy Duty Low Bed Semi Trailer for Machines Transporting Images 1
