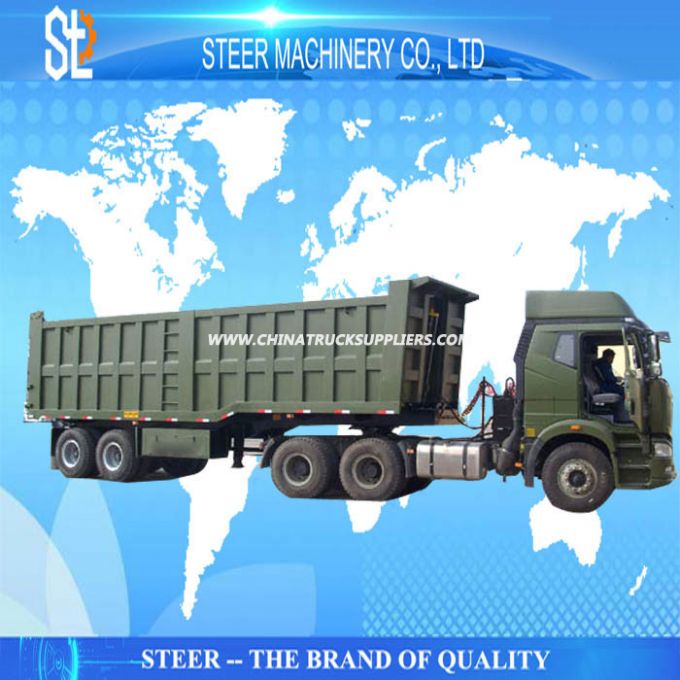

Multi Usage Cement Transport Tipping Truck Trailer

multi usage cement transport tipping truck trailer













Basic info

payload	40 T
Size	9000mm*2500mm*3800mm
Main beam	automatic welding with Q235 Bsteel ,
box	thickness according to the net payload from the customers requirement
Cross member	Q235 B steel
type	End dump
Side wall	reforced
Front board	including
Axle	Fuwa or optional. 16 ton axles
Suspension	Mechanical suspension
cylinder	#196 or # 214
Tire	12R22.5 or optional 12 pcs
Kingpin	3.5 or 2.0
Landing gear	JOST C200
Braking system	WABCO braking valve
ABS	Optional
Painting	anticorrosive prime 1time ,final paint 2times
Accessories	tool box, side fence ,rear fence ,tire rack etc
Date of delivery	15-30 days after the deposit

Description


12R22.5 trailer tires comes from the good brand like linglong, chengshan, double corn etc. Is able to work in hard conditions like the high temperature, cold conditions, or the dessert .

The steel of the cargo box adopt the high strength ones strictly controlled by the purchasing manger. And highly controlled by the producing manger while produced .

Main beam of the trailer is various according to the payload of the semi trailers that the customers required. The standard type that we usually use is the 14/16/8 mm for the 40 ton payload . The main beam adopt the Q345 steel and automatic welding to make the main beam strong enough to suit the payload .






Reference drawing







Our service

(1) The trailer must striectly tested before the shippment to guarantee the customer's profit

(2) 1year warranty without man-made broken

(3) 24 online solving all the questions about the technical or othere

(4) English, French, Spainsh support with special servers .

(5) Spare parts are available all the time

(6) Regular follow-up to guarantee the trailer in good condition .
