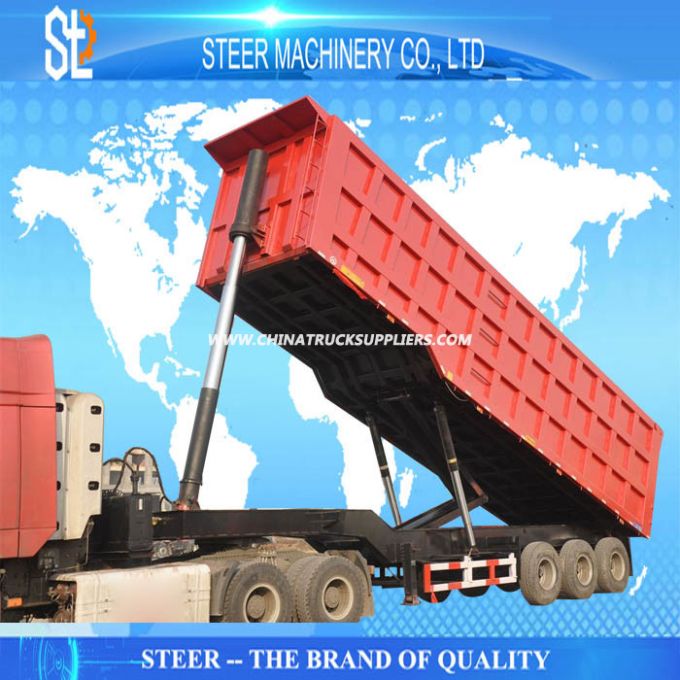

3 Axle Sand Transporting Self Discharging Dump Trailer

3 axle sand transporting self discharging dump trailer











Basic info

payload	40 T
Size	9000mm*2500mm*3800mm
Main beam	automatic welding with Q235 Bsteel ,
box	thickness according to the net payload from the customers requirement
Cross member	Q235 B steel
type	End dump
Side wall	reforced
Front board	including
Axle	Fuwa or optional. 16 ton axles
Suspension	Mechanical suspension
cylinder	#196
Tire	12R22.5 or optional 12 pcs
Kingpin	3.5 or 2.0
Landing gear	JOST C200
Braking system	WABCO braking valve
ABS	Optional
Painting	anticorrosive prime 1time ,final paint 2times
Accessories	tool box, side fence ,rear fence ,tire rack etc
Date of delivery	15-30 days after the deposit

Description


Rear fence is made by strong carbon steel for the trailer safety.

Two types of landing gear are optional , double speed and single speed. Loading capacity of the landing gear are 28 ton, static load of 80 per sets. The advantage of the double speed is more convenient for the users to rise the trailers with just ones rising. The single speed is designed for the parking which is not flat .

Breaking valve is made by webco or other famous companies to ensure the breaking performance .
Breaking pads with good quality to enlarge the working length in order to reduce the cost of changing , is able to enlarge hundreds of kilometers .





Reference drawing







Our service

(1) The trailer must striectly tested before the shippment to guarantee the customer's profit

(2) 1year warranty without man-made broken

(3) 24 online solving all the questions about the technical or othere

(4) English, French, Spainsh support with special servers .

(5) Spare parts are available all the time

(6) Regular follow-up to guarantee the trailer in good condition .
