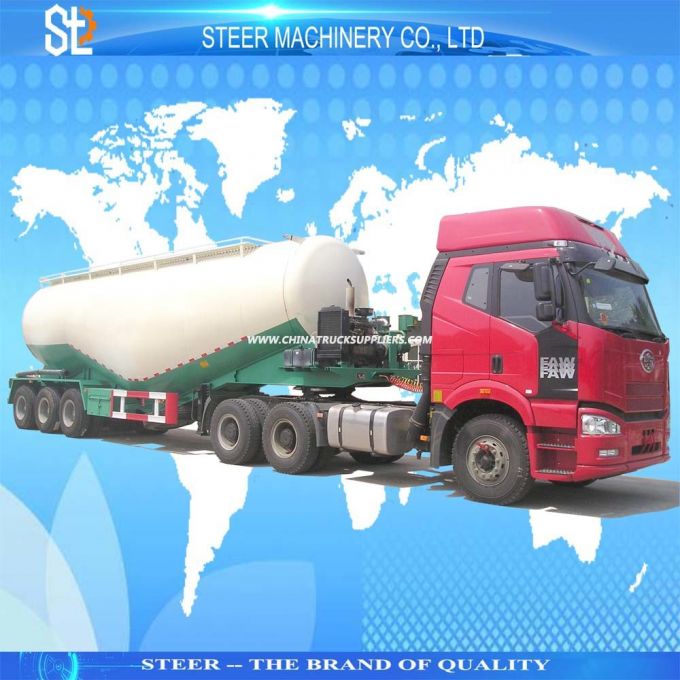

Bulk Cement Transporting 60 Ton Bulk Cement Tank Trailer

bulk cement transporting 60 ton bulk cement tank trailer


Basic info

payload	56 T
Size	11000mm*2500mm*3900mm
Tanker	5mm on the thickness
Dieseil engine	Weichai 4102
Air compressor	12 CBM air compressor
type	V shape tanker
Axle	13 ton axle
Front plate	6 mm on the thickness
tool box	1 sets
Suspension	Mechanical suspension
tire rack	2 sets
Tire	12R22.5 or optional 12 pcs
Kingpin	3.5 or 2.0
Landing gear	JOST C200
Braking system	WABCO braking valve
ABS	Optional
Painting	anticorrosive prime 1time ,final paint 2times
Accessories	tool box, side fence ,rear fence ,tire rack etc
Date of delivery	15-30 days after the deposit

Description


Breaking pads with good quality to enlarge the working length in order to reduce the cost of changing , is able to enlarge hundreds of kilometers .

The leaf spring of the semi trailer is usually ten pieces which is much stronger than the normal type. And for the special type of the semi trailers, the bogie suspension is available too.
Twist lock of the container transport trailer will be adopted with 12 sets which will be able to charge 1 40 ft container, 2 20 ft container or 1 container 20 ft in the middle. The design will be useful for the customers for the overweight checking .

The tire will be optional by the clients. And for the heavy duty type of the semi trailers, we will make the suitable ones. And in order to meet the different requirements of the marketing area, the special type will be used too such as in Gabon , Africa we will chose the 13R22.5 instead of 12R22.5 ones 'cause of local requirements .

about the shipping , there are special design for the trailers in order to reduce the cost of shipping. Like the front of the rear. And we have the special part for the shipping arrangement which can provide the professional support to reduce the cost of the shipping .

The bulk cement tankers are mainly designed for the dry bulk cement transportation which is more convenient and more effiective.

All trailers will adopt the superior steel to guarantee the quality and good looking out side. And the painting of the semi trailers will be made by the Polyurethane to prevent the rust while the shipping and the using .






Reference drawing








Our service

(1) The trailer must striectly tested before the shippment to guarantee the customer's profit

(2) 1year warranty without man-made broken

(3) 24 online solving all the questions about the technical or othere

(4) English, French, Spainsh support with special servers .

(5) Spare parts are available all the time

(6) Regular follow-up to guarantee the trailer in good condition .
