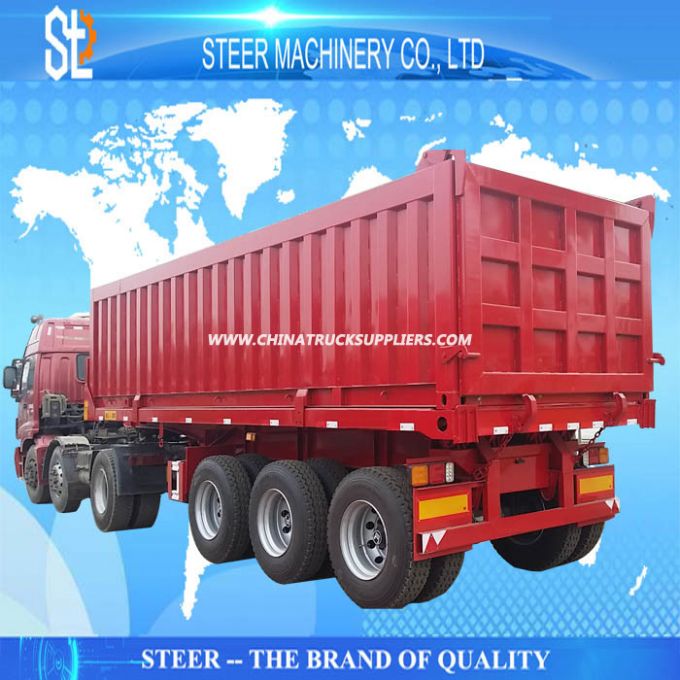

3 Axle End Dump Truck Trailer Tipping Trailer for Sale

3 axle end Dump Truck trailer tipping trailer for sale


Basic info

payload	40 T
Size	9000mm*2500mm*3800mm
Main beam	automatic welding with Q235 Bsteel ,
box	thickness according to the net payload from the customers requirement
Cross member	Q235 B steel
type	End dump
Side wall	reforced
Front board	including
Axle	Fuwa or optional. 16 ton axles
Suspension	Mechanical suspension
cylinder	#196 or # 214
Tire	12R22.5 or optional 12 pcs
Kingpin	3.5 or 2.0
Landing gear	JOST C200
Braking system	WABCO braking valve
ABS	Optional
Painting	anticorrosive prime 1time ,final paint 2times
Accessories	tool box, side fence ,rear fence ,tire rack etc
Date of delivery	15-30 days after the deposit

Description


Breaking pads with good quality to enlarge the working length in order to reduce the cost of changing , is able to enlarge hundreds of kilometers .

The leaf spring of the semi trailer is usually ten pieces which is much stronger than the normal type. And for the special type of the semi trailers, the bogie suspension is available too.
Twist lock of the container transport trailer will be adopted with 12 sets which will be able to charge 1 40 ft container, 2 20 ft container or 1 container 20 ft in the middle. The design will be useful for the customers for the overweight checking .

The tire will be optional by the clients. And for the heavy duty type of the semi trailers, we will make the suitable ones. And in order to meet the different requirements of the marketing area, the special type will be used too such as in Gabon , Africa we will chose the 13R22.5 instead of 12R22.5 ones 'cause of local requirements .

about the shipping , there are special design for the trailers in order to reduce the cost of shipping. Like the front of the rear. And we have the special part for the shipping arrangement which can provide the professional support to reduce the cost of the shipping .

The lifting systems are only used on the tipping van trailers and the tipping containers . The model of the lift cylinder, there are #172 #196 #214 and the special type for the side tipping.

The vice beam of the tipping trailer are important type too. The vice beam will designed according to the total payload of the trailers, we will increase the density in order to make the trailers stronger. And the vice beam is the powerful guarantee of safety lifting .

All trailers will adopt the superior steel to guarantee the quality and good looking out side. And the painting of the semi trailers will be made by the Polyurethane to prevent the rust while the shipping and the using .









Reference drawing







Our service

(1) The trailer must striectly tested before the shippment to guarantee the customer's profit

(2) 1year warranty without man-made broken

(3) 24 online solving all the questions about the technical or othere

(4) English, French, Spainsh support with special servers .

(5) Spare parts are available all the time

(6) Regular follow-up to guarantee the trailer in good condition .
