Shacman M3000 Cargo Trucks for Sale

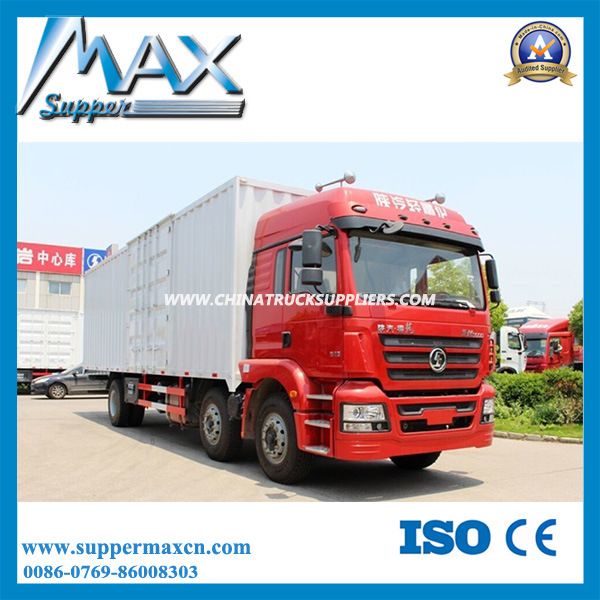

SHACMAN M3000 8x4 Cargo truck

The M3000 Seriesproducts are the latest success ofSHACMAN.Introduced in 2013 it quickly became one of our top selling products. The M3000 has an improved driver's cab utilizing advanced technologies from the German truck giant, MAN. The power of the M3000 series comes from Wei Chai Euro III, IV engines or the Euro III, IV and V electric control engines Made by Cummins. M3000 series utilize technologies introduced by MAN in its front/rear axles and its suspensions, cooling system of the chassis, the intake/exhaust systems and the chassis structure/layout. Powerful, safe, reliable and comfortable, the M3000 is a refined product line positioned in the high-end market of the truck manufacturing industry. The M3000 series has many optional equipments to customize from; it is a new generation of products that meets the toughest demands and requirements for all purposes under any working condition.
The Specification sheet

Model	SX1314JP366
Completekerb mass (kg)	12170
GVW (kg)	45000
Loading Weight(kg)	32830
Dimensions
Max.length(mm)	11025
Max.width(mm)	2490
Max.heigh(mm)	3210
Front / Rear overhang(mm)	1525/2750
Wheel base(mm)	1800+3600+1350
Track width(mm)	2036/1850
Performance
Max.speed (km/h)	86
Min.turning circle(m)	24
Min.ground clearance(mm)	314
Approach / Departure angle (°)	20/12
Max.gradeability(%)	32
Engine	Wei CHAI Power,WD615.44, 320HP, Euro 2 Emission Standard
Transmission	FAST Brand, 9JS135, Manual control, 9 forward, 1 reverse
Clutch	φ430, Spring plate, diaphragm spring
Brakes	Drum type
Steering	ZF Technology
Chassis	300×80×(8+7)
Suspension	Leaf spring suspension
Front axle	Hande, 6500kg+6500kg
Rear axle	Hande, 16000kg+16000kg
Tires	12.00-20
Fuel tank	380L, metal
Cab	MAN D'LONG F2000,Lengthened flat roof, with one sleeping bed, With manual control A/C
Cargo Box	8500×2326×800
