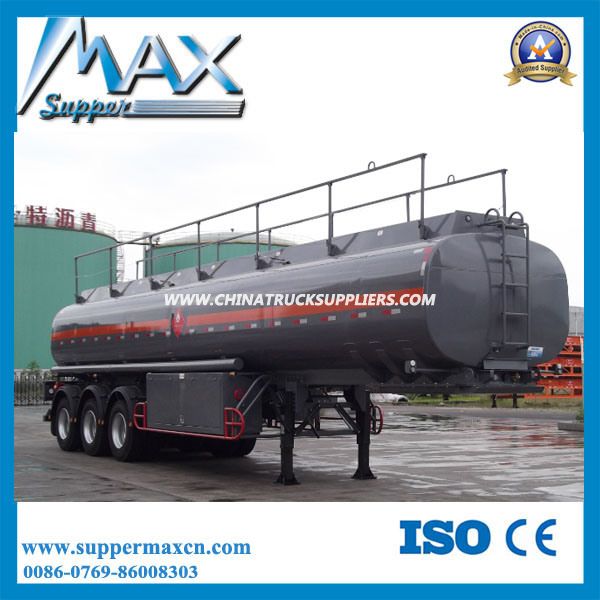

Oil Tanker Semitrailer 40000L with 3 Axle 5 Compartment/Semitrailer Tanker

Specifications
Oil Tanker Semitrailer With 3 Axle 6 compartment

1 Applied carbon steel sheet Q235-A; Stainless steel; Aluminium alloy that in accordance with the international standard. Thickness is 5-10mm.
2 Apply the famous pump.
3 The main parts implements automatic welding, while the accessories apply carbon dioxide welding to ensure the tank in good performance.
4 Sub crossbeam apply rectangle steel sheet that thickness more than 5mm, stick out in one time.
5 Fire extinguisher replaced on the back of the truck for the emergency.



Product Description

FUEL TANKER TRAILER SPECIFICATIONS
( 3 axles fuel tank semi trailer)
Overall dimensions (L*W*H)	13000*2500*3950 mm
Load capacity	Approx 40000 kg
GVW	Approx 50000 kg
Mass in working order	Approx 10000 kg
Axle specification	13T*3pcs (FUWA axle)
Axle load	-/24000 kg (3 axles)
Wheel base	7200+1310+1310 mm
Front / Rear track base	-/1840/1840/1840 mm
Suspension system	Mechanical suspension, optional air suspension.
Front / Rear suspension	-/1600 mm
Approach / Departure angle	-/12 °
Tire specification	12R22.5×12pcs
Spring few films	-/8/8/8, or -/10/10/10
King pin	90 # China brand kingpin, optional JOST.
Landing leg	28T load landing leg, optional JOST.
Braking system	Optional: China brand 4S/2M ABS / WABCO ABS
Voltage	24 V
FUEL TANKER SPECIFICATION
Tank Shape	Round square. (goose neck running gear)
Tank dimensions (L*W*H)	4100*2490*1900+8600*2490*2200 mm (square round shape)
Load capacity	50000 Liters/ 50000L
	medium: gasoline / diesel
Compartment	5 compartments or according to your requirements
Tank Material	Carbon steel, Stainless steel or ALUMINIUM Alloy
Baffle plate	6pcs
Manhole	DN500 (optional few manhole, by the branch warehouse, EURO standard)
Optional equipments	Pump / Vapour recovery system / Vent / Branch warehouse / bottom valve
ACCESSORIES
Mudguards	PVC Mudguards
Side protection	Nil.
Fire extinguishers carriers	2pcs
Spare tire carrier	Spare Wheel Carrier:2 including a riser
Tool box	1 tool box with our factory's standard free tools
