2 Axle Round Shape Oil Tank Semi Trailer

Dimension of semi trailer
Tare Weight of LPG Trailer	11500KGS
Pay Load	25000KGS
Overall Length	11400mm
Overall Width	2480mm

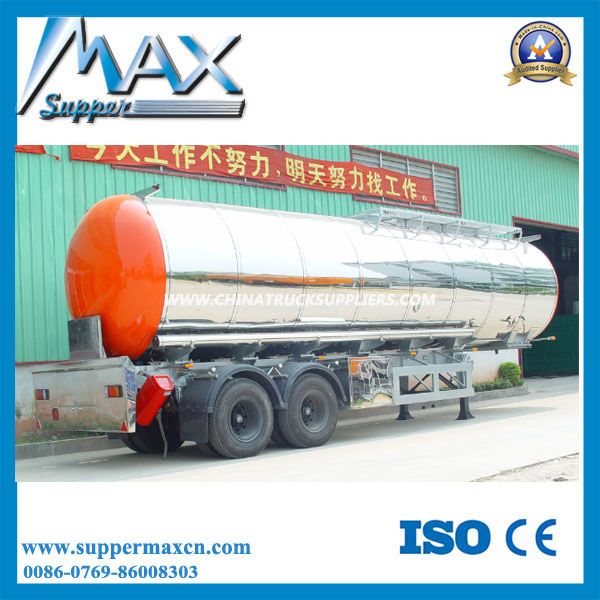

Photo for reference, finial product can be made according to exact requirements lpg tank trailer
Tank
Transporting Media		Dimethylmethane, Liquid Ammonia, Liquid SO2, LPG,Butane
Shape		Round Shape semi trailer
Total Volume(m3)		56CBM 80cbm 100cbm 50cbm 120cbm 20cbm
Tanker Body Steel Sheet		Q235A/14mm semi trailer
End plate		Q235A14mm, by punching
Parts for Tank
Manhole cover		3 sets of 500mm/Q235 manhole fixed on top of Tank, with breather valve
Unloading valve		2-3 sets of DN80 fixed at button of Tank
Pipeline at button of tank		4"seamless steel tube/Q235
Labeling system		Oil Type Indication
Anti-static electricity system		pulling, wire carrier, sheet copper (6 sheet-standard layout)
Other Parts of semi trailer
Ladder		1 unit at front of Tank
Guard on top of Tank		Zinc galvanized -guard-net
Oil hose box		Circular single hole tube, 1 unit on each side
Oil hose		2 unit, 3" x 6m size in black rubber
Side guard		cross bar-structure
Rear button guard		Fixed type
Work tank deck		Box type
Fire extinguisher box		2 unit at the back of each side
Mud guard		Steel structure in trapezoid form
Lights and wire		24V, 7 coils with lights for parking, reverse, instruction, head lamp and end lamp
Chassis of semi trailer
Main Beams		Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes
Axle		3 axle
		BPW brand FUWA brand
Landing Gear		JOST Two-speed, manual operating, heavy duty landing gear
King Pin		JOST 2"standard bolt-in king pin
Suspension		German design mechanical suspension for semi trailer
Pneumatic Braking System		WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
Wheel rim		8.25R22.5 wheel rim
Tire		11R22.5 tubeless tire with one spare tire for semi trailer
Painting		Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Semi Trailer Features:
1.Apply to the transport loose cargo light, soft, with a low center of gravity and light weight, the quality of the utilization factor, carrying capacity and other characteristics
2. Overall assembly and disassembly convenient, can be more than one car, van, car warehouse gate, tailgate car at the same time.
3.Innovative design, tailored to local transport environment analysis on the basis of full understanding of, learn from the advanced design concept, many innovative.
4.advanced means of production technology and perfect testing equipment to protect the the product overall structure is reasonable, reliable performance.
5. frame body Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.
6. Well-known brand axles, suspension systems, high performance, and reliable to use, to ensure the good performance of the vehicle.
7.Full braking and electrical systems at home and abroad in accordance with ISO standard, optional ABS system, braking, lighting is absolutely safe and reliable.
8.frame overall spray primer treatment, paint spraying fine surface quality of maritime anti-corrosion standards.
9.Products fully comply with relevant national standard GB1589, GB/T6420, at the same time to meet the individual needs of customers.

WHY you trust and choose us?

1. Complete production line, from trailer Design to Delivery.

2. ISO 9001: 2008 and CCC quality certificate.

3. Use 100% famous brand spare parts in China for our products.

4. OEM/ODM service. Just tell us your idea, our R&D team is standing by.

5. We are trusted by the clients from Africa, Australia, South America, Indonesia and so on.

6. We accept 100% inspection, welcome to our factory at any time.

Max International Trading Co., Ltd is a large-scale, professional production and trade in one of the leading export. Our company provides all kinds of high quality semi-trailer, Dump Truck, tractor, cement mixers and related accessories etc..
Our company covers an area of 500000 square meters, of which the building area of 300000 square meters. We have 1660 employees and more than 80 professional international engineers. The technical center of our company is a high salary to hire international engineers to make sure that our products can meet the technical requirements of customers in different regions of the world.
Through the modernization, specialization and scale of the direction of unremitting efforts, the company successfully passed the certification of ISO9001, South Africa SABS-3 and TS16949, these harvest will undoubtedly our company's production, technology and management to a new level.
"Quality first, good service, diligent, dedicated the future" is our business philosophy. So far, our products have successfully covered more than 90 international and regional, including South Africa, Australia, Africa, the Middle East and South asia. Max International Co. Ltd. will have the international reputation of the future continue to struggle diligently wit!

We Glad to tell you we supply all kinds of HOWO and Shacman Trucks,
and also Truck Spare parts,such as Engine parts,Clutch part,Axle,Tyre,Fifthwheel,
etc,If you also have need of truck parts,let us know,
we will make the best service for you!
