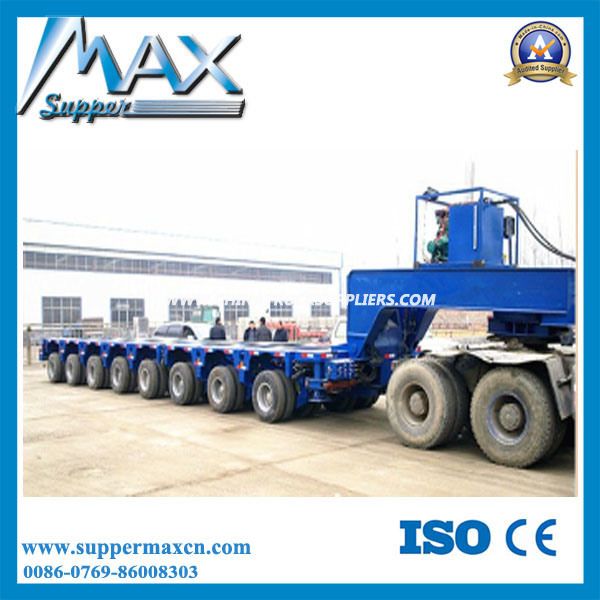

100t-200t Lowbed Semi Trailer/Lowboy Truck Trailer with Dolly

LOW BED Semi TRAILERSpecifications
1.Lowboy Truck Semi Trailer
2. CCC&ISO certificate3. Competitive price
(could be load by th container, platform:8000x3000mm)

DIMENSIONS
TareWeight	10000kg
Payload	80000kg
TotalWeight	90000kg
OverallLength	12000mm
OverallWidth	2500mm(can extend to 3000mm)
OverallHeight	3144mm
Wheel track	1840mm
Wheelbase	7400mm+1310mm+1310mm
SPECIFICATION
Mainframe	Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. 500mm Height beam, Top Flange 20mm, width 140mm; Middle Flange 10mm; Bottom Flange 20mm, width 140mm
Floor	Steel Sheet 3mm thickness
Axle	Three units of L1-13T axle
Suspension	A couple of heavy duty FUWA under-slung 3-axle suspension
Leaf Spring	Six sets of reliable local brand, 8-piece leaf spring, 16x90mm
King Pin	One unit of 2" bolt-in kingpin
Landing Gear	Two-speed ,manual operation, heavy duty SAF 19" linked landing gear
Wheel Rim	13 units of8.25-22.5 rim, including 1unit spare rim
Tyre	13 units of 11R22.5 tire, including 1unit spare tire
Spare Wheel Carrier	One set of spare wheel carrier
Rear Ladder Spring	Four pieces of rear ladder spring
Pneumatic Braking System	Two units of WABCO RE 4relay valve; four units of T30/30 chamber; two units of T30 chamber, two units of reliable local brand 45L air tank; Two units of reliable local brand standard coppery air-connector.
ElectricalSystem	One unit of JAEGER POWAY, 24V 7-pin ISO 1185 socket; Two sets of reliable, local brand standard rear light, (Turn light, rear reflector, side light, side reflector etc.) One set of DAFA (brand) 6-core standard Cable.
Painting	Sand blasting before painting; One coat of primer, anti-corrosion; Two coats of finish painting; Color advised by client.
Accessory	One box with aset of standard trailer tool

WHY you trust and choose us?

1. Complete production line, from trailer Design to Delivery.

2. ISO 9001: 2008 and CCC quality certificate.

3. Use 100% famous brand spare parts in China for our products.

4. OEM/ODM service. Just tell us your idea, our R&D team is standing by.

5. We are trusted by the clients from Africa, Australia, South America, Indonesia and so on.

6. We accept 100% inspection, welcome to our factory at any time.

If you have cooperation intention, then please send inquiries to us right now!
