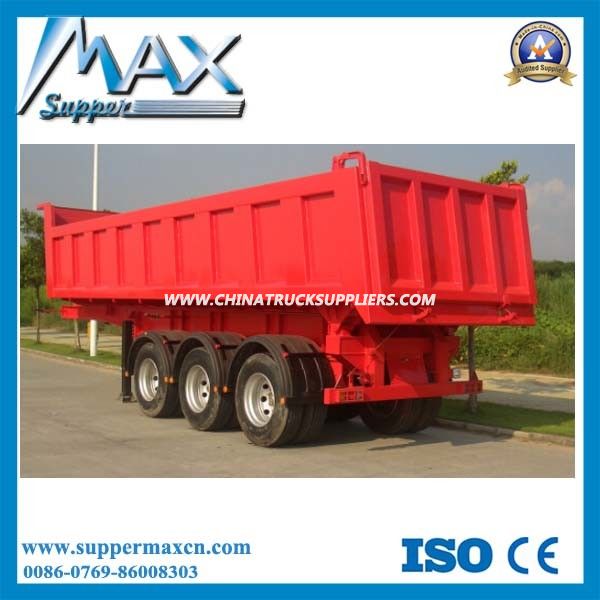

24cbm Tipper Trailer

24CBM Tipper Trailer

TECHNICALDATA
TareWeight		11000kgs
PayLoad		35000kgs
TotalWeight		46000Kgs
OverallLength		9900mm
OverallWidth		2465mm
OverallHeight		3726mm
Wheeltrack		1840mm
Wheelbase		4250mm+1300mm+1300mm
DUMPERBODY
Volume			24m3
Externaldimension(LxWxH):			9680mmx2465mmx2240mm
Innerdimensions(LxWxH):			8720mmx2300mmx1200mm
Floor			8mmthickness
Sidewall			6mmthickness
Frontwall			8mmthickness
SPECIFICATION
Mainframe	Heavydutyandextradurabilitydesigned;OptingforhightensilesteelQ345B,weldedbyautomaticSubmerged-Arcprocesses 500mmHeight,TopFlange16mm,width140mm;MiddleFlange8mm;BottomFlange20mm,width140mm
Hydraulicsystem	OnesetofHYVAFC191-5-06180cylinder
Axle	ThreeUnitsofBPW13Tonaxle
Suspension	AcoupleofLUDING(brand)Germandesigntri-axlesuspension
LeafSpring	Sixsetsofreliablelocalbrand,13-pieceleafspring,11x100mm
KingPin	OneunitofJOST2``standardbolt-inkingpin
LandingGear	Two-speed,manualoperation,JOST-D200heavydutylandinggear
WheelRim	Thirteenunitsof9.00-22.5rim
Tyre	Thirteenunitsof12R22.5tyre
PneumaticBrakingSystem	TwounitofWABCORE4relayvalve;fourunitsofT30/30springbrakechamber;twounitsofT30brakechamber twounitofreliablelocalbrand45Lairtank;twounitsofreliablelocalbrandstandardcopperyair-connector.
ElectricalSystem	OneunitofJAEGERPOWAY,24V7-pinISO1185socket;twosetsofreliable,localbrandstandardrearlight, turnlight,rearreflector,sidelight,sidereflectoretc. onesetofDAFA(brand)6-corestandardCable.
Painting	Sandblastingbeforepainting; onecoatsofprimer,anticorrosion twocoatoffinishpainting; colouradvisedbyclient
Accessory	Oneboxwithasetofstandardtrailertool

WHYyoutrustandchooseus?

1.Completeproductionline,fromtrailerDesigntoDelivery.

2.ISO9001:2008andCCCqualitycertificate.

3.Use100%famousbrandsparepartsinChinaforourproducts.

4.OEM/ODMservice.Justtellusyouridea,ourR&Dteamisstandingby.

5.WearetrustedbytheclientsfromAfrica,Australia,SouthAmerica,Indonesiaandsoon.

6.Weaccept100%inspection,welcometoourfactoryatanytime.
