3 Axle 60 Ton Dump Tipper Truck (semi trailer)
- USD 6000.00 /Unit
- 1 Unit
- 13 Unit
- 19 days
Product Description

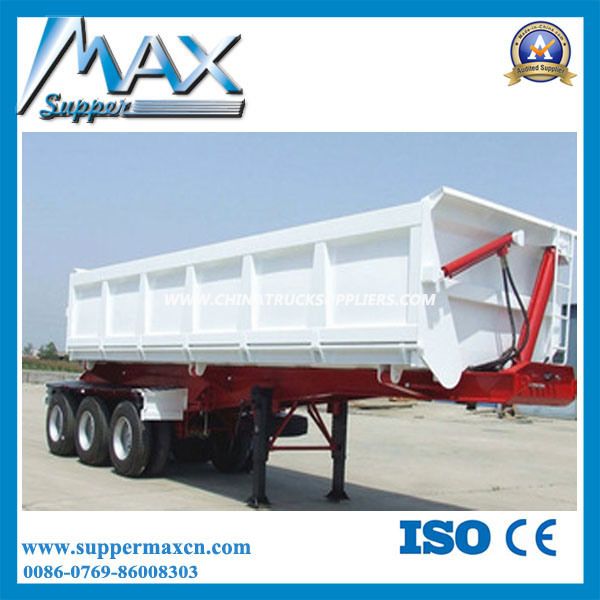

3 axle 60 Ton dump semi trailer tipper truck for grains transportation
3 axle 60 Ton dump semi trailer tipper truck for grains transportationWHY you trust and choose us?
1. Complete production line, from trailer Design to Delivery.
2. ISO 9001: 2008 and CCC quality certificate.
3. Use 100% famous brand spare parts in China for our products.
4. OEM/ODM service. Just tell us your idea, our R&D team is standing by.
5. We are trusted by the clients from Africa, Australia, South America, Indonesia and so on.
6. We accept 100% inspection, welcome to our factory at any time.
DIMENSIONS | |
Tare Weight | 11000kg |
Payload | 50000kg |
Overall Length | 10205mm |
Overall Width | 2448mm |
Overall Height | 3590mm |
Wheel Track | 1840mm |
Wheelbase | 4140+1360+1360mm |
DUMPER BODY | |
Volume | 30CBM |
Inner Dimension | 8500x2300x1600mm |
Side Thickness | 6mm / Q345B |
Bottom Thickness | 8mm / Q345B |
SPECIFICATION | |
Main frame | Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welding by automatic Submerged-Arc processes 500mm Height "I" beam, Top Flange 16mm,width 140mm; Middle Flange 8mm; Bottom Flange 16mm,width 140mm |
Axle | 3 units of HO'S-12T axle |
Suspension | A couple of German design mechanical 3-axle suspension HO'S brand |
Leaf Spring | 6 sets of reliable local brand, 13-piece leaf spring, 11x100mm |
King Pin | One unit of 3.5" standard bolt-in kingpin |
Landing Gear | Two-speed, manually operating, heavy duty JOST D200 landing leg |
Wheel Rim | 13 units of 9.00-22.5 rim,SUNRISE brand |
Tire | 13 units of 12R22.5 tire,AAA brand (one unit for spare use) |
Spare Wheel Carrier | One set of spare wheel carrier including a riser |
Pneumatic Braking System | Two units of WABCO RE 4 relay valve; four units of T30/30 spring brake chamber; two units of T30 brake chamber, two units of reliable local brand 45L air tank; two units of reliable local brand standard coppery air-connector. |
Electrical System | One unit of JAEGER POWAY, 24V 7-pin ISO 1185 socket; tail lamp with turn signal, brake light & reflector, side lamp etc. One set of DAFA (brand) 6-core standard Cable. |
Painting | Sand blasting processing clean rust; One coat of anticorrosive primer; Two coats of finish urethane paint; Color as customer choice |
Tipper Cylinder | HYVA FC196-5-07300 |
Drawbar | 100x50x4mm RHS. 1600mm long with 2x10mm safety chain |
Lower Chassis | 100x50x4mm RHS (Not angle) |
Upper Chassis | 100x50x3mm RHS (Not angle) |
Floor & Side Panels | 2.5mm Checker plate, fully welded to upper chassis (Not cheap Ribbed zinc plate) |
Mudguard | 2.5mm Checker plate |
Axle | 50mm Solid square, disc brake for front axle |
Spring | 7leafs rocker roller suspension (not 5leafs or 6leafs cheap and light spring) |
Wheel | 185R14C wheel with 14inch white paint rim |
Jockey wheel | 6inch top wind heavy duty jockey wheel. with E-mark and DOT certificate |
Coupler | 50mm AU standard coupling, 1 7/8 NZ standard coupling, EU standard coupling |
Lights | LED Lights with 7pin plug and 7 core wiring. E-mark and DOT certificated |
Toolbox | 2.5mm check plate Toolbox for Battery and Motor |
Tipper Sys. | 5 stage ram |
45 degree box tipping | |
3500KGS tipping capacity | |
Motor | 12V, 15L, oil tank |
Surface Treatment | Hot dipped galvanized |
