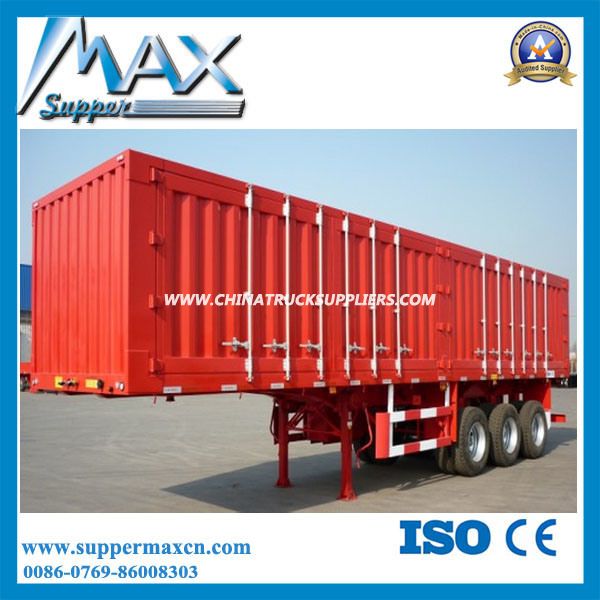

3 Axle Van/Box Semi Trailer

3axleVan/Boxsemi trailer
Specifications
1. Wood Transport Semi Truck Trailer
2. CCC&ISO certificate
3. Competitive price

Overall Dimension(L*W*H)	13000×2550×2000mm
Kingpin Setting	1263mm
Axle Space	6550mm+1310mm+1310mm
Thickness of the Van	1mm
Tare weight	8600kg
Payload	50000kg
G.V.W.R	58600kg
Height of the Van	2000mm

Configuration:

Main Beam	500,14/6/14mm
Side Wall	16# Profile steel
Floor	3mm flat base
Crossbeam	Rectangular tube
Kingpin	Baohua/Jost 3.5' welded type
Landing gear	Tfoc/Jost 28T two-side operation
Axle	Fuwa Axle, 16 ton capacity/set,3pcs
Tyre	12.00R20
Rim	8.5-20
Brake System	Dual air brake system, WABCO relay emergency valve, none ABS system.
Brake Chamber	Type 30/30 on all axles
Tool box	1000mm, 1pcs
Spare Tire Carrier	2 units
Voltage	24V
Receptacle	7 holes
Painting	As customer's request

about us:
Supper Max International Co., Ltd is one leader exporter who is specialized to produce a range of high-quality Semi Trailers, Dump Truck, Tractor Truck, Oil Tanker, Cement Mixer, and relevant spare parts and so on.
Our factory start from 1993, with nearly a decade of experience, we have a stable, professional service team, exported to South America, Australia, Africa, Middle East, Southeast Asia, Japan and other more than 90 countries and regions.
Our technology centers hire foreign engineers to ensure our products could meet the technical standards in different areas of the world and accurate grasp the demands of our customer. The PC series semi trailers are our newest develop products with characters of beautiful shape, reasonable structure, strong bearing capacity, good comprehensive performance and easy maintenance. Our company use international and domestic reliable good brand spare parts for our products, such as America FRUEHAUF, German BPW, England York, Fuwa axles and braking systems to guarantee the safe transportation.
With towards the direction of modernization, specialization and large-scale, we've passed the ISO9001 certification, the South African SABS-3 certification, granted the TS16949 certification, this promotes our production, technology and management up to a new level.
We support you good service, payment terms, delivery time and logistics control; we are seeking distributors worldwide for more information.
WHYyoutrustandchooseus?

1.Completeproductionline,fromtrailerDesigntoDelivery.

2.ISO9001:2008andCCCqualitycertificate.

3.Use100%famousbrandsparepartsinChinaforourproducts.

4.OEM/ODMservice.Justtellusyouridea,ourR&Dteamisstandingby.

5.WearetrustedbytheclientsfromAfrica,Australia,SouthAmerica,Indonesiaandsoon.

6.Weaccept100%inspection,welcometoourfactoryatanytime.

If you have cooperation intention, then please send inquiries to us right now!
