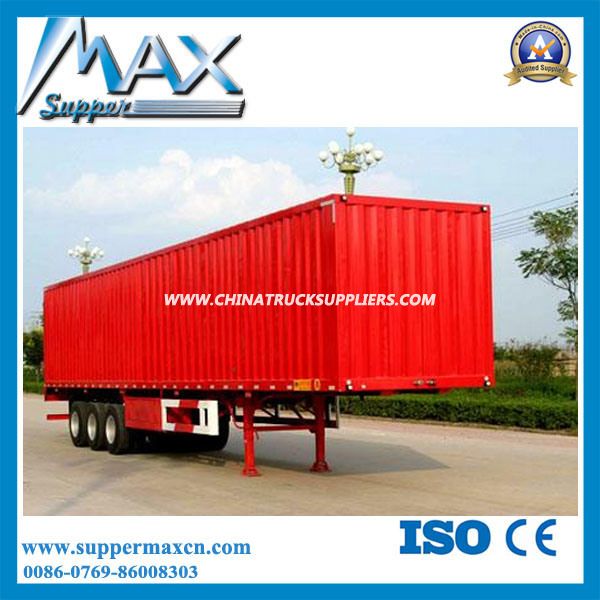

3 Axle 50 Ton Truck Van Type Semi Trailer for Sale

3 Axle 50 Ton Truck Van Type Semi Trailer for Sale

DIMENSIONS
TareWeight	11000kg
Payload	50000kg
OverallLength	10205mm
OverallWidth	2448mm
OverallHeight	3590mm
Wheel Track	1840mm
Wheelbase	4140+1360+1360mm
DUMPER BODY
Volume	30CBM
Inner Dimension	8500x2300x1600mm
Side Thickness	6mm /Q345B
Bottom Thickness	8mm /Q345B
SPECIFICATION
Mainframe	Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welding by automatic Submerged-Arc processes 500mm Height "I" beam, Top Flange16mm,width 140mm; Middle Flange8mm; Bottom Flange16mm,width 140mm
Axle	3 units ofHO'S-12Taxle
Suspension	A couple of Germandesignmechanical 3-axle suspensionHO'S brand
Leaf Spring	6 sets of reliable local brand, 13-piece leaf spring, 11x100mm
King Pin	One unit of 3.5"standard bolt-in kingpin
Landing Gear	Two-speed, manually operating, heavy dutyJOST D200landing leg
Wheel Rim	13 units of 9.00-22.5 rim,SUNRISE brand
Tire	13 units of 12R22.5 tire,AAA brand (one unit for spare use)
Spare Wheel Carrier	One set of spare wheel carrier including ariser
Pneumatic Braking System	Two units of WABCO RE 4relay valve; four units of T30/30 spring brake chamber; two units of T30 brake chamber, two units of reliable local brand 45L air tank; two units of reliable local brand standard coppery air-connector.
ElectricalSystem	One unit of JAEGER POWAY, 24V 7-pin ISO 1185 socket; tail lamp with turn signal, brake light &reflector, side lamp etc. One set of DAFA (brand) 6-core standard Cable.
Painting	Sand blasting processing clean rust; One coat of anticorrosive primer; Two coats of finish urethane paint; Color as customer choice
Tipper Cylinder	HYVA FC196-5-07300
