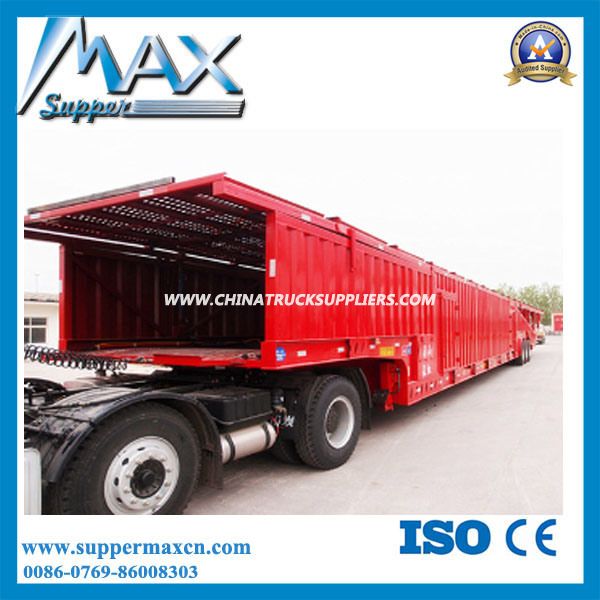

Top Manufacturer Supplier Tri-Axle Car Transporter Trailer

Top Manufacturer supplier Tri-axle Car Transporter Trailer
Main Qualities:
1:Main frame adopts HG60(δb=60kg/mm2) steel, high box shape, high strength, not easy to deformation, good ability for concentrated loading.
2:The connecting between unit module and unit module is multiple plates. The advantage as follows:
a. High connecting strength, not easy to break;
b. Convenient combine, shorter combine time.

	Combined hydraulic semi trailer technical specification
1	Normal payload(per line)	22,500kg
2	Tare weight(per line)	3,500kg
3	Max. total weight(per line)	32,000kg
4	Tires quantity	8units/line
5	Tire size	7.50R15&215/75R17.5
6	Rim size	6.00-17.5(10 holes)
7	Approach angle/ Departure angle	20/30
8	Module speed (without load) (km/h)	50km/h
9	Rated payload (tons/km/h)	18km/h
10	Wheelbase	735/1820 mm
11	Min. Height of platform	770mm
12	Total lifting stroke of platform	600 mm(+290 -310)
13	Ground clearance (normal running)	≥300mm,Min. 148mm
14	Wheelbase	1,550 mm
15	Width of platform	3,000 mm
16	Max. Turning angle of 1st axle	55°
17	Brake system	Dual pipeline control. Dual shoe brake and spring brake for all axles
18	Hydraulic pipeline	3 and 4 points support
19	Steering mode	All Wheels steering by Hydraulic Service Steering or Manual Control Steering
Remark:		Payload(T) of each axle line: 22 22.5 15 Speed(Km/h): 5 18 40

WHYyoutrustandchooseus?

1.Completeproductionline,fromtrailerDesigntoDelivery.

2.ISO9001:2008andCCCqualitycertificate.

3.Use100%famousbrandsparepartsinChinaforourproducts.

4.OEM/ODMservice.Justtellusyouridea,ourR&Dteamisstandingby.

5.WearetrustedbytheclientsfromAfrica,Australia,SouthAmerica,Indonesiaandsoon.

6.Weaccept100%inspection,welcometoourfactoryatanytime.
