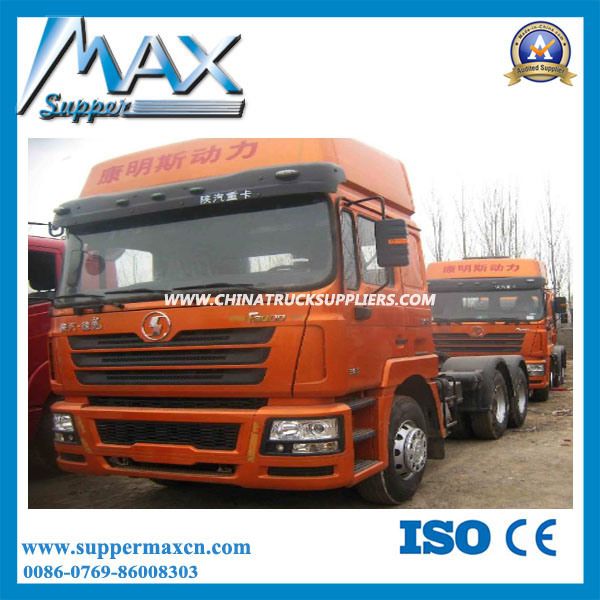

Shacman Dlong Tractor Truck 6X2

tractor truck
1.Original HINO P11C-VL engine.
2.Euro IV Emission standard
3.Smart ECU

Model No.	YC4250SS2PK4
Driving Type	6X2
Max Trailer Weight(kg)	39470,39405,40000
Max Gross Weight(kg)	25000
Dimension(LxWxH)(mm)	7020x2495x3030,3520(High roof)
Wheelbase(mm)	3400+1410
Front/Rear Wheeltrack(mm)	2060/1855/1855
Front/Rear Suspension	1410/800
Min. ground clearance	≥200
Min. turning circle diameter	≤17.6
Cab passenger	2 or 3
Tare weight(kg)	9400,8800
Max Speed(km/h)	100,90
Engine Model No.	P11C-VL
Rated Power(ps) kw/r/min	(380)280/1900
Max Torque Nm/r/min	1595/1100~1600
Aftertreatment system	SCR
Displacement(L)	10.52
Clutch	DSF-430
Gearbox	ZF16S1650
Driving Axle	THD18
Main reducer speed ratio	3.076,3.25,3.583,3.9,4.555
Tyres	11.00R20,295/80R22.5
Emission standard	GB17691-2005(Euro IV),GB3847-2005
Oil Tank volume(L)	380
Cab	Four-point suspended, electronically controlled hydraulic reversible cab

Product Description

We can supply all brands Dump Truck made in China. HOWO,SHACMAN,BEIBEN,DONGFENG,SINOTRUK,POWER STAR, FOTON, C&C, and so on. More details for these trucks, feel free to contact us please.
Various Dumper Truck, tons Dumper Truck, Faw Dumper truck, Dumper Truck FAW, Self-Dumping Trucks, Faw Truck, Mining Dump Trucks, Dumper Trucks, Heavy Truck, Dump Tipper, Truck, China Truck, China Dump Truck, Used Truck, dumper truck, dumper, tipper truck, Qingdao Hetanch truck
FAW 30 Tons dumper
Type Number CA3256P2K2T1EA81
Overall dimensions Length 8393mm
Width 2500mm
Height 3280, 3530mm

Axle base (full load) 3825+1350, 4110+1350
Front overhang(loaded) 1493/ 1493
Rear overhang(loaded) 725 /890.

Wheel base Front wheel 1939, 2020
Rear wheel 1840/1840
Under front axle 285
Under rear axle 290
Passing angle(loaded) Approach angle 25/25
Departure angle 30/27

Mass
Parameter Curb weight (kg) 12080, 12400
Gross truck weight 37000
Payload weight(kg) 25725, 25470

ENGINE: WP10.310NE31, WP10.336NE31, WP10.340E32
TRANSMISSION: CA10T, FULLER 9JS135
REAR AXLE: LB300
TIRE: 12.00R20
Cargo box dimension: 5600/6000x2300x1500.

NOTE:
We are a leading special purpose vehicle & vehicle body manuifacturer from China, our products: Refrigerated truck & body, Insulated truck & body, Dry Cargo truck & body, Store/stake truck & body, Explosion-proof truck & body, Dump truck & body, Truck crane & body, Mobile catering truck & body, Mobile stage truck & body, Mobile shop, Mobile kitchen, Cargo van, etc.

FAQ
FOB or CIF terms,T/T or L/C, small order is accepted
Optional:silicon oil fan, driving recorder, right hand driving,
Pto is included in tipper chassis.
Cargo body:
Volume range: 15-20m3
Thickness bottom 10 mm, side 6 mm(can be increased)
Hydraulic lifting system with f type, t type and front lift type(hiva brand is optional).
Q: How can we trust your company?

A: We are the official authority company by FAW Qingdao Automobile Company. And we are registered in the Commercial Department of China, with the whole qualification for exporting, you would feel relax and safe to do business with us. We are your reliable partner.



Q: Can u provide the ISO9001 certificate or some others related?

A: Yes. We have been exporting trucks for years. Rich experience for exporting to different countries, African market, Russia, South America, this help us better know have to handle with different certificates needed.

Q: How about warranty item?

A: We could support u original spare parts. And also email or telephone assist in the following days. If necessary, for large quantity ordered, our engineer could go for technical assist.

Q: What's the brand of your truck?

A: Our brand is FAW, First Automobile Works is the biggest truck manufacture in China, our products cover all series such as tractor truck, tipper truck, cargo truck, and other special trucks.




If you have cooperation intention, then please send inquiries to us right now!
