Cargo Trailer, 40ton 3 Axles Cargo Semi Trailer for Sale
- USD 11000.12 /Unit
- 1 Unit
- 41 Unit
- 14 days
Product Description
Specifications
1.Side Wall Semi Trailer
2. CCC&ISO certificate
3. Competitive priceabout us
2. 2axle,3axle,4axle semi trailer
3.payload 20tons-100tons
WHYyoutrustandchooseus?
1.Completeproductionline,fromtrailerDesigntoDelivery.
2.ISO9001:2008andCCCqualitycertificate.
3.Use100%famousbrandsparepartsinChinaforourproducts.
4.OEM/ODMservice.Justtellusyouridea,ourR&Dteamisstandingby.
If you have cooperation intention, then please send inquiries to us right now!
1.Side Wall Semi Trailer
2. CCC&ISO certificate
3. Competitive priceabout us
We are astrong special purposeheavy dutyvehicle manufacturer in China. We can provide our customers with various trucks/trailers and spare parts for special usage.
We have passed the ISO9001-2000 attestation. It products has passed the 3C (China Compulsory Certification) authentication.
We always provide our clients with good products and perfect service .What's more, our products are 100% quality control and with absolutely competitive price. We have exported our trailers to many countries all over the world.
2. 2axle,3axle,4axle semi trailer
3.payload 20tons-100tons
Trailer Model | Side Wall Cargo Trailer |
Overall Dimension(Lx Wx H)(mm) | 13000*2500*3200 |
Function | transport merchandise, like juice packs, rice etc. |
Thickness(mm) | Bottom: 3mm, Side: 1.5mm |
Loading Weight( KG) | 50000 |
Axle Brand | BPW 13TON Axle |
Axle Number | Three |
Suspension system | Standard Mechanical suspension |
Steel Spring | 10/10/10leaf spring suspension |
The material of Main beam | The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm,middle plate is 8mm. |
Tire Type and quantity | 12R22.512units |
Traction Pin | 90mm |
Spare Wheel Bracket | 2 pieces |
Tool Box | 1 Standard |
Landing Gear | Standard brand 28ton external |
Brake system | Dual Line braking system |
Brake air chamber | Six big double air chamber |
Electrical system | 1. Voltage: 24v2. Receptacle: 7ways (7 wire harness) |
Tail lamp with turn signal, brake light &reflector, side lamp etc. | |
One set 6-core standard Cable. | |
Side Guard | According to customer's requirement |
Painting | Blue |
Packing | Polish with wax before shipping |
WHYyoutrustandchooseus?
1.Completeproductionline,fromtrailerDesigntoDelivery.
2.ISO9001:2008andCCCqualitycertificate.
3.Use100%famousbrandsparepartsinChinaforourproducts.
4.OEM/ODMservice.Justtellusyouridea,ourR&Dteamisstandingby.
If you have cooperation intention, then please send inquiries to us right now!

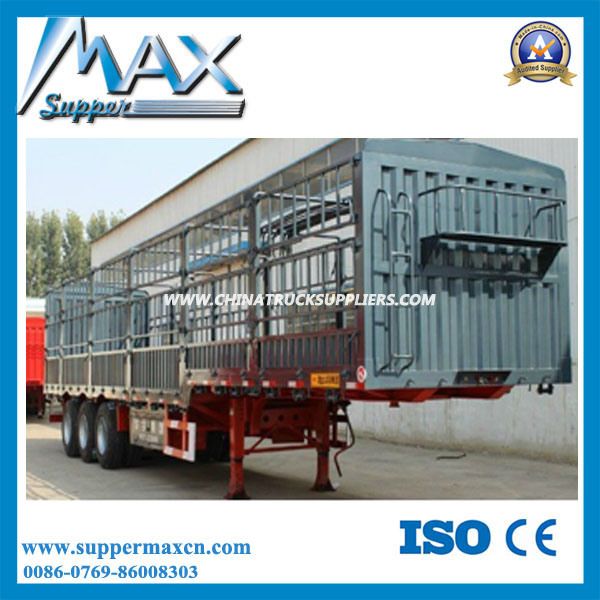

Product Images
