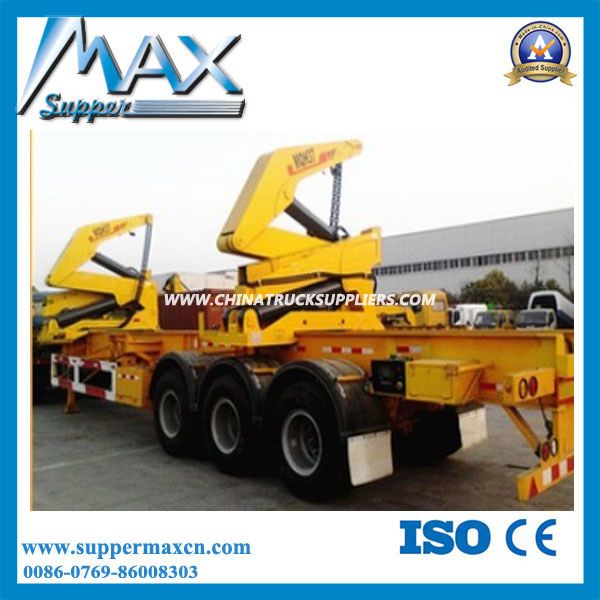

20FT-53FT Swing Lift / Container Side Lifter Trailer/ Side Loader

Transportation Advantages of QYJ-36 SIDE LOADER

The semi-trailer is used for lifting and carrying two 20ft containers or one 40ft container in port,
Station and freight yard, the trailer's hydraulic system power is from PTO in tractor truck, it can be operated both wireless remote control and manual operation.
The semitrailer is used for lifting and carrying two 20ft containers or one 40ft container in port, station and freight yard, the trailer's hydraulic system power is from PTO in tractor truck, it can be operated both wireless remote control and manual operation. Dimensions and lifting capacities are made under request.

Lifting capacity of the cranes
16 ton or 36 ton
Semi-trailer:
Straight or Gooseneck
20´ and 40´´
3 axles
Single or double tire
Adopting imported electromagnetic valve
Two speed operation
Double pumps and dual circuit hydraulic system
Adopting intelligent safety protection system.

1. This vehicle has the ability of loading, unloading and transportation of containers,efficient and reliable;
2. The main supporting assembly choose domestic well-known brand, quality reliable and safe operation;
3. Semi-trailer frame longitudinal beams adopt high profile and variable cross-section design,and crane structure is made of high strength steel plate by welding. After the stress test ,the vehicle can meet the requirements of bearing;
4. Crane can slip front and back to adapt to the loading, unloading and transportation of the 20 feet and 40 feet standard container;
5. Lifting operation adopting a wireless remote control system, equipped with imported remote-controller, easy operation, reliable micro-motion;
6 .Manual emergency operation mode and safety insurance reserved;
7. The crane is equipped with imported electromagnetic proportional valve, the control precision;
8. Two-speed operation for no-load overloading working condition ;
9. The crane adopts double pump hydraulic system of double circuit, and will not be affected by slanting load with reliable operation.
10. Lifting operation using intelligent security protection system, dangerous operations will be locked intelligently.
11. The vehicle safety control system, the installation of one key flameout switch;
12. Crane equipped with imported centralized lubrication system, electric control is easy to operate;
Container transport semi-trailer technical parameters of side loading

item	unit	details
length	mm	13900
width	mm	2500
height	mm	3990
max lifting capacity	Kg	36000
working pressure	MPa	25
crane weight	Kg	7000
Dead weight	kg	14510
container size	Feet	20,40
Axle	PCS	3×13T FUWA
Tire	PCS	12* 11.00R20
Rim	PCS	12* 8.00×20
Landing gear	PAIR	1*JOST C200
Kingpin 3.5	PCS	1*JOST 90#
Container Twist lock	PCS	12
Leaf spring	PCS	16 Thickness*90Width *8 Pieces
frame		Q345
Main beams	2	I BEAM 500x140 ,Top flange plate14,bottom flange plate 14, web plate 8,Q345 steel plate
PLC		Both English and Chinese
Electric System		24v,7- core socket

Supper Max International Co., Ltd is one leader exporter who is specialized to produce a range of high-quality Semi Trailers, Dump Truck, Tractor Truck, Oil Tanker, Cement Mixer, and relevant spare parts and so on.
Our factory start from 1993, with nearly a decade of experience, we have a stable, professional service team, exported to South America, Australia, Africa, Middle East, Southeast Asia, Japan and other more than 90 countries and regions.
Our technology centers hire foreign engineers to ensure our products could meet the technical standards in different areas of the world and accurate grasp the demands of our customer. The PC series semi trailers are our newest develop products with characters of beautiful shape, reasonable structure, strong bearing capacity, good comprehensive performance and easy maintenance. Our company use international and domestic reliable good brand spare parts for our products, such as America FRUEHAUF, German BPW, England York, Fuwa axles and braking systems to guarantee the safe transportation.
FAQ
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q:How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q:I want to be your agent in my country , is that ok?
A:It's ok, If your quantity is big, we will consider. For the first time 50 units is ok.
Q: I want the front two tyres are bias tyre and the rear 9 tyres are radial tyres, is it ok?
A: We can make the tyres as your requirement to suit your country's need.
