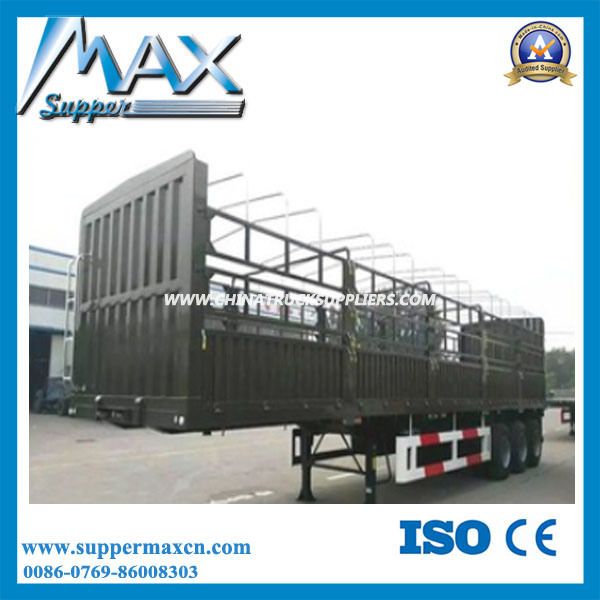

Cargo Trailer, 3 Axles 40ton Side Wall Container Trailer Sales

Specifications
1.Side Wall Semi Trailer
2. CCC&ISO certificate
3. Competitive priceabout us

We are astrong special purposeheavy dutyvehicle manufacturer in China. We can provide our customers with various trucks/trailers and spare parts for special usage.

We have passed the ISO9001-2000 attestation. It products has passed the 3C (China Compulsory Certification) authentication.

We always provide our clients with good products and perfect service .What's more, our products are 100% quality control and with absolutely competitive price. We have exported our trailers to many countries all over the world.

1. Side wall cargo box semi-trailer
2. 2axle,3axle,4axle semi trailer
3.payload 20tons-100tons

Trailer Model	Side Wall Cargo Trailer
Overall Dimension(Lx Wx H)(mm)	13000*2500*3200
Function	transport merchandise, like juice packs, rice etc.
Thickness(mm)	Bottom: 3mm, Side: 1.5mm
Loading Weight( KG)	50000
Axle Brand	BPW 13TON Axle
Axle Number	Three
Suspension system	Standard Mechanical suspension
Steel Spring	10/10/10leaf spring suspension
The material of Main beam	The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm,middle plate is 8mm.
Tire Type and quantity	12R22.512units
Traction Pin	90mm
Spare Wheel Bracket	2 pieces
Tool Box	1 Standard
Landing Gear	Standard brand 28ton external
Brake system	Dual Line braking system
Brake air chamber	Six big double air chamber
Electrical system	1. Voltage: 24v2. Receptacle: 7ways (7 wire harness)
	Tail lamp with turn signal, brake light &reflector, side lamp etc.
	One set 6-core standard Cable.
Side Guard	According to customer's requirement
Painting	Blue
Packing	Polish with wax before shipping

WHYyoutrustandchooseus?

1.Completeproductionline,fromtrailerDesigntoDelivery.

2.ISO9001:2008andCCCqualitycertificate.

3.Use100%famousbrandsparepartsinChinaforourproducts.

4.OEM/ODMservice.Justtellusyouridea,ourR&Dteamisstandingby.

If you have cooperation intention, then please send inquiries to us right now!
