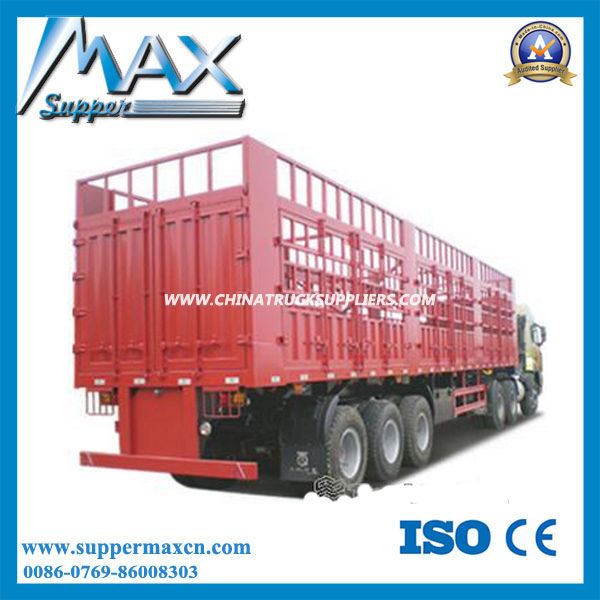

2016 Hot Sale 3axle Animal Carrier Grid Cargo Fence Semi Trailer for Sale

Fence livestock semi trailer
Specifications
1.Side Wall Semi Trailer
2. CCC&ISO certificate
3. Competitive price


1. Side wall cargo box semi-trailer
2. 2axle,3axle,4axle semi trailer
3.payload 20tons-100tons

Trailer Model		3 Axlefence Trailers
Payload		45,000kg
Dimension	Loading Length	12,500mm
	Loading Width	2,520mm
	height	1600mm
Front wall	Basket& ladder	Basket at the top,access ladder fixed at the side for easy access to basket
Side walls		Units: 5 on each side Total height:1200mm,thereof 800mm made from corrugated steel in 3mm thickness plus 400mm steel skeleton extension.
		Each side wall foldable and detachable with 3 hinges and 4 quick-locks. Each side 4 reinforced middlestanchions, removable. Chain between Each sidewall pair.
Running gear/Spring		Leaf spring suspension
		13ton axle, Fuwa brand
Wheels and Tyres		1200R20, 12pcs, Triangle brand
Thickness(mm)		Bottom: 3mm, Side: 2mm
Wheelbase(mm)		6260+1310+1310
The material of Main beam		The height of the beam is 450/500 mm, upper plate is 14mm, down plate is 16mm,middle plate is 8mm. Q345B manganese plates, automatic submerged arc welded
Side Beam		16mm channel steel ( Material is Q235steel ).
Platform plate		3mm chequered steel plate
Traction Pin		2'' or 3.5'', additional second mounting position
Rear Wall		Height:1200mm therof 800mm made from corrugated steel in 3mm thickness plus 400mm steel skeleton extension,4+2 quick-locks, rear wall foldable and detachable. upper skeleton opengs to the right side.
Securing winches and hooks		On right side:2 winches and 3 hooks On left side:3 winches and 2 hooks
Landing Gear		standard 28ton, single speed one
Brake system		Dual Line braking system, none ABS. Air vessle volume 80litre. Parking brake as spring brake.
Brake air chamber		Two double and two single chamber
Side Guard		Steel sheet mudguards with rubber mud flaps
Standard accessories		1 portable ladder fixed under the semi trailer

about us:
Supper Max International Co., Ltd is one leader exporter who is specialized to produce a range of high-quality Semi Trailers, Dump Truck, Tractor Truck, Oil Tanker, Cement Mixer, and relevant spare parts and so on.
Our factory start from 1993, with nearly a decade of experience, we have a stable, professional service team, exported to South America, Australia, Africa, Middle East, Southeast Asia, Japan and other more than 90 countries and regions.
Our technology centers hire foreign engineers to ensure our products could meet the technical standards in different areas of the world and accurate grasp the demands of our customer. The PC series semi trailers are our newest develop products with characters of beautiful shape, reasonable structure, strong bearing capacity, good comprehensive performance and easy maintenance. Our company use international and domestic reliable good brand spare parts for our products, such as America FRUEHAUF, German BPW, England York, Fuwa axles and braking systems to guarantee the safe transportation.
With towards the direction of modernization, specialization and large-scale, we've passed the ISO9001 certification, the South African SABS-3 certification, granted the TS16949 certification, this promotes our production, technology and management up to a new level.
We support you good service, payment terms, delivery time and logistics control; we are seeking distributors worldwide for more information.
WHYyoutrustandchooseus?

1.Completeproductionline,fromtrailerDesigntoDelivery.

2.ISO9001:2008andCCCqualitycertificate.

3.Use100%famousbrandsparepartsinChinaforourproducts.

4.OEM/ODMservice.Justtellusyouridea,ourR&Dteamisstandingby.


If you have cooperation intention, then please send inquiries to us right now!
