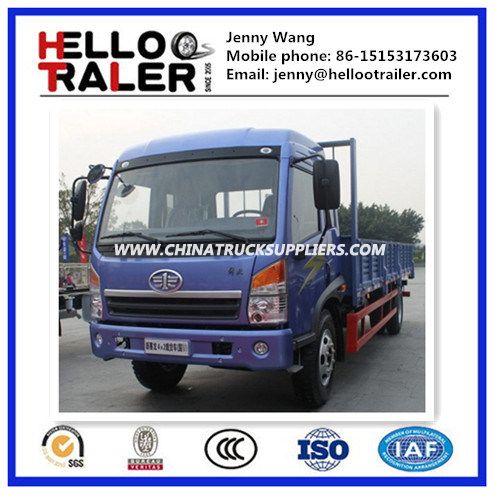

220HP 15 Ton 4X2 Cargo Truck

220HP 15 Ton Faw 4X2 Lorry Cargo truck

Capacity: 10tons.
Traction type: 4*2
Cabin: One driver and 2 helper
Engine: CA6DF3-22E3 euro III

Engine power: 162kw/220HP
Engine type: Diesel 4-stroke direct injection engine, 6-cylinder
In-line, water cooling, turbo-charging & intercooling

Displacement: 6.7L
Fuel type: Diesel
Max. Torque speed: 860N. M@1400r/min
Torque: 860N. M
Bore* stroke: 125*107
Transmission: FAST FULLER 8JS118TC 8 speeds/velocities 1 reverse
Steering system: Assisted hydraulically.

Clutch: 395
Wheel base: 5600mm
Tanker capacity: 350L
Tire: 295/80R22.5 Double coin brand( very famous brand in China )

Cargo dimension: 7600mm**2300mm*600mm
Thickness of body steel: Floor3mm side 2mm

Product Description

Emissions Rating	Euro-2	Euro-3
Air Compressor	220L/min @ 2500rpm
Lube Oil System	Full flow oil filter, centrifugal oil filter, turbocharger oil filter
Starting System	Starter: 24V 6kW Alternator: 28V 1.5kW, with built-in regulator Cold starting aid: grid-type pre-heater
Air Intake System	Dual paper element air filter with air restriction indicator
Exhaust System	Horizontal muffler with flexible pipe
Fuel Supply System	One frame-mounted primary fuel filter and two engine-mounted secondary fuel filters
Fuel Tank Capacity	200L
Cooling System	Radiator: tube-type aluminum radiator with coolant recovery tank Fan: Lightweight plastic with viscous type drive

Packaging&Shipping
Packaging:nudeorpolishwithwax.
Shipping:RollingtransportorBulkcargotransportation

OurServices
1.Replyyourinquiryin12workinghours;
2.Experiencedstaffsanswerallyourquestions;
3.Customer'sdesignisavailableforcertainproducts(OEM);
4.Sparepartsforalltypesofenginemachinerywithreasonableprice;
5.Differentbrandoftruckscanbeprovidedwithcompetitiveprice.
CompanyInformation
Shandonghellootrailerco.,ltdaprofessionalmanufacturer , integratingproduction,scientificresearch&developmentandsales.Involvinginoil/fueltankertrailer,cementbulktrailer,tankertruckandconcretemixertruck,trailers,semi-ailers,tractorhead,engineeringmachineryandtrailerparts.Withhighstandardmachineryandautomaticequipment,powerfulR&Dteamandelitesalesteam,wehavebuiltlongbusinessrelationshipswithmanyworldfamousenterprisessuchasSINOTRUK.Owingtothematureafter-salessystem,wecanmeetdifferentneedsofcustomers.
