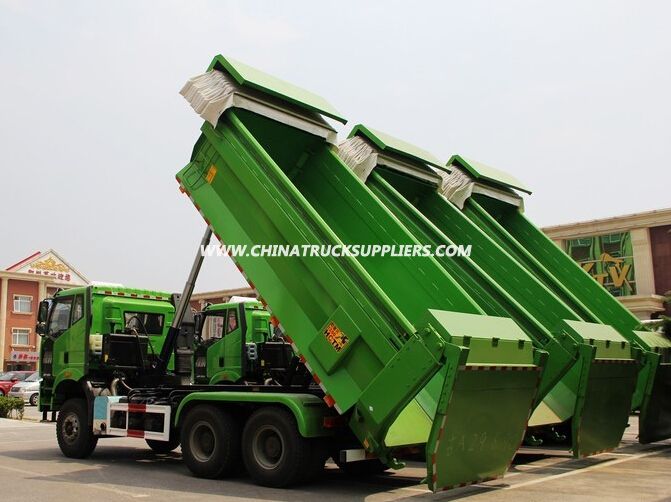

FAW 350HP 10 Wheelers Heavy Lorry Truck 30 Ton Heavy Dumper Truck

Product Description
1. JIEFANG FAW 6x4 tractor truck for sales
2. European technology WEICHAI engine
3. FAST transmission (Fuller technology)
4. Good price and performance
5. Can be designed according to your demand
6. Easy maintainence

Main Technical Parameter Heavy Duty Dumper Truck
Product Model	CA3252P2K2T1A1 Faw Dump Truck 15 Ton	Product Brand	CLW
Wheelbase(mm)	3300+1350	Overall Dimension (L*W*H)(mm)	7768×2490×3090
Front/ rear suspension(mm)	1418/1600	Front/Rear tread(mm)	2020 / 1830
Gross weight (kg)	24950	Axle number	3
Payload(kg)	12555	Body inner Dimension (L*W*H)(mm	4800×2300×1500
Curb weight(kg)	12400	Front/Rear axle load(Kg)	6975/17975(rear double axle combined)
Approach/ departure angle ( ° )	25/24	Max Speed (km/h)	75
Cab capacity	3	Cab Type	flat head
Chassis Technical Parameter
Chassis Model:	CA3252P2K2BT1A1	Chassis manufacturer:	China No 1 Automobile Group Co. Ltd
Gear Box	Fast 9JS135 (with 9 forward and 1 reverse )	Transmission type:	Manual
Steering Type	LHD(Power steering)	Traction Type:	6*4
frame type	strengthen	Rear axle	300
Brake System	Air brake
Leaf Spring number:	11/12	Tire size/type	11.00-20,11.00R20,12.00-20,12.00R20R
Engine specification
Engine Model:	CA6DL2-33	Engine Brand	China No 1 Automobile Group Co. Ltd
Fuel type:	Diesel	Displacement(ml)	8600
Emission stand	Euro 3	Power(kw)	246(335hp)
Warranty	12 months, from the date of supply
Remarks	24V Electric system, T lifting, electrically hydraulic operation control
	load Capacity:16m 3 ,15 tons
	Tippingtype: Fronttippingtype ,rear dump type
	Material: carbon steel, thicknessofbodysteel(mm):floor8 side&back 6

Packaging & Shipping
1.By ro-ro
2 By cargo ship
Ship time :30 days after get the 30% deposit
Packaging:Nude or acoording to customers' demand

Our Service:

1. Quality Inspection of Chengli Truck:
Before truck delivery, we can supply inspection certificate issued by 3rd party, such as BV, Intertek, etc.
2. Spare Parts of Chengli Truck:
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. only charge cost price for customer convenience.
3. Warranty of Chengli Truck:
One year's free warranty for major 3 components, includingEngine,Gearbox,Axles.
4. After Sales Service of Chengli Truck:
Email & Phone call tracking for each truck on timely manners, also possible engineer
maintenace in customer's Country.
