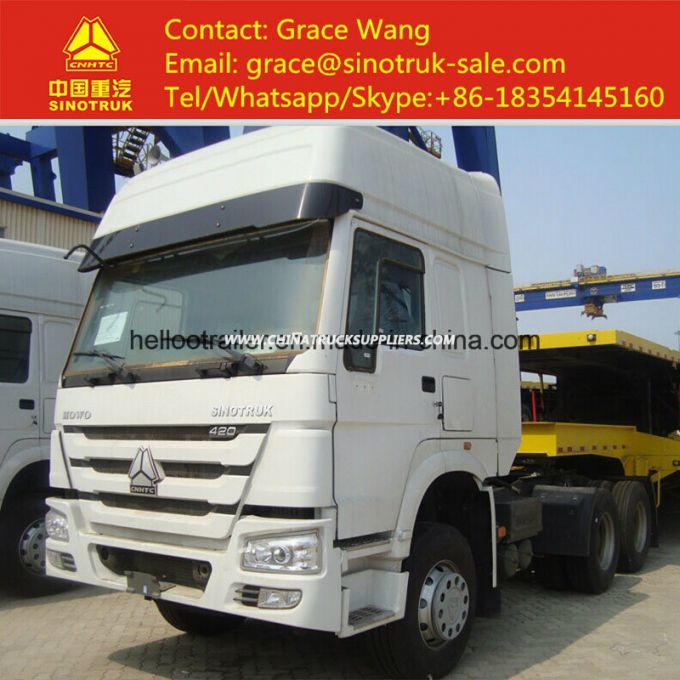

Sinotruk HOWO 6*4 Tractor Head Truck Trailer Truck Head

Product Description

HOWO 6x4 371HP tractor

1. 4x2, 6x4 truck head (optional)

2. Heavy duty




Technical parameters

Model	ZZ4257M3847V
Drive type	6x4, RHD
Engine	WD615.47
Rated power	371 HP
Emission standard	EURO II
Loading capacity	20 m3
Cab	HW76, sleeper with A/C
Tyres xQuantity	12.00R22.5 tubless tyres x11 pcs (one spare tyre)
Steering	ZF8118
Transmission	HW15710
Front axle	HF9
Rear axle	16/27 °

Weight Parameter	Complete Vehicle Kerb Mass(kg)		12300
	Maxim Umperissiblegrossladen Weight(kg)		25000
	Gross Combination Weight(kg)
Dimension Parameter	External Dimensions(mm)	Length	8585,8665
		Wide	2496
		High	3490
	wheelbase(mm)		3825+1350
	Minimum Ground Clearance(mm)		315
Performance Parameter	Maximum Speed(km/h)		78
	Economical Speed(km/h)		58
	Maximum Gradability(%)		58
	Turning diameter(m)		17.1
Recommended	Engine	Engine Type	D10.27-31,D10.30-31,WD615.92E,WD615.97E
		Rated power(kW)/Rev(r/min)	196/1900,211/1900,194/2200,209/2200
		Maximum Torque(N*m)/Rev(r/min)	1190/1200-1500,1340/1200-1500,1100/1100-1600,1250/1200-1600
	Gear-box		HW10,HW12,HW16
	Clutch(mm)		430
	Rear Axle	Type	AC16
		Speed Ratio	4.77,5.45
	Oil Box(L)		300
	Chassis Cross-section(mm)		300
	Suspension(Front,Back)		10/12,10/-
	Tyre		11.00-20,12.00-20,11.00R20,12.00R20

Packaging &Shipping

1. Package: Nude and waxed by bulk cargo ship or Ro-Ro ship or flet deck.
We use best transportation solution to save your sea freight cost.

2. Delivery time: 30 days after deposit
