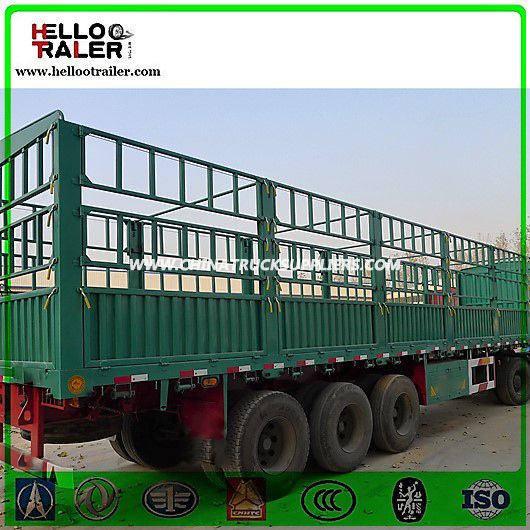

Stake Semi Trailer with Best Price

Trailer Model	3 Axle Livestock Trailers
Payload	45,000kg
Dimension	12500mm*2520mm*1600mm
Basket &ladder	Basket at the top,access ladder fixed at the side for easy access to basket
Side walls	Units: 5on each side Total height:1200mm,thereof 800mm made from corrugated steel in 3mm thickness plus 400mm steel skeleton extension
	Each side wall foldable and detachable with 3hinges and 4quick-locks. Each side 4reinforced middlestanchions, removable. Chain between Each sidewall pair
Running gear/Spring	Leaf spring suspension
Wheels and Tyres	1200R20, 12pcs, Triangle brand
Thickness(mm)	Bottom: 3mm, Side: 2mm
Wheelbase(mm)	6260+1310+1310
The Material of Main beam	The height of the beam is 450/500 mm, upper plate is 14mm, down plate is 16mm,middle plate is 8mm. Q345B manganese plates, automatic submerged arc welded
Side Beam	16mm channel steel (Material is Q235steel )
Platform plate	3mm chequered steel plate
Traction Pin	2'' or 3.5'', additional second mounting position
Rear Wall	Height:1200mm therof 800mm made from corrugated steel in 3mm thickness plus 400mm steel skeleton extension,4+2 quick-locks, rear wall foldable and detachable. upper skeleton opengs to the right side.
Securing Winches And Hooks	On right side:2 winches and 3hooks On left side:3 winches and 2hooks
Landing Gear	Standard 28ton, single speed one
Brake System	Dual Line braking system, none ABS. Air vessle volume 80litre. Parking brake as spring brake
Brake Air Chamber	Two double and two single chamber
Side Guard	Steel sheet mudguards with rubber mud flaps
Standard Accessories	1 portable ladder fixed under the semi trailer

Brief Introduction To Our Factory

Established in 2005, Shandong Helloo Trailer Co.,Ltdis aprofessional manufacturer. Involving in oil/fuel tanker trailer, cement bulk trailer, Tanker truck and concrete mixer truck, trailers, semi-trailers, tractor head, engineering machinery and trailer parts, with 50million dollars sales annually and revenue almost 600 million RMB ,we are aleading provider in this industry.

Our Authorized Certificate: CCC(China Compulsory Certification)
WMI (World Manufacture)
BV (Bureau Veritas)
ISO9001

Our Services

1.Warranty

we have one year warranty for main parts, such as Engine, Gearbox, Chassis, Hydraulic Lifting System,we will provide free spare

2. Maintenance

The first maintenance should be taken after 2000KMs or 50working hours,we will provide you one book of the maintenance with all of our truck .

3.Payment term:

A.30 %TT for the deposit ,the balance paid before shipment.
B.100% irrevocable L/C at sight

4.Delivery time:

15 days after receiving the 30% deposit orL/C at sight

Packaging &Shipping

Nude andWax, shipped in bulk or in Container.
We always use the best packaging solution to decrease transportation cost and give you the very competitive price.
Container transportaion will save you plenty of freight cost.

After-Sales Service

1. 12months for 3key parts (engine, transmission, axle).
2. Tracking service time: lifelong.
3. Third-party service for overseas client.
4. Use the steps Description
5. Parts supply on time

FAQ

1. Q: Are you amanufacturer or trading company?
A: We are manufacturer.

2. Q: What about your products quality?
A:"Quality is priority." We always attach great importance to quality controlling from the very beginning.

3.Q:What payment do you accept?
A: T/T, L/C;

4.Q:What is the MOQ of your products?
A: 1set.

SHANDONG HELLOO TRAILER CO.,LTD.
Address: Room 12B01,2th Building,Yinzuojingdu BLDG.,Jinan,China.

Mobile: +86-182-5311-2976
Please send your Inquiry without hesitate if you are interested in our fence cargo trailer.
