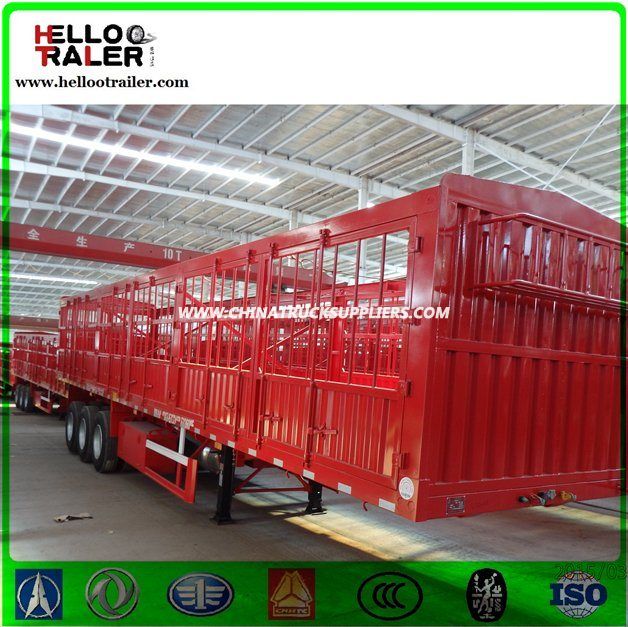

3 Axle Livestock Trailers, Fence Semi Trailer

Trailer Model	3 Axle Livestock Trailers
Payload	45,000kg
Dimension	12500mm*2520mm*1600mm
Basket& ladder	Basket at the top,access ladder fixed at the side for easy access to basket
Side walls	Units: 5 on each side Total height:1200mm,thereof 800mm made from corrugated steel in 3mm thickness plus 400mm steel skeleton extension
	Each side wall foldable and detachable with 3 hinges and 4 quick-locks. Each side 4 reinforced middlestanchions, removable. Chain between Each sidewall pair
Running gear/Spring	Leaf spring suspension
Wheels and Tyres	1200R20, 12pcs, Triangle brand
Thickness(mm)	Bottom: 3mm, Side: 2mm
Wheelbase(mm)	6260+1310+1310
The Material of Main beam	The height of the beam is 450/500 mm, upper plate is 14mm, down plate is 16mm,middle plate is 8mm. Q345B manganese plates, automatic submerged arc welded
Side Beam	16mm channel steel ( Material is Q235steel )
Platform plate	3mm chequered steel plate
Traction Pin	2'' or 3.5'', additional second mounting position
Rear Wall	Height:1200mm therof 800mm made from corrugated steel in 3mm thickness plus 400mm steel skeleton extension,4+2 quick-locks, rear wall foldable and detachable. upper skeleton opengs to the right side.
Securing Winches And Hooks	On right side:2 winches and 3 hooks On left side:3 winches and 2 hooks
Landing Gear	Standard 28ton, single speed one
BrakeSystem	Dual Line braking system, none ABS. Air vessle volume 80litre. Parking brake as spring brake
Brake Air Chamber	Two double and two single chamber
Side Guard	Steel sheet mudguards with rubber mud flaps
Standard Accessories	1 portable ladder fixed under the semi trailer

Brief Introduction To Our Factory
Establishedin2005,Shandong Helloo Trailer Co.,Ltd isaprofessionalmanufacturer.Involvinginoil/fueltankertrailer,cementbulktrailer,tankertruckandconcretemixertruck,trailers,semi-trailers,tractorhead,engineeringmachineryandtrailerparts,with50milliondollarssalesannuallyandrevenuealmost600millionRMB,wearealeadingproviderinthisindustry.

Other Product


Our Services
1. Reply your inquiry in 12 working hours;
2. Experienced staffs answer all your questions;
3. Customer's design is available for certain products(OEM);
4. Spare parts for all types of engine machinery with reasonable price;
5. Different brand of trucks can be provided with competitive price.
Packaging&Shipping
Packaging:nude or polish with wax.
Shipping:Rolling transport or Bulk cargo transportation
Delivery time:15 days after receiving the 30% deposit or L/C at sigh

After-SalesService
1. 12monthsfor3keyparts(engine,transmission,axle).
2. Trackingservicetime:lifelong.
3. Third-partyserviceforoverseasclient.
4. UsethestepsDescription
5. Partssupplyontime

FAQ
1. Q: Are you a manufacturer or trading company?
A: We are manufacturer.
2. Q: What about your products quality?
A:"Quality is priority." We always attach great importance to quality controlling from the very beginning.
3.Q:What payment do you accept?
A: T/T, L/C;
4.Q:What is the MOQ of your products?
A: 1 set.
