3 Axles BPW Axles 40FT Container Flatbed Semi Trailer

Product pictures :

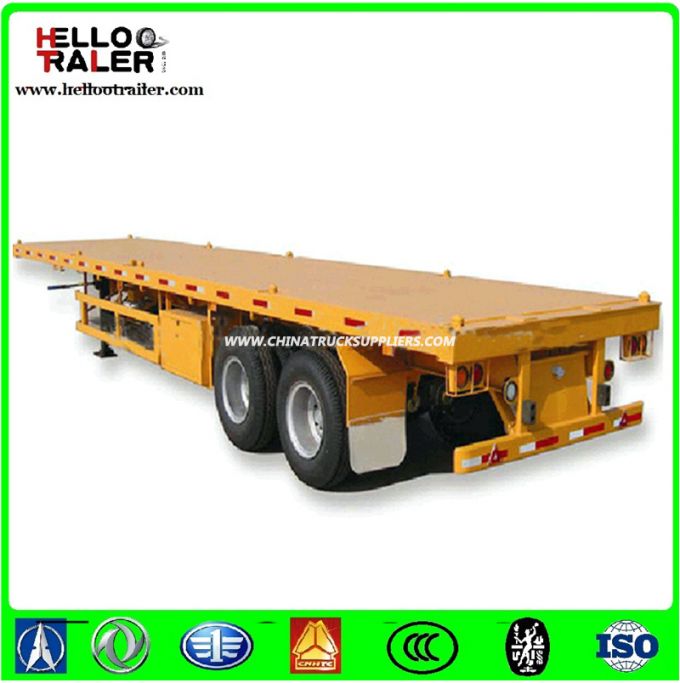

3 BPW axles 40FT Container Flatbed Semi Trailer
3 axles 40ft flatbed semi trailer
40 Feet Trailer


Detailed Specification :

Trailer Model	3 Axle Flatbed Semi Trailer
Function	Carry 1*40ft /2*20ft container or others
Overall Dimension (Lx Wx H)(mm)	12500*3000*1550
Tare Weight(KG)	6350
Loading Weight( KG)	40000
Total Weight(KG)	66350
Axle Brand	13 Tons
Axle Number	Three
Wheelbase(mm)	7450+1310+1310
Suspension system	Leaf Spring Suspension
Material of Main beam	The height of the beam is 500 mm, upper plate is 14mm, down plate is 16mm, middle plate is 8mm.
Platform plate	3mm diamond plate
Tire Type and quantity	12R22.512units
Traction Pin	50mm or 90mm
Spare Wheel Bracket	2 pieces
Tool Box	1 Standard
Landing Gear	28ton standard
Brake system	Dual Line braking system, none ABS
Brake air chamber	Two double and two single chamber
Electrical system	1. Voltage: 24v2. Receptacle: 7ways (7 wire harness)
	Tail lamp with turn signal, brake light &reflector, side lamp etc.
	One set 6-core standard Cable.
Painting	Color as customer's requirement
Packing	NUDE, Polish with wax before shipping

Packaging &Shipping :

1. Container shipment :2 sets put into 40HQ container, need cut down trailer tail.

2. Bulk shipment: Wax spray, put on the ship deck.

3. Ro-ro shipment.


Trade matters :

1. Payment terms:

T/T 30% deposit, T/T 70% balanced before delivery.

L/C at sight.

2. Delivery time: 10-25 days after deposit.

3. MOQ: 1unit.

4.Provide spare parts anytime.
