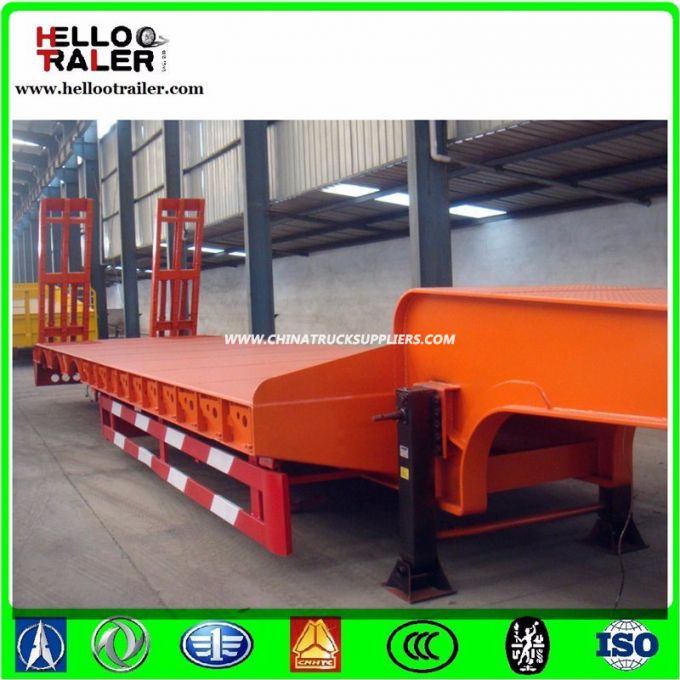

3 Axle 60ton Vehicle Transportat Low Bed Trailer

Hot Sale 3 axle 60ton Transportation vehicle Low Bed Trailer

Main specification
Type	3 axles 60ton best price low bed trailer for sale
Model number	SCD9400TDP
Function	Transport heavy machine
Overall dimension	13000x3000x1500mm
Working plate	9000x3000x1500mm
Loading weight	60000kg
Main beam	Material is Q345B, The height of the beam is 500 mm, upper plate is16mm,down plate is 18mm,middle plate is 10mm.
Side beam	16mm channel steel
Chassis
Traction pin	JOST Brand, optional 2" or 3.5"
Land gear	Standard 28ton
Axle	13ton for each axle
Axle brand	FUWA Brand axle three axles
Suspension type	3 axle mechanical suspension
Laeaf spring	10/10/10 90mm*13mm*10pcs
Rim	8.5-22.5 12pcs
Tire	1100R20 triangle brand
Tire quantity	12 units
frame
platform thickness	3mm
Accessories
valve	WABCO VALVE
Brake Chamber	6 big chamber brake system
Tool box	1 unit 1m*0.5m*0.5m
Spare wheel carrier	2 units
Side marker lamp	LED type
Voltage	24V
Receptacle	7ways (7 wire harness)
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Packing & Shipping :
1.Bulk cargo transportation :
2.Container shippment
Naked, waxing, shipped by bulk carrier or by container, according to the size.

Company information

Shandong hellootrailer co.,ltd is one of the qualified manufacturers of various trailers, like lowbed semi-trailer, flatbed semi-trailer, cargo trailer, etc. Integrated production, scientific research&development and professional sales teams, all those advantages
could provide full service of trailers, semitrailers, tractor head, Dump Truck, engineering machinery and
trailer parts.
With high standard machinery and automatic equipment, powerful R&D team and elite sales team, We have built long business relationship with many world famous enterprises such as SINOTRUK, SHACMAN, FAW, etc.
