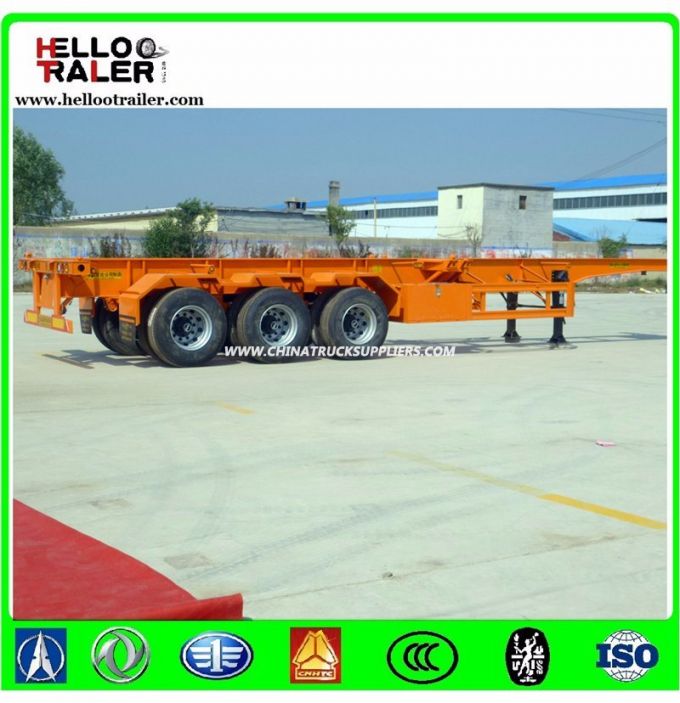

3 Axle Skeleton Container Trailer for 40/20FT Container Transportation

50ton customized Flatbed Container Trailer skeleton with 28t landing gear
Specification,

Trailer Model					40FT Container Skeletal Trailer
Function					1x40ft container or 2x20ft container. Or carry other stuff.
Overall Dimension					12500*2500*1550mm
Payload					40000kg
Total Weight					50000kg
Specification:
Axle Brand					FUWA Brand 13TON Axle, Optional BPW
	Axle number			three
	Wheelbase(mm)			6260+1310+1310
	Suspension system			Mechanical Suspension
	Steel Spring			10/10/10 leaf spring suspension
	Container Twist Locks			12pieces
	Traction Pin			90mm/50mm
	Tire specs.			12R22.5 12units
	Number of Tire			13 pieces
	Spare Wheel Bracket			2 piece
frame: (specs. And materials)					Main beam height is 500mm
		frame Beam		Upper plate is 14mm, down plate is 16mm, middle plate is 8 mm.
		Platform bed		3mm diamond steel plate
		Landing Gear		Chinese brand 28 ton
		Brake system		Dual Line braking system , optional ABS.
		Brake Chamber		Four double and two single chamber, optional WABCO
Electrical system:
Cable					One set 6-core standard Cable.
			Voltage	24V
			Receptacle	7 ways(7 wire harness)
Light:					Tail lamp with turn signal, brake light & reflector, side lamp etc.

Packing & Shipping :
1.Bulk cargo transportation :
2.Container shippment
Naked, waxing, shipped by bulk carrier or by container, according to the size.

Company information
Shandong hellootrailer co.,ltd is one of the qualified manufacturers of various trailers, like lowbed semi-trailer, flatbed semi-trailer, cargo trailer, etc. Integrated production, scientific research&development and professional sales teams, all those advantages
could provide full service of trailers, semitrailers, tractor head, Dump Truck, engineering machinery and
trailer parts.
With high standard machinery and automatic equipment, powerful R&D team and elite sales team, We have built long business relationship with many world famous enterprises such as SINOTRUK, SHACMAN, FAW, etc.
