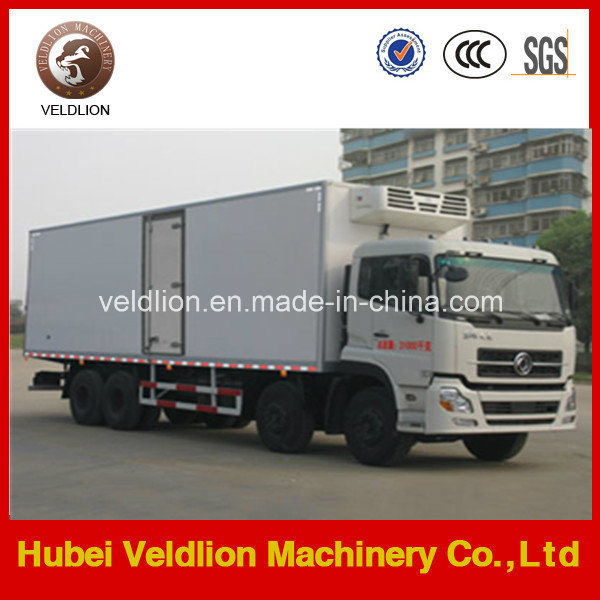

Dongfeng 8X4 Refrigerator Truck for Frozen Seafood

Part 1: Features
----------Changan chassis ensures perfect driving performance
----------Changan engine,American brand ,super power ,realiable performance
----------High quality temperature preservation van body
----------Excellent Chiese brand or imported brand refrigerator
----------Prolonged service life

Part 2: Specification: Dongfeng 8x4 Refrigerator truck

Chassis	DFL1311
DriveModel	8x4
Wheelbase(mm)	1950+4500+1300
Engine	ISLe315
HorsePower(HP)	315HP
Emissionstandard	EuroIII
Gearbox	12forwards&1reverse
Clutch	Reinforceddiaphragmclutch
SteeringGear	powerassistancesteering
Brakes	dualcircuitcompressedairbrake

VanParaments

Material	1.Fibersteeldoubledeck 2.with8CMthicknesspolyurethane 3.Fibersteel/Stainlesssteel
BoxDimension	8500*2300*2300mm
Thickness	10CM
Temperature	-18ºCor-5ºCasyourchoice

Truckrefrigerator

Unitmodel	F800D
RefrigeratorType	HUATAI
Applicabletemperature(ºC)	-20-0
Applicablevolume(m3)	33-42
RefrigerationUnitVoltage	DC12/24V
Refrigerant	R404A
Condenser dimension	1565*555*415
evaporatordimension	1700*644*230
StandbyPowerBox	740*488*392

Part 3: Fuction
--------Two type of power drive ways :one is power by vechiles engine through PTO ,the other is driven by separated carried power unit ;
--------Cooling systems could be Chiese brand or famous imported brand;
--------Temperature could be chosen as fresh or frozen;
--------The box surface material could be fibergladd ,aluminum or stainless steel ,the padding material os polyurethane foam that has super temperature preservation ability;


Optional : 1.box material could be aluminum or stainless steel 2. Temperature date logger ,temperature alarm ,
3. extra side door ; 4 Slide rail and meat hook for special use ;

Part 4: Our company
Hubei veldlion machinery co., ltd ,which is appointed by the ministry of industry and information technology of china, is abig manufacturer producing all kinds of special trucks.It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation.What's more, it has roundly passed the certificaton of iso 9001-2008 and the 3c certification(china compulsory certification) and other certifications that export needed.

Our company can design and produce many kinds of special trucks accurately as your request.Also own independent export right, wit amount of clients overseas, such as the u.N., sudan, nigeria, north america, west africa, congo, vietnam ghana, kazakhstan etc.We strives for the survival by the quality and credit standing is the guarantee of our success.

Our Advantages
Why choose us?
---Experience
---10 years experience of production,sales,research and development in the field of special trucks.

----Specialization
----We can produce according to your demand, the material,the size, the color and the logo is optional for you.

----Good quality
----Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.

----Chassis supply
----We have avery good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.
----Production supply capacity

----Company scale
----More than 600 employees with 500 acres factory, total asset 2 Million.
We manufacture the truck as soon as possible once your order /confirm/ied.And for the stock, we can delivery it immediately.

Part 5:Packaging &Shipping
Thick wax polished on products before shipping to protect.
Use container, RORO/bulk ship or others as your requirement.
We provide transportation insurance to guarantee the new and great condition of products for customers
