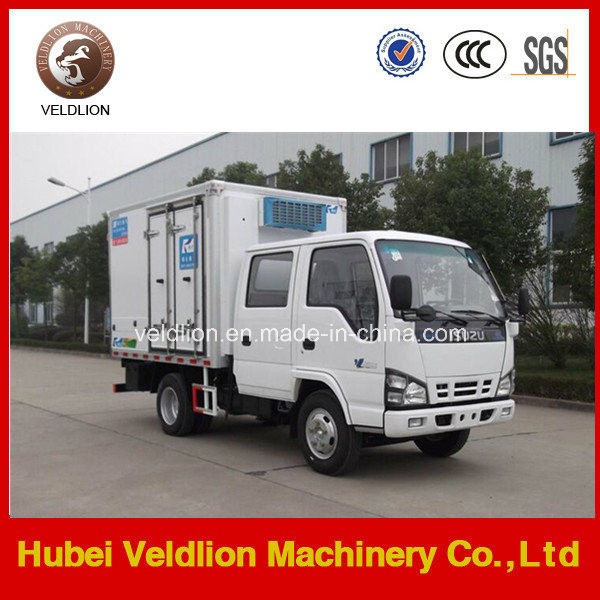

Isuzu 100p 4ton Refrigerator Truck

Part 1: Features
----------ISUZU chassis ensures perfect driving performance
----------ISUZU engine,American brand ,super power ,realiable performance
----------High quality temperature preservation van body
----------Excellent Chiese brand or imported brand refrigerator
----------Prolonged service life

Part 2: Specification: 4 TON ISUZU 100P Refrigerator truck

Main specification	Chassis brand	/	ISUZU
	Chassis model	/	QL10403
	Overall dimension(L*W*H)	mm	5995x1910x790
	The size of the cargo box(L*W*H)	mm	4100x1740x1750
	Total weight	kg	4475
	Curb weight	kg	2850
	Rated Loading capacity	kg	1495
Chassis	Drive modle	/	4x2 left hand drive
	Axle loading (front/rear)	kg	1800/2675
	Wheel base	mm	3360
	Front/rear suspension	mm	1015/1620
	Front/rear track	mm	1385
	Spring number	/	1425
	Tyre size & number	/	7.00-15
	Max speed	km/h	95
Engine	Manufacturer	/	ISUZU
	Model	/	4JB1CN
	Engine Type	/	Diesel , 4 cylinder
	Horse power	kw/hp	72/98
	Displacement	ml	2771
	Emission	/	Euro 4
Cargo box	Overall dimension(L*W*H)	/	4200x1900x1850
	Material	/	color plate in the surface, inside foam
	Cargo Thickness	mm	8
	Refrigerator model	/	DT-150S or KBL30
	Working Temperature:	°	-18

Part 3: Fuction
--------Two type of power drive ways :one is power by vechiles engine through PTO ,the other is driven by separated carried power unit ;
--------Cooling systems could be Chiese brand or famous imported brand;
--------Temperature could be chosen as fresh or frozen;
--------The box surface material could be fibergladd ,aluminum or stainless steel ,the padding material os polyurethane foam that has super temperature preservation ability;


Optional : 1.box material could be aluminum or stainless steel 2. Temperature date logger ,temperature alarm ,
3. extra side door ; 4 Slide rail and meat hook for special use ;

Part 4: Our company
Hubei veldlion machinery co., ltd ,which is appointed by the ministry of industry and information technology of china, is abig manufacturer producing all kinds of special trucks.It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation.What's more, it has roundly passed the certificaton of iso 9001-2008 and the 3c certification(china compulsory certification) and other certifications that export needed.

Our company can design and produce many kinds of special trucks accurately as your request.Also own independent export right, wit amount of clients overseas, such as the u.N., sudan, nigeria, north america, west africa, congo, vietnam ghana, kazakhstan etc.We strives for the survival by the quality and credit standing is the guarantee of our success.

Our Advantages
Why choose us?
---Experience
---10 years experience of production,sales,research and development in the field of special trucks.

----Specialization
----We can produce according to your demand, the material,the size, the color and the logo is optional for you.

----Good quality
----Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.

----Chassis supply
----We have avery good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.
----Production supply capacity

----Company scale
----More than 600 employees with 500 acres factory, total asset 2 Million.
We manufacture the truck as soon as possible once your order /confirm/ied.And for the stock, we can delivery it immediately.

Part 5:Packaging &Shipping
Thick wax polished on products before shipping to protect.
Use container, RORO/bulk ship or others as your requirement.
We provide transportation insurance to guarantee the new and great condition of products for customers
