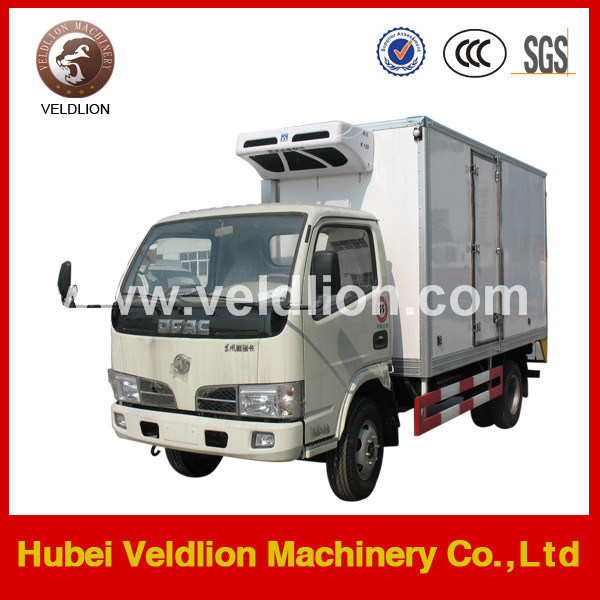

Truck Refrigerator Food

Quick Details

Transmission Type: Manual
Condition: New
Horsepower: 150 - 250HP
Emission Standard: Euro 3
Fuel Type: Diesel
Dimensions (L x W x H) (mm): 9990*2530*3820
Box Dimensions (L x W x H) (mm): 7410*2310*2310
Temperature Range: 0C- below 23C
Gross Vehicle Weight: 12495
Colour: Can be chosen by customer

ITEM	DFL5122G 4X2 Refrigerator truck
Outside dimension of truck(mm)	length	9990
	width	2530
	height(unload)	3820
Dimension of van body(mm)	length	7410
	width	2310
	height	2310
Volume of box(m3)	40
G. V. W(kg)	12495
Vehicle total weight(kg)	6400
Rated payload(kg)	5900
Front suspension/rear suspension(mm)	1430/2960
Approach angle/departure angle(° )	9.20
Max. Speed(km/h)	90
Chassis model	DFL5120XXYB1
Engine model	ISDe180 30 Euro III Dongfeng Cummins diesel engine

CHAISSIS DFL5120XXYB1 Specification
Dimension (mm)	Length	9790
	Width	2370
	Height	2760, 3400
Wheelbase (mm)	5600
Tyres	9.00-20,
GVW(kg)	12495
Maximum driving speed (km/h)	90
Tread: (mm)	Tread at front	1880
	Tread at rear	1800, 1860
Approach/Departure angle(° )	9.20
Front/Rear suspension(mm)	1430/2960
Tyre number	6
Axle number	2
