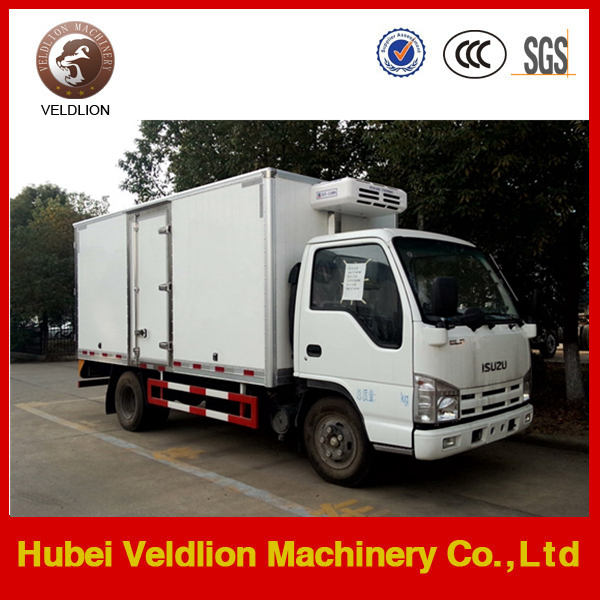

4X2 Isuzu 5t Freezer Food Transport Box Truck

1. Quick Details
Transmission Type: Manual
Condition: New
Horsepower: 150 - 250HP
Emission Standard: Euro 3
Fuel Type: Diesel
Dimensions (L x W x H) (mm): 9990*2530*3820
Box Dimensions (L x W x H) (mm): 7410*2310*2310
Temperature Range: 0C- below 23C
Gross Vehicle Weight: 12495
Colour: Can be chosen by customer

We also supply you the other type of HOWO, 4*2, 4*4, 6*2, 6*4, 6*6, 8*4 different engine power(270HP, 290HP, 310HP, 330HP, 350HP, 380HP, and 420HP), EURO II, and EURO III Dump Truck. We could choose the right truck for you and confirm that is your good assistant in your work.









2. Company introduce
HUBEI VELDLION MACHINERY CO., Ltd is an authorized Special Trucks manufacturer. We are specialized in the production of a variety of special-purpose vehicles.
Creating value for our customers is our company's concept. Welcome to enquiry from us, Let's our sales team make you more great in this field.
Our main products:
1. Heavy duty truck,
2. Fire engine truck
3. Truck mounted with crane
4. Dump truck
5. Water Truck,
6. Fuel tanker,
7. Van truck, insulated truck, refrigeration truck
8. Fecal suction truck, Sewage Suction Truck,
9. Concrete mixer truck,
10. High-altitude operation truck,
11. Self-loading Garbage Truck, garbage compactor truck, sealed garbage truck,
12. Bulk Cement Truck,
13. Chemical liquid tank truck

Loading capacity		4-5TON	7-8TON
Main specification	Chassis brand	ISUZU	ISUZU
	Chassis model	QL10403	QL1070
	Overall dimension(L*W*H)	5995x1910x2790 mm	6950x2130x3090 mm
	The size of the cargo box(L*W*H)	4100x1740x1750	5040×1900×1880 mm
	Total weight	4475	7300 kg
	Curb weight	2850 kg	3690 kg
	Rated Loading capacity	1495 kg	3480 kg
Chassis	Drive modle	4x2 left hand drive	4x2 left hand drive
	Axle loading (front/rear)	1800/2675 kg	2580/4720 kg
	Wheel base	3360 mm	3815 mm
	Front/rear suspension	1015/1620 mm	1015/1015 mm
	Front/rear track	1385 mm	1504/1525 mm
	Spring number	1425	8/6+5
	Tyre size & number	7.00-16	7.00-16
	Max speed	95 km/h	95
Engine	Manufacturer	ISUZU	ISUZU
	Model	4JB1CN	4KH1-TCG40
	Engine Type	Diesel , 4 cylinder	Diesel
	Horse power	72/98 kw/hp	88/120 kw/hp
	Displacement	2771 ml	2999 ml
	Emission	Euro 4	Euro 4
Cargo box	Overall dimension(L*W*H)	4200x1900x1850 mm	5040×1900×1880 mm
	Material	color plate in the surface, inside foam	color plate in the surface, inside foam
	Cargo Thickness	8 mm	8 mm
	Refrigerator model	DT-150S or KBL30	DT-230 or KBL50
	Working Temperature:	-18°	-18°
